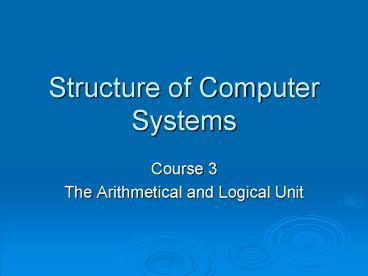

Structure of Computer Systems

1
Structure of Computer Systems

• Course 3
• The Arithmetical and Logical Unit

2
ALU- Arithmetical and Logical Unit

• Purpose computes arithmetical and logical
  operations
• arithmetical
• basic operations add, subtract, multiply,
  division, modulo
• special functions exponential, logarithm, sine,
  cosine, tangent, atangent, etc.
• logical
• AND, OR, NOT, inclusiveOR, exclusiceOR
• Types of arithmetic units
• integer arithmetic
• floating point arithmetic (e.g. Intels
  co-processor)
• signal processing arithmetic (e.g. with
  saturation MMX)
• parallel arithmetic (MMX - integer, SSE2-
  floating point)

3
Addition

• most used operation
• all the other arithmetic operations are based on
  addition
• subtract adding the complement
• multiply repetitive adding
• division repetitive subtraction and adding
• efficient implementation of adding operation
• influence directly all the other operations
• efficiency speed and cost (complexity)

4
Addition

• Basic (full) adder unit one bit adder
• inputs xi, yi, Ci
• outputs
• Si xi ?yi ?Ci
• Ci xiyi (xi ? yi) Ci-1
• delay 3 gate_delay

5
n bit adder with ripple carry

• n bit adder n (1 bit full adder)
• delay n3gate_delay
• example
• n32 gate_delay 10 ns (TTL gate) gt
• delay 32310ns 1000 ns gt fclk_max 1/1000
  ns 106 1MHz !!!

6
Subtract

• subtract adding with the second numbers 2th
  complement
• n bit add and subtract
• Add/Sub 0 gt adding
• Add/Sub 1 gt subtraction

7
Sequence of steps for adding
Step BUS SEL LD_A/ LD_B/ Add/Sub Wr_m/ Result
1 X 1 0 1 - 1 AltX
2 Y 0 1 0 0 1 BltY
3 - 0 0 1 0 1 AltXY
4 Z - 1 1 - 0 ZltXY
8
Improving the Adder Carry Look-ahead Adder

• Issue the delay time of the carry
• Solution direct generation on carry gt Carry
  lookahead adder
• Ci xiyi (xi ? yi) Ci-1 gi pici-1
• where gi carry generator
• pi carry propagator
• C0 x0y0 (x0 ?y0)C-1 g0 p0C-1
• C1 x1y1 (x1 ?y1)C0 g1 p1C0 g1 p1(g0
  p0C-1) g1 p1g0 p1p0C-1
• C2 x2y2 (x2 ?y2)C1 g2 p2C1 g2 p2g1
  p1(g0 p0C-1)
• g2 p2g1 p2p1g0 p2p1p0C-1
• ......
• Ci f(g0, g1, ... gi, p0, p1, ... pi, C-1)
  f(x0, x1, ... xi, y0, y1, ... yi, C-1)
• Conclusion Ci is obtained directly by combining
  ONLY input signals
• Drawbacks
• - the circuits complexity grows exponentially
  with the number of bits (n)
• - it requires gates with a lot of input signals
• - delayideal 2gate_delay

9
Carry Look-ahead Adder - CLU

• generates a result in a shorter time
• CLU is feasible for 4 bits the gate inputs
  number is limited
• it can be extended putting together 4 bit adders

10
Carry Look-ahead Adder

• extension from 4 bits to 16 bits
• Generators and propagators for blocks of bits
  from i to k
• Group generate gi,k
• Group propagate pi,k
• For a block of 4 bits
• G0,3 g3 p3 g2 p3 p2 g1 p3 p2 p1 g0
• P0,3 p3 p2 p1 p0
• Using this notation we obtain block caries C3,
  C7, C11, C15
• C3 G0,3 P0,3 C-1 C7 G4,7 P4,7 C3 G4,7
  P4,7(G0,3 P0,3 C-1 )

11
Carry Look-ahead Adder

• 16 bit carry look-ahead adder made of
• 4 units of 4 bit carry look-ahead adders
• one 4 bit carry look-ahead unit

12
Carry select adder

• Extra hardware to speed-up the adding
• Avoids complex carry look-ahead unit

13
Serial adder

• Adding two sequences of bits with a 1 bit adder

An-1 .A2 A1 A0
Ai
Si
shift entry
1 bit adder
Sn-1 .S2 S1 S0
Bi
Ci
shift entry
Ci-1
Bn-1 .B2 B1 B0
Q D
clk
Clk
14
BCD adder

• adding numbers in BCD (binary coded decimal)
  representation
• a correction is needed
• if the figure is not a decimal
• If a carry is generated to the next group of 4
  bits (to the next decimal figure)
• solution adding 6 (both cases)
• Example

15
Multiplication

• Multiply repeated adding

Modified multiply 00000000
Acumulator (AC) 0 ? 0000000 0 shift
right 1 ? 1100 adding
0001100 0 partial product
000110 00 shift right. 0 ?
00011 000 shift right 1 ? 1100
adding 1111 000 final
product Solution shift the partial result to
the right and put the product in the same place
Advantages - we need just an n bits adder
- partial products in the same place
1100 12 1010 10
0000 1100 0000 1100 1111000 78H
120 Issues - we need a 2n bits adder -
partial products must be placed in different
positions
16
Multiplication
X
? (n1)
Q S
Q0
Q1
Q n-1
. . .
Y
Scriere
Test
Shift
Command unit
Shift
Clear
Write
Write
17
Multiply algorithm

• Write the operands in registers (B ? X, Q ? Y),
  clear accumulator (A ? 0)
• Complement the negative numbers
• Test Q0
• If Q0 0, shift right A and Q
• If Q0 1, add A B A and shift right A and Q
• Go to step 3 until Yn-1 arrives in Q0. No shift
  is needed after the last step
• AS BS QS
• If AS 1 complement the result

18
Multiply with Booth algorithm

• Improvements
• Multiply numbers in 2th complement no initial
  and final complementation are needed
• For long sequences of 0s and 1s only shift
  operations are needed
• For 0s it is obvious from the previous method
• For a sequence of 1s
• Examples 1111 10000 -1
• 11.1111 100.000 1
• A sequence of 1s can be changed into a sequence
  of 0s
• Only transitions from 0 to 1 or 1 to 0 needs
  adding or subtract operations as follows
• If two consecutive bits in the second operand
  are
• 0 and 0 - shift the partial result to the right
• 0 and 1 add second operand and shift the
  partial result to the right
• 1 and 0 subtract the second operand and shift
  the partial result to the right
• 1 and 1 - shift the partial result to the right

19
Division

• Multiple solutions
• Compare and subtract
• Hard to compare on different positions
• Subtract and restore the partial result (if
  necessary)
• Subtract the second operand from the most
  significant part of the first operand and
• If the result is positive than its ok (quotient
  gets a 1),
• Else restore the result by adding back the second
  operand (quotient gets a 0)
• Drawback some steps require 2 arithmetical
  operations (subtract and adding)
• Subtract without restoring the partial result
• try to subtract B from the partial rest RR-B
• If a wrong subtraction was made in the previous
  step the correction is made in the next step by
  adding the second operand instead of subtracting
  it
• With correction ((R-B) B)2 - B R2 - B
  A shifted one position to the left
• Without correction
• (R B)2 B R2 B
• Advantage in a step at most one subtraction or
  adding is needed

20
Division circuit for the second method
restoring the partial result
21
Division algorithm with restoring the partial
result

• Load first operand in A and Q Load second
  operand in B
• Write AS BS in QS.
• If AS 1, complement A, Q
• If BS 1, complement B
• Tests
• A B, overflow
• B 0, division with 0
• A 0 and Q lt B, rezult 0
• Shift A, Q to the left and put 0 in Q0
• Subtract B from A and put the result in A.
• if AS 0 (positive rest) , shift A, Q to the
  left and put 1 in Q0
• else (AS 1 negative rest), add B to A, shift A,
  Q to the left and put 0 in Q0
• Go to step 5 n times
• Rounding the result. If A B, add 1 to the Qth
  complement
• If QS 1 complement register Q

22
Multiply with look-up tables

• Principle all the results are pre-computed and
  memorized in a non-volatile memory
• Multiply is a simple reading from the memory
• Operands form the address of the location where
  the result is stored
• Problem the dimension of the memory must be 22n
• Examples
• 88 bits gt 16 address lines gt 216 64KB
• 1616 bits gt 32 address lines gt 232 4GB (TOO
  MUCH)
• Solution
• Multiply 88 bits in multiple steps to obtain
  multiply on 16, 32 or 64 bits
• Example
• X X15,8 X7,0 Y Y15,8 Y7,0
• P XY X7,0Y7,0 X15,8Y7,0 28 X7,0Y15,8
  28 X15,8Y15,8 216
• Observation multiplies with 28 and 216 are
  achieved by placing the result in a proper binary
  position also the first and the last partial
  products may be combined in a single 32 bit
  register with no adding required

23
Multiply with look-up table
WrX
WrY
Sel1
Sel0
WrP1,2
WrP0
WrP3
Sel2
WrAcc
24
Multiply with look-up table
Step WrX WrY WrP0 WrP1,2 WrP3 WrAcc Sel0 Sel1 Sel2 Description
1 1 1 0 0 0 0 0 0 0 Load operands
2 0 0 1 0 0 0 0 0 0 Write P0
3 0 0 0 0 1 0 1 1 0 Write P3
4 0 0 0 1 0 0 1 0 0 Write P1
5 0 0 0 0 0 1 0 1 0 AccP0 P3 P1
6 0 0 0 1 0 0 0 1 0 Write P2
7 0 0 0 0 0 1 0 0 1 AccAccP2

• Multiply with look-up table requires only 7 steps
  instead of 16-20
• it can be further optimized

25
Arithmetical operations in floating point (FP)
representation

• Floating point representation of a number
• Used in case of very big or very small numbers
• 3 fields for representation
• Sign
• Exponent magnitude of the number
• Mantissa some significant figures (digits) of
  the number
• IT IS NOT THE REPRESENTATION OF REAL NUMBERS from
  mathematics !!!!!
• A lots of anomalies and precision problems
• Operating with numbers having different
  magnitudes may generate errors caused by
  rounding
• Mm-M 0 M-Mm m
• Number with decimal parts, in most cases have no
  precise FP representation
• Example 0.3 has no precise representation in
  floating point

26
Floating point adder/ subtracter
27
Adding floating point numbers

• Load the operands
• Compare exponents (5 cases)
• ex ey, add mantissas and copy the exponent
• ex gt ey and (ex ey) lt number of bits in the
  mantissa, than the my mantissa is aligned by
  shifting it with ex-ey positions to the right
• ex gtgt ey and (ex ey) number of bits in the
  mantissa, than X is copied in the result (Y is
  too small) go to step 4
• ex lt ey and (ey ex) lt number of bits in the
  mantissa, than the mx mantissa is aligned by
  shifting it with ey-ex positions to the right
  than mantissas are added
• ex ltlt ey and (ey ex) number of bits in the
  mantissa, than Y is copied in the result (X is
  too small) go to step 4
• Add mantissas
• Realign the result if necessary. Shift the
  resulting mantissa to the right or to the left
  until the integer part is 0 and the first bit
  after the decimal point is 1 in the same time
  increment or decrement the exponent in accordance
  with the shifting operation

28
Multiply and division in floating point
representation

• Multiply
• Add the exponents
• Multiply the mantissas
• Adjust the result (shift mantissa to the left and
  decrement the exponent if necessary)
• Division
• Subtract the exponents
• Divide the mantissas
• Adjust the result (if necessary)

29
Add and Subtract with saturation

• Idea if there is an overflow or underflow after
  an adding or subtraction the result should be the
  maximum or the minimum possible value
• example
• unsigned 8 bit representation
• Normal adding (wraparound) With saturation
• 80h90h 10h (error, overflow) 80h90h FFh
  (maximum value)
• 80h-90h F0h (underflow) 80h-90h 00h (minimum
  value)
• signed (2th complement) 8 bit representation
• Normal adding (wraparound) With saturation
• 70h20h 90h (error, negative) 70h20h 7Fh
  (maximum value)
• 80h-20h 60h (error, positive) 80h-20h 80h
  (minimum value)
• (-128-32 96)
• Used in case of
• signal processing
• multimedia processing
• Typical signal processing operation
  amplification
• Ue Ui A
• Supply 10V-10V, Ui0.05 V A100 gtUe 5V

30
Add and Subtract with saturation

• Add and subtract with saturation for unsigned 8
  bit representation
• the result is selected with a multiplexer
• Carry (C) 0 gt result correct
• C1 and adding gt overflow, resultFFh
• C1 and subtract gt underflow, result00h
• homework do it for 2th complement

C Add/Sub Operation Result S1 S0
0 0 adding Correct XY 1 X
0 1 subtract Correct X-Y 1 X
1 0 adding Overflow FFh 0 1
1 1 subtract Underflow 00h 0 0
Add/Sub
Add/Sub
S0 0 1
0 X X
1 1 0
S1 0 1
0 1 1
1 0 0
C
C
