Title: Destination Dispatch


1

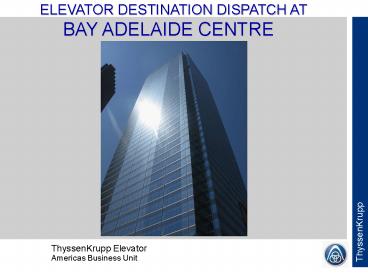

ELEVATOR DESTINATION DISPATCH AT BAY ADELAIDE
CENTRE
2
Destination Dispatch Ground Floor G
Touch screens (4 in total)
Touch screens replace conventional pushbuttons.
3
Destination Dispatch Entry Screen
4
Destination Dispatch Assignment Screen
5
Ground Floor Car Identifier
  • Identify assigned car.
  • Confirm destination floor(s).

6
Destination Dispatch Floors 10, 38-49
Touch screens
  • Touch screens replace conventional pushbuttons
  • One at floor 10
  • Two each at
  • floors 38-45
  • Four at floor 46
  • Two each at
  • floors 47-49.

7
Tenant Floor Car Identifier
F
Above entrances at tenant floors to identify
assigned car.
8
Destination Dispatch Car Target Indicators
Car target indicators
Car buttons are inoperative but illuminate to
confirm destination floor(s).
9
Car Target Indicators
10
Destination Dispatch Meets Accessibility
Guidelines
11
Destination Dispatch Assignment Screen
12
After Hours Floor Access Initial Implementation
  • Same as current system
  • Select direction of travel at kiosk
  • and proceed to first elevator.
  • Swipe access card over card
  • reader inside car.
  • Select your desired floor inside
  • car.

13
After Hours Floor Access Final Implementation
(Jan 2013)
  • Swipe access card over card
  • reader in kiosk.
  • Padlocks temporarily removed
  • from authorized floor(s)
  • Select your desired floor at
  • kiosk.
  • Proceed to assigned elevator.

14
QA Period
