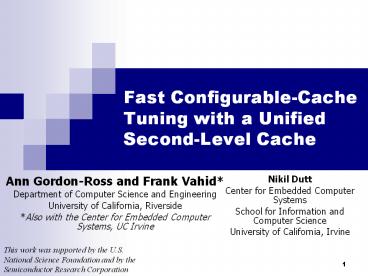

Fast Configurable-Cache Tuning with a Unified Second-Level Cache

1
Fast Configurable-Cache Tuning with a Unified
Second-Level Cache

• Ann Gordon-Ross and Frank Vahid
• Department of Computer Science and Engineering
• University of California, Riverside
• Also with the Center for Embedded Computer
  Systems, UC Irvine

Nikil Dutt Center for Embedded Computer
Systems School for Information and Computer
Science University of California, Irvine
This work was supported by the U.S. National
Science Foundation and by the Semiconductor
Research Corporation
2
Cache Hierarchy Optimizations
ARM920T(Segars 01)

• The cache hierarchy is a
  good candidate for
  optimizations
• Applications require
  highly diverse cache
  configurations for optimal
  energy consumption of the
  cache subsystem
• Over 50 energy savings possible in the cache
  subsystem due to configuration Gordon-Ross 04

3
Previous Cache Tuning Methodologies

• Previous methods limit configurability to
  facilitate easier heuristic development

I
I
I
Tuner
Microprocessor
Tuner
Microprocessor
Main Memory
Main Memory
D
D
D
Single level cache subsystem with separate caches
- less than 50 configurations
Multi-level cache subsystem with separate caches
- a few hundred configurations
4
Motivation

• Unified second level caches are commonplace in
  desktop computers and are becoming increasingly
  popular in embedded microprocessors
• Current cache tuning heuristics do not directly
  apply due to the complexity of tuning in the
  presence of a unified second level of cache -
  circular dependency
• Search space explodes to 18,000 configurations

A change in any cache effects the performance of
all other caches in the hierarchy
L1 I
L2 U
L1 D
5
Motivation

• We present an effective and efficient cache
  tuning heuristic for a highly configurable cache
  hierarchy including a unified second level of
  cache.

I
Tuner
Microprocessor
U
Main Memory
D
6
Level One Configurable Cache

• The base cache consists of 4 2KByte banks that
  may individually be shutdown for size
  configuration
• Line size is
  configurable
• Way concatenation allows for
  configurable associativity
• For evaluation of energy
  savings, we used a base cache
  of size
  8KB with a 32 byte line size and 4 way
  associativity

Way shutdown
2 KB
2 KB
2 KB
2 KB
2 KB
2 KB
2 KB
2 KB
8 KBytes
4 KBytes
8 KBytes 2-way
2 KB
2 KB
2 KB
2 KB
Way concatenation
7
Level Two Configurable Cache

• For maximum configurability, level two cache
  utilized the Motorola MCORE style way management
• Ways can be designated as instruction, data,
  unified, or off
• Line size is configurable
• For evaluation of energy savings, we used a base
  cache size of 64 KB with a 64 byte line size and
  4 fully unified ways

U-way
D-way
U-way
U-way
I-way
8
Alternating Cache Exploration with Additive Way
Tuning (ACE-AWT)
Tune level one sizes
Tune level one line sizes
Tune level one associativities




D
I
D
D
I
I
Tune level two associativity


Tune level two line size
Tune level two size
D
These steps are difficult because changing size
and associativity is synonymous in a way
management style cache
9
ACE-AWT - First Phase

• The first phase is applied during size exploration

DONE
10
ACE-AWT - Fine Tuning Phase

• The fine tuning phase is applied during
  associativity exploration

Start with resulting cache from the first phase
DONE
11
Results - Energy Savings

• Heuristic achieved near optimal results (when
  optimal could be computed)
• 62energy savings compared to base cache
• Yet only searched 0.2 of the search space
• Also improved performance by 35 compared to base
  cache due to tuned line sizes

12
Conclusions and Future Work

• We developed an efficient and effective cache
  tuning heuristic to tune a two level cache with a
  unified second level of cache
• 18,000 possible configurations
• Compared to a reasonable base cache
  configuration
• 62 energy savings
• Explores only 0.2 of the search space
• 35 improvement in performance
• Future work includes application of the tuning
  heuristic to different execution phases in the
  application
