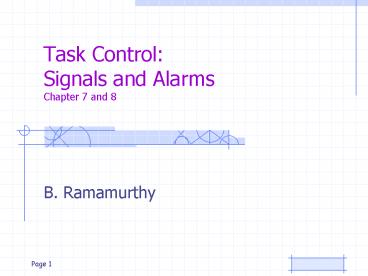

Task Control: Signals and Alarms Chapter 7 and 8

1
Task ControlSignals and AlarmsChapter 7 and 8

• B. Ramamurthy

2
Multi-tasking

• How to create multiple tasks? Ex Xinu create()
• How to control them?
• ready()
• resched()
• How to synchronize them? How to communicate among
  them?
• XINU semaphores, send and receive messages
• How to (software) interrupt a process? signals

3
Examples

• Consider g myProg.c
• You want to kill this process after you started
  the compilation..hit cntrl-C
• Consider execution of a program called badprog
• gtbadprog
• It core dumps .. What happened? The error in the
  program results in a signal to kernel to stop and
  dump the offending code
• Consider kill p ltpidgt
• Kill issues a termination signal to the process
  identified by the pid

4
Linux Processes

• Similar to XINU Procs.
• Lets understand how to create a linux process and
  control it.
• Chapter 7 and 8 of text book.
• Chapter 7 multi-tasking
• Chapter 8 Task communication and synchronization

5
Process creation

• Four common events that lead to a process
  creation are
• 1) When a new batch-job is presented for
  execution.
• 2) When an interactive user logs in / system
  initialization.
• 3) When OS needs to perform an operation (usually
  IO) on behalf of a user process, concurrently
  with that process.
• 4) To exploit parallelism an user process can
  spawn a number of processes.

6
Termination of a process

• Normal completion, time limit exceeded, memory
  unavailable
• Bounds violation, protection error, arithmetic
  error, invalid instruction
• IO failure, Operator intervention, parent
  termination, parent request, killed by another
  process
• A number of other conditions are possible.
• Segmentation fault usually happens when you try
  write/read into/from a non-existent
  array/structure/object component. Or access a
  pointer to a dynamic data before creating it.
  (new etc.)
• Bus error Related to function call and return.
  You have messed up the stack where the return
  address or parameters are stored.

7
Process control

• Process creation in unix is by means of the
  system call fork().
• OS in response to a fork() call
• Allocate slot in the process table for new
  process.
• Assigns unique pid to the new process..
• Makes a copy of the process image, except for the
  shared memory.
• both child and parent are executing the same code
  following fork()
• Move child process to Ready queue.
• it returns pid of the child to the parent, and a
  zero value to the child.

8
Process control (contd.)

• All the above are done in the kernel mode in the
  process context. When the kernel completes these
  it does one of the following as a part of the
  dispatcher
• Stay in the parent process. Control returns to
  the user mode at the point of the fork call of
  the parent.
• Transfer control to the child process. The child
  process begins executing at the same point in the
  code as the parent, at the return from the fork
  call.
• Transfer control another process leaving both
  parent and child in the Ready state.

9
Process Creation (contd.)

• Parent process create children processes, which,
  in turn create other processes, forming a tree of
  processes
• Generally, process identified and managed via a
  process identifier (pid)
• Resource sharing
• Parent and children share all resources
• Children share subset of parents resources
• Parent and child share no resources
• Execution
• Parent and children execute concurrently
• Parent waits until children terminate

10
Process Termination

• Process executes last statement and asks the
  operating system to delete it (exit)
• Output data from child to parent (via wait)
• Process resources are deallocated by operating
  system
• Parent may terminate execution of children
  processes (abort)
• Child has exceeded allocated resources
• Task assigned to child is no longer required
• If parent is exiting
• Some operating system do not allow child to
  continue if its parent terminates
• All children terminated - cascading termination

11
Task State Diagram
Task admitted
Ready
New
Resources allocated
Dispatched cpu allocated
Event occurred
Task exit
Blocked
Run
Waiting for event
12
Resources Critical Resources

• Shared resources need mutual exclusion
• Tasks cooperating to complete a job
• Tasks contending to access a resource
• Tasks synchronizing
• Critical resources and critical region
• A important synchronization and mutual exclusion
  primitive / resource is semaphore

13
Critical sections and Semaphores

• When multiples tasks are executing there may be
  sections where only one task could execute at a
  given time critical region or critical section
• There may be resources which can be accessed only
  be one of the processes critical resource
• Semaphores can be used to ensure mutual exclusion
  to critical sections and critical resources

14
Semaphores

• See semaphore.h of xinu

15
Semaphores in exinu

• include ltkernel.hgt
• include ltqueue.hgt /lt queue.h must define
  of sem queues /
• / Semaphore state definitions /
• define SFREE 0x01 /lt this semaphore is
  free /
• define SUSED 0x02 /lt this semaphore is
  used /
• / type definition of "semaphore" /
• typedef ulong semaphore
• / Semaphore table entry /
• struct sentry
• char state /lt the state SFREE
  or SUSED /
• short count /lt count for this
  semaphore /
• queue queue /lt requires q.h.
  /

16
Semaphores in exinu (contd.)

• extern struct sentry semtab
• /
• isbadsem - check validity of reqested
  semaphore id and state
• _at_param s id number to test NSEM is declared
  to be 100 in kernel.h
• A system typically has a predetermined
  limited number of semaphores
• /
• define isbadsem(s) (((ushort)(s) gt NSEM)
  (SFREE semtabs.state))
• / Semaphore function declarations /
• syscall wait(semaphore)
• syscall signal(semaphore)
• syscall signaln(semaphore, short)
• semaphore newsem(short)
• syscall freesem(semaphore)
• syscall scount(semaphore)

17
Definition of Semaphores functions

• static semaphore allocsem(void)
• /
• newsem - allocate and initialize a new
  semaphore.
• _at_param count - number of resources available
  without waiting.
• example count 1 for mutual exclusion lock
• _at_return new semaphore id on success, SYSERR on
  failure
• /
• semaphore newsem(short count)
• irqmask ps
• semaphore sem
• ps disable() /
  disable interrupts /
• sem allocsem() /
  request new semaphore /
• if ( sem ! SYSERR count gt 0 ) /
  safety check /
• semtabsem.count count
  / initialize count /
• restore(ps)
  / restore interrupts /
• return sem
  / return semaphore id /

18
Semaphore newsem contd.

• /
• allocsem - allocate an unused semaphore and
  return its index.
• Scan the global semaphore table for a free
  entry, mark the entry
• used, and return the new semaphore
• _at_return available semaphore id on success,
  SYSERR on failure
• /
• static semaphore allocsem(void)
• int i 0
• while(i lt NSEM) /
  loop through semaphore table /
• /
  to find SFREE semaphore /
• if( semtabi.state SFREE )
• semtabi.state SUSED
• return i
• i
• return SYSERR

19
Semaphore wait()

• /
• wait - make current process wait on a
  semaphore
• _at_param sem semaphore for which to wait
• _at_return OK on success, SYSERR on failure
• /
• syscall wait(semaphore sem)
• irqmask ps
• struct sentry psem
• pcb ppcb
• ps disable() / disable
  interrupts /
• if ( isbadsem(sem) ) / safety
  check /
• restore(ps)
• return SYSERR
• ppcb proctabcurrpid / retrieve
  pcb from process table /
• psem semtabsem / retrieve
  semaphore entry /
• if( --(psem-gtcount) lt 0 ) / if
  requested resource is unavailable /

20
Semaphore wait()

• ppcb-gtsem sem / record semaphore id in pcb /
• enqueue(currpid, psem-gtqueue)
• resched() / place
  in wait queue and reschedule /
• restore(ps) / restore
  interrupts /
• return OK

21
Semaphore signal()

• /signal - signal a semaphore, releasing one
  waiting process, and block
• _at_param sem id of semaphore to signal
• _at_return OK on success, SYSERR on failure
• /
• syscall signal(semaphore sem)
• irqmask ps
• register struct sentry psem
• ps disable() / disable
  interrupts /
• if ( isbadsem(sem) ) / safety
  check /
• restore(ps)
• return SYSERR
• psem semtabsem /
  retrieve semaphore entry /
• if ( (psem-gtcount) lt 0 ) / release
  one process from wait queue /
• ready(dequeue(psem-gtqueue),
  RESCHED_YES)
• restore(ps) / restore
  interrupts /

22
Semaphore usage

• Problem 1
• Create 3 tasks that each sleep for a random time
  and update a counter.
• Counter is the critical resources shared among
  the processes.
• Only one task can update the counter at a time so
  that counter value is correct.
• Problem 2
• Create 3 tasks task 1 updates the counter by 1
  and then signal task 2 that updates the counter
  by 2 and then signals task 3 to update the
  counter by 3.

23
Problem 1

• include lt..gt
• //declare semaphore
• semaphore mutex1 newsem(1)
• int counter 0
• //declare functions proc1,proc1, proc3
• ready(create((void )proc1, INITSTK, INITPRIO,
  PROC1",, 2, 0, NULL), RESCHED_NO)
• ready(create((void )proc2, INITSTK, INITPRIO,
  PROC2",, 2, 0, NULL), RESCHED_NO)
• ready(create((void )proc3, INITSTK, INITPRIO,
  PROC3",, 2, 0, NULL), RESCHED_NO)

24
Problem 1 multi-tasks

• void proc1()
• while (1)
• sleep (rand()10)
• wait(mutex1)
• counter
• signal(mutex1)
• void proc2()
• while (1)
• sleep (rand()10)
• wait(mutex1)
• counter
• signal(mutex1)
• //similarly proc3

25
Problem 1
Task 1
Task 2
Counter1
Task 3
26
Problem 2

• semaphore synch12 newsem(0)
• semaphore synch23 newsem(0)
• semaphore synch31 newsem(0)
• ready(create((void )proc1, INITSTK, INITPRIO,
  PROC1",, 2, 0, NULL), RESCHED_NO)
• ready(create((void )proc2, INITSTK, INITPRIO,
  PROC2",, 2, 0, NULL), RESCHED_NO)
• ready(create((void )proc3, INITSTK, INITPRIO,
  PROC3",, 2, 0, NULL), RESCHED_NO)
• signal(synch31)

27
Task flow
28
Signals

• Signals provide a simple method for transmitting
  software interrupts to UNIX process
• Signals cannot carry information directly, which
  limits their usefulness as an general
  inter-process communication mechanism
• However each type of signal is given a mnemonic
  name Ex SIGINT
• See signal.h for others
• SIGHUP, SIGINT, SIGILL, SIGTRAP, SIGFPE, SIGKILL
• SIGALRM (sent by kernel to a process after an
  alarm timer has expired)
• SIGTERM
• signal (signal id, function) simply arms the
  signal

29
Intercept Signals
Task1
Task2
Two essential parameters are destination process
identifier and the signal code number kill
(pid, signal) Signals are a useful way of
handling intermittent data arrivals or rare
error conditions.
30
Handling Signals

• Look at the examples
• Catching SIGALRM
• Ignoring SIGALRM
• sigtest.c
• sigHandler.c
• pingpong.c
• See /usr/include/sys/iso/signal_iso.h for signal
  numbers

31
Signals and Alarms

• include ltsignal.hgt
• unsigned int alarm( unsigned int seconds )
• alarm(a) will start a timer for a secsonds and
  will interrupt the calling process after a secs.
• time(t) will get you current time in the
  variable t declared as time_t t
• ctime(t) will convert time to ascii format
• Alarm has a sigaction function that is set for
  configuring the alarm handler etc.
• sigaction(SIGALRM, act, oldact) the third
  paramter is for old action configuration

32
Sample programs

• Starting new tasks in linux page 165
• Programs in pages 174-180 on signals and alarms
• See demos directory for first
• See page 175 for the second program
• See page 178 for the third program

33
Pingpong
Parent
PSIG 43
Child
CSIG 42
34
Observe in pingpong.c

• pause() indefinite
• sleep() sleep is random/finite time
• While loop
• Signal handlers
• Re-arming of the signals

35
Volatile (from code reading last lecture)

• A variable should be declared volatile whenever
  its value could change unexpectedly. In practice,
  only three types of variables could change
• Memory-mapped peripheral registers
• Global variables modified by an interrupt service
  routine
• Global variables within a multi-threaded
  application
