Mining Sequential Patterns

1

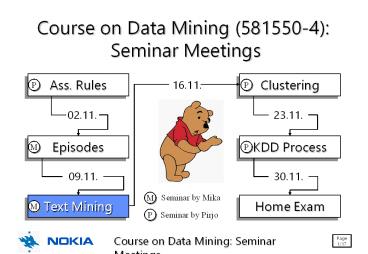

Course on Data Mining (581550-4) Seminar
Meetings
Ass. Rules
Clustering
P
P
Episodes
KDD Process
P
M
Text Mining
Home Exam
M
2
Course on Data Mining (581550-4) Seminar
Meetings
Today 16.11.2001

• R. Feldman, M. Fresko, H. Hirsh, et.al.
  "Knowledge Management A Text Mining Approach",
  Proc of the 2nd Int'l Conf. on Practical Aspects
  of Knowledge Management (PAKM98), 1998
• B. Lent, R. Agrawal, R. Srikant "Discovering
  Trends in Text Databases", Proc. of the 3rd Int'l
  Conference on Knowledge Discovery in Databases
  and Data Mining, 1997.

3
Course on Data Mining (581550-4) Seminar
Meetings
Good to Read as Background

• Both papers refer to the Agrawal and Srikant
  paper we had last week
• Rakesh Agrawal and Ramakrishnan Srikant Mining
  Sequential Patterns. Int'l Conference on Data
  Engineering, 1995.

4
Knowledge Management A Text Mining Approach

• R. Feldman, M. Fresko, H. Hirsh, et.al
• Bar-Ilan University and Instict Software, ISRAEL
  Rutgers University, USA LIA-EPFL, Switzerland
• Published in PAKM'98 (Int'l Conf. on Practical
  Aspects of Knowledge Management)
• Data Mining course Autumn 2001/University of
  Helsinki
• Summary by Mika Klemettinen

5
KM A Text Mining Approach

• Basic idea (see selected phases on the next
  slides)
• 1. Get input data in SGML (or XML) format
• Select only the contents of desired elements!
  (title, abstract, etc.)
• 2. Do linguistic preprocessing
• 2.1 Term extraction (use linguistic software
  for this)
• 2.2 Term generation (combine adjacent terms to
  morpho- syntactic patterns like "noun-noun",
  "adj.-noun", etc. by calculating association
  coefficients)
• 2.3 Term filtering (select only the top M most
  frequent ones)
• 3. Create taxonomies (there is a tool for this)
• 4. Generate associations (you may constrain the
  creation)
• 5. Visualize/explore the results

6
2.1 Term Extraction
7
3 Taxonomy Construction
8
4 Association Rule Generation
9
4 Association Rule Generation
10
5.1 Visualization/Exploration
11
5.2 Visualization/Exploration
12
Discovering Trends in Text Databases

• Brian Lent, Rakesh Agrawal and Ramakrishnan
  Srikant
• IBM Almaden Research Center, USA
• Published in KDD'97
• Data Mining course Autumn 2001/University of
  Helsinki
• Summary by Mika Klemettinen

13
Discovering Trends in Text Databases

• Basic ideas
• Identify frequent phrases using sequential
  patterns mining (see the slides summaries from
  the Agrawal et. al paper "Mining Sequential
  Patterns" (MSP))
• Generate histories of phrases
• Find phrases that satisfy a specified trend
• Definitions
• Phrase phrase p is ? (w1)(w2) (wn ) ?, where w
  is a word
• 1-phrase ? ?(IBM)? ?(data)(mining)? ?
• 2-phrase ? ?(IBM)? ?(data)(mining)? ? ?
  ?(Anderson) (Consulting) ? ?(decision)(support)?
  ?
• Itemset, sequence, is contained, etc. as in MSP
  paper

14
Discovering Trends in Text Databases

• Gaps Minimum and maximum gaps between adjacent
  words identify relations of words/phrases inside
  sentences/paragraphs, between words/phrases in
  different paragraphs, between words/phrases in
  different sections, etc.
• Sentence boundary 1000
• Paragraph boundary 100.000
• Section boundary 10.000.000
• Phases
• Partition data/documents based on their time
  stamps, create phrases for each partition (Lent
  al. have patent data documents)
• Select the frequent phrases and save their
  frequences
• Define shape queries using SDL (Shape Definition
  Language)

15
Discovering Trends in Text Databases
16
Discovering Trends in Text Databases
17
Discovering Trends in Text Databases
