Title: Using TCP sockets in Java


1

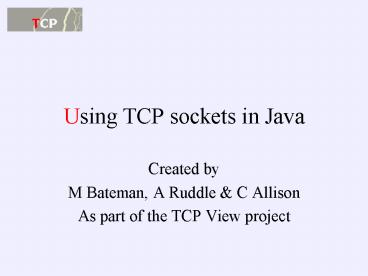

Using TCP sockets in Java
  • Created by
  • M Bateman, A Ruddle C Allison
  • As part of the TCP View project

2
Overview
  • TCP socket
  • Client/Server
  • Multithread server
  • Thread pooling server
  • Alternate thread pooling server

3
TCP Provides
  • Process to process communication
  • Use tuple of IP address port
  • Reliable
  • In order
  • Socket is one end-point of a two way connection
    link

4
TCP Socket Operations
5
TCP in Java
6
TCP in Java
  • Implemented in java.net.
  • Two main classes
  • java.net.ServerSocket - for server
  • java.net.Socket - for client
  • Provides abstractions over
  • Socket and connect operations
  • Bind, listen accept
  • Remember to close the socket at the end

7
ServerSocket
  • Constructors
  • ServerSocket (port)
  • ServerSocket (port, backlog)
  • ServerSocket (port, backlog, bindAddress)
  • Where
  • port the TCP port to listen on
  • backlog TCP queue length
  • bindAddress interface to use (else all)

8
Socket
  • Construction
  • Two important constructors
  • Socket () random local port
  • Socket (host, port) remote host and port
  • Is the end point for communication
  • Used in both the client and server
  • Client connects to ServerSocket
  • ServerSocket returns Socket for communications

9
Daytime server
  • import java.net.
  • import java.io.
  • public class DTServer
  • public static void main (String argv)
  • int dayTimePort 13
  • try
  • ServerSocket dtserver new ServerSocket
    (dayTimePort)
  • while (Socket con dtserver.accept ())
  • PrintWriter out new PrintWriter
    (con.getOutputStream (), true)
  • Date now new Date ()
  • out.println (now.toString ())
  • con.close ()
  • catch (Exception e)

10
Daytime client
  • import java.net.
  • import java.io.
  • public class DTClient
  • public static void main (String argv)
  • int dayTimePort 13
  • try
  • Socket con new Socket (argv0,
    dayTimePort)
  • InputStream is con.getInputStream ()
  • BufferedReader br new BufferedReader (new
    InputStreamReader (is))
  • String time br.readLine ()
  • System.out.println (The time at argv0
    is time)
  • con.close ()
  • catch (Exception e)

11
Issues
  • Can only deal with one request at once
  • Performance
  • Have to wait until the guy in front has finished
    with the server

12
Solution Threads
  • Thread theory not covered here
  • Basically allows server to do more than one thing
    at once (see operating system course to find out
    why this isnt true)
  • Two ways
  • Extend java.lang.Thread
  • Implement java.lang.Runnable
  • Override public void run ()
  • public class TThread extend Thread
  • public void run ()
  • for (int i 0 i lt 100 i)
  • System.out.println (i)
  • public static void main (String argv)
  • new TThread ().start ()

public class RThread implements Runnable
public void run () for (int i 0 i lt
100 i) System.out.println (i)
public static void main (String argv)
new Thread (new TThread ()).start ()
13
Multithreaded Daytime
  • import java.net.
  • import java.io.
  • public class DTServer
  • public static void main (String argv)
  • int dayTimePort 13
  • try
  • ServerSocket dtserver new ServerSocket
    (dayTimePort)
  • while (Socket con dtserver.accept ())
  • DTThread dtthread new DTThread () //
    create the new thread
  • dtthread.setSocket (con)
  • dtthread.start () // start the thread now
  • catch (Exception e)

14
Daytime Thread
  • import java.net.
  • public class DTThread extends Thread
  • Socket con null
  • public void setSocket (Socket con)
  • this.con con
  • public void run () // Important work done here
  • PrintWriter out new PrintWriter
    (con.getOutputStream (), true)
  • Date now new Date ()
  • out.println (now.toString ())
  • con.close ()

15
Issues
  • Performance
  • Thread creation at client connection
  • Creating threads takes time
  • Possible deadlock
  • Due to multithreaded

16
Thread Pools - Basic
  • import java.net.
  • import java.io.
  • public class DTServer
  • public static void main (String argv)
  • int dayTimePort 13
  • List list Collections.synchronizedList(new
    LinkedList())
  • for (int i 0 i lt 10 i ) list.add (new
    DTThread ()) // create 10 threads
  • try
  • ServerSocket dtserver new ServerSocket
    (dayTimePort)
  • while (Socket con dtserver.accept ())
  • DTThread dtthread (DTThread)list.remove
    (0)
  • dtthread.setSocket (con)
  • dtthread.start () // start the thread now
  • list.add (new DTThread ()) // create a
    thread to create the one we just used
  • catch (Exception e)

17
Issues
  • Possible deadlock
  • Resource thrashing
  • Concurrency errors
  • Thread leakage
  • Request overload
  • Performance
  • Thread creation still has to be performed in the
    main loop

18
Pool Alternative Implementation
  • Create pool as before
  • Create thread which makes sure the pool has n
    thread waiting
  • On connection take thread from the pool
  • The above thread makes sure there are always
    threads in the pool waiting to be used

19
Summary
