Title: ITIL Stage 3

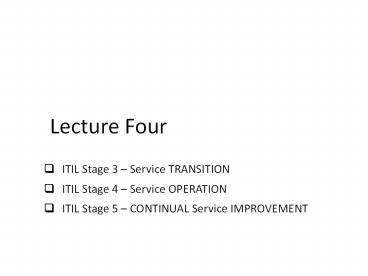

1
Lecture Four
  • ITIL Stage 3 Service TRANSITION
  • ITIL Stage 4 Service OPERATION
  • ITIL Stage 5 CONTINUAL Service IMPROVEMENT

2
ITIL Stage 3 Service TRANSITION
3
TRANSITION
  • Build
  • Test
  • User acceptance
  • Deployment
  • Bed-in

4
Good service transition
  • Set customer expectations
  • Enable release integration
  • Reduce performance variation
  • Document and reduce known errors
  • Minimise risk
  • Ensure proper use of services

5
S. Transition at a glance
6
Knowledge management
  • Vital to enabling the right information to be
    provided at the right place and the right time to
    the right person to enable informed decision
  • Stops data being locked away with individuals
  • Obvious organisational advantage

7
Data ? Information ? Knowledge ? Wisdom
Information - who, what , where?
Knowledge - How?
Wisdom - Why?
Data
Wisdom cannot be assisted by technology it only
comes with experience!
Service Knowledge Information Management System
is crucial to retaining this extremely valuable
information
8
Service Asset and Configuration
  • Managing these properly is key
  • Provides Logical Model of Infrastructure and
    Accurate Configuration information
  • Controls assets
  • Minimises costs
  • Enables proper change and release management
  • Speeds incident and problem resolution

9
Configuration Management System
10
Painting the ForthBridge ...
  • A Baseline is a last known good configuration
  • Current configuration will always be the most
    recent baseline plus any implemented approved
    changes
  • The CMS will always be a work in progress and
    probably always out of date. But still worth
    having

11
... just some parts of a theoretical CMDB
HARDWARE Specification Location Owner Financials S
oftware
USERS Applications Contracts Incidents
INCIDENTS Applications Hardware Resolutions
CHANGES Applications Users Equipment
SOFTWARE Licenses Versions
APPLICATIONS Users Hardware
SLA Applications Users Contracts
O/S Equipment
RELEASES Applications
KNOWN ERRORS Incidents
INFRASTRUCTURE SOFTWARE e.g. Oracle
PROBLEMS Incidents Resolutions
B C P DOCS
AVAILABILITY STATISTICS
SERVICES Applications
NETWORK Linkages Dependencies
DEFINITIVE HARDWARE STORE
DEFINITIVE SOFTWARE LIBRARY
12
Change Management
  • Respond to customers changing business
    requirements
  • Respond to business and IT requests for change
    that will align the services with the business
    needs with the IT state of the art
  • Roles
  • Change Manager
  • Change Authority
  • Change Advisory Board (CAB) ? approving requested
    changes and assisting in prioritization
  • Emergency CAB (ECAB) ? the same, for emergency
    changes

13
Change Types
  • Normal
  • Non-urgent, requires approval
  • Standard
  • Non-urgent, follows established path, no approval
    needed
  • Emergency
  • Requires approval but too urgent for normal
    procedure

14
Change Advisory Board
  • Change Manager (VITAL)
  • One or more of
  • Customer/User
  • User Manager
  • Developer/Maintainer
  • Expert/Consultant
  • Contractor
  • CAB considers the 7 Rs
  • Who RAISED?, REASON, RETURN, RISKS, RESOURCES,
    RESPONSIBLE, RELATIONSHIPS to other changes

15
Release Management
  • Release is a collection of tested and authorised
    changes ready for deployment
  • A rollout introduces a release into the live
    environment
  • Full Release
  • e.g. Office 2007
  • Delta (partial) release
  • e.g. Windows Update
  • Package
  • e.g. Windows Service Pack

16
Release test deploy
  • Release Manager will produce a release policy
  • Release MUST be tested and NOT by the developer
    or the change instigator
  • Deploy can be manual or automatic
  • Automatic can be push or pull

17
ITIL Stage 4 Service OPERATION
18
OPERATION
  • Maintenance
  • Management
  • Realises Strategic Objectives and is where the
    Value is seen

19
Service Operation Balances
20
Processes in Service Operation
  1. Request Fulfilment
  2. Access Management
  3. Event Management
  4. Incident Management
  5. Problem Management

21
P1 Request Fulfilment
  • Information, advice or a standard change
  • Should not be classed as Incidents or Changes

22
P2 Access Management
  • Right things for right users at right time
  • Concepts
  • Access
  • Identity (Authentication, AuthN)
  • Rights (Authorisation, AuthZ)
  • Service Group
  • Directory

23
P3 Event Management
  • 3 Types of events
  • Information
  • Warning
  • Exception
  • Need to make sense of events and have appropriate
    control actions planned and documented

24
P4 Incident Management
  • Incidents are a subset of Events
  • IM deals with unplanned interruptions to IT
    Services or reductions in their quality
  • Failure of a configuration item that has not
    impacted a service is also an incident (e.g. Disk
    in RAID failure)
  • Reported by
  • Users
  • Technical Staff
  • Monitoring Tools

25
Incident Management (1/3)
  • An incident defined as an unplanned, unexpected
    or unexplained disruption in service (any event
    which is not part of the standard operation of a
    service and which causes or may cause an
    interruption to or a reduction in the quality of
    the service that is provided).
  • Objective is to restore normal service operation
    as quickly as possible and minimize the adverse
    impact on business operations.
  • The process responsible for managing the
    life-cycle of all incidents.

26
Incident Management (2/3)
Incident Management input and output of the
process, and its activities
27
Incident Management (3/3)
ESCALATION the mechanism that assists timely
resolution of an Incident
Levels of support are specific to technical
expertise
28
P5 Problem Management
  • Dont confuse a Problem (the cause) with an
    Incident (the effect)
  • Aims to prevent problems and resulting incidents
  • Minimises impact of unavoidable incidents
  • Eliminates recurring incidents
  • Proactive Problem Management
  • Identifies areas of potential weakness
  • Identifies workarounds
  • Reactive Problem Management
  • Identifies underlying causes of incidents
  • Identifies changes to prevent recurrence

29
Problem Management (1/2)
  • A Problem is defined as the unknown underlying
    cause
  • Problem Management aims to Stabilize IT services
    through
  • Minimizing the consequences of incidents
  • Removal of the root causes of incidents
  • Prevention of incidents and problems
  • Prevent recurrence of incidents related to errors
  • Both reactive process and proactive process.

30
Problem Management (2/2)
Problem Management takes time to identify the
cause and eliminate it.
31
Functions in Service Operation
  • Service Desk
  • Technical Management
  • IT Operations Management
  • Applications Management

32
Service Desk (1/3)
  • Local, Central or Virtual
  • Single point of contact (POC)
  • Call Centre Help Desk particular instances
    of S.D.
  • Skills for operators
  • Customer Focus
  • Articulate
  • Interpersonal Skills (patient!)
  • Understand Business
  • Methodical/Analytical
  • Technical knowledge
  • Multi-lingual
  • Service desk often seen as the bottom of the
    pile, but most visible to customers so
    important to get right!

33
Service Desk (2/3)
  • Integrated function, not a process, to all of the
    operational process.
  • Serves an intended purpose
  • Single point of contact between service
    providers, customers and users.
  • Manages incidents and escalates according to
    agreed service levels.
  • Manage requests, incidents, service requests and
    communications with customer and users.

Service Desk
34
Service Desk (3/3)
single POC
35
ITIL Stage 5 CONTINUAL Service
IMPROVEMENT
36
CONTINUAL IMPROVEMENT
  • Focus on Process Owners and Service Owners
  • Ensures that service management processes
    continue to support the business
  • Monitor and enhance Service Level Achievements
  • PDCA (Deming cycle Plan, Do, Check, Act)
  • W. Edwards Deming

37
Service Measurement
  • Technology (components, MTBF etc)
  • Process (KPIs - Critical Success Factors)
  • Service (End-to end, e.g. Customer Satisfaction)
  • Why?
  • Validation Soundness of decisions
  • Direction of future activities
  • Justify provide factual evidence
  • Intervene when changes or corrections are needed

38
7 Steps to Improvement
