Title: WiFi


1

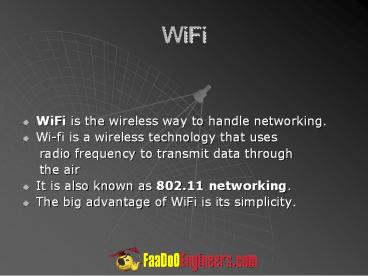

WiFi
  • WiFi is the wireless way to handle networking.
  • Wi-fi is a wireless technology that uses
  • radio frequency to transmit data through
  • the air
  • It is also known as 802.11 networking.
  • The big advantage of WiFi is its simplicity.

2
Walkie-Talkie Network
  • If you want to understand wireless networking at
    its simplest level, think about a pair of
    walkie-talkie.
  • These are small radios that can transmit and
    receive radio signals.
  • The only problem would be that the data rate
    would be very slow.
  • Another problem the walkie-talkies could not be
    used to connect to the internet.

3
WiFis Radio Technology
  • The radios used in WiFi are not so different from
    the radios used in walkie-talkies.
  • They have the ability to transmit and receive.
  • They have the ability to convert 1s and 0s into
    radio waves and then back into 1s and 0s.
  • There are major differences, of course.

4
WiFis Radio Technology (Contd)
  • WiFi radios that work with the 802.11b and
    802.11g standards transmit at 2.4 GHz, while
    those that comply with the 802.11a standard
    transmit at 5 GHz. The higher frequency allows
    higher data rates.
  • The radios used for WiFi have the ability to
    change frequencies,i.e frequency hop between
    channels.

5
Wireless Networking Standards
  • WiFi refers to the protocols that allow wireless
    networking.
  • These protocols are codified in standards.
  • Standards are mutually agreed upon rules adopted
    by the industry on how the wireless networks
    operate.
  • There are several standards that enable wireless
    local area networks (WLANs).

6
802.11b, 802.11a, and 802.11g
  • 802.11b was first to reach the marketplace.802.11b
    transmits at 2.4 GHz and go up to 11 Mbps.
  • 802.11a was next. It operates at 5 GHz and can
    handle up to 54 Mbps.
  • 802.11g is a mix of both worlds. It operates at
    2.4Ghz but it has the 54 megabits per second
    speed of 802.11a.

7
802.11b
  • Any 802.11b signal occupies approximately 30 MHz.
  • Thus, 802.11b signal overlaps with several
    adjacent channel frequencies.
  • Any given area can therefore support at most 3
    access points (operating on different channels)
    at once.

8
802.11b (Contd)
Neighboring APs use different channels to reduce
interference. Reuse cluster size is equal to
3.
1
Access Point
2
3
9
802.11b (Contd)
2 Mbps
5.5 Mbps
11 Mbps
10
802.11a
  • 802.11a specification operates at radio
    frequencies between 5.15 and 5.825 GHz, i.e.
    802.11a utilizes 300 MHz bandwidth in Unlicensed
    National Information Infrastructure (U-NII) band.
  • The FCC has divided total 300 MHz in this band
    into three distinct 100 MHz bands low, middle,
    and high, each with different legal maximum power.

Band Channel High band 5.725-5.825 GHz
9-12 Middle band 5.25-5.35 GHz 5-8 Low
band 5.15-5.25 GHz 1-4
11
802.11a (Contd)
  • The low and middle bands have a total of 200 MHz
    of frequency.
  • This 200 MHz supports 8 non-overlapping channels.

12
802.11a (Contd)
Neighboring APs use different channels to reduce
interference. Reuse cluster size is equal to
8.
1
Access Point
7
2
3
6
4
5
8
13
802.11a (Contd)
802.11a
802.11b
2 Mbps
12 Mbps
5.5 Mbps
24 Mbps
36 Mbps
48 Mbps
11 Mbps
54 Mbps
14
802.11g
  • 802.11g operates over 3 non-overlapping channels.
  • 802.11g operates in 2.4 GHz band but it delivers
    data rates from 6 Mbps to 54 Mbps.

15
802.11g
  • Once again, 802.11gs "backward compatibility"
    with 802.11b.
  • So both 11a and 11g offer the same data rates.
    Which is better?

16
Comparing 11a and 11g (Contd)
  • 802.11a operates in underused 5 GHz band 802.11g
    operates in heavily used 2.4 GHz band.
  • Higher number of channels in 11a allows more
    flexibility in avoiding interference.
  • 802.11a has range 150-300 ft in practical
    scenarios. 11g has range comparable to 11b
    (approximately 1000 ft).
  • 11a range is smaller than 11b and 11g. This is
    because 11a operates at a much higher frequency
    band.

17
Comparing 11a and 11g (Contd)
  • Because of its smaller range, 11a requires more
    Access Points to a region, thereby increasing
    cost. It is the most expensive of the three
    options.
  • 802.11b is the cheapest and most popular WLAN
    option.
  • 802.11g is more expensive than 11b but cheaper
    than 11a.

18
What does a typical 802.11 Packet look like?
  • Typical 802.11 packet
  • Preamble
  • PLCP (Physical Layer Convergence Procedure)
  • Data
  • CRC is the cyclic redundancy check

Preamble
PLCP Header
Data
CRC
19
How are Multiple Transmitters Supported?
  • In 802.11 systems, only one user is allowed to
    communicate with a receiver at a time (cannot use
    another frequency channel support a second or
    third additional user).
  • The way the one user is selected depends on the
    carrier sense multiple access with collision
    avoidance (CSMA/CA) random access method.

20
CSMA
  • To help illustrate the operation of CSMA, we will
    use an analogy of a dinner table conversation.
  • Lets represent our wireless medium as a dinner
    table, and let several people engaged in polite
    conversation at the table represent the wireless
    nodes.

21
CSMA (Contd)
  • The term multiple access covers what we already
    discussed above When one wireless device
    transmits, all other devices using the wireless
    medium hear the transmission.

22
2 Way Handshake
  • Node with packet to send monitors channel.
  • If channel idle for specified time interval
    called DIFS, then node transmits.
  • If channel busy, then
  • node continues to monitor until channel idle for
    DIFS.
  • At this point, terminal backs-off for random time
    (collision avoidance) and attempts transmitting
    after waiting this random amount of time.

23
2 Way Handshake (Contd)
  • First way of the 2 way handshake was for the
    transmitter to send its information packet to the
    destination node, after following the collision
    avoidance method described above.
  • If the packet reaches the destination without
    problems, the destination sends a short packet
    over the wireless medium acknowledging the
    correct reception.
  • This packet is typically called an ACK packet.
    ACK is the second way of the 2 way handshake.

24
4 Way Handshake
  • Listen before you talk
  • If medium is busy, node backs-off for a random
    amount of time after waiting DIFS, just as
    before.
  • But now, instead of packet, sends a short
    message Ready to Send (RTS). This message is
    basically attempting to inform others that I
    have something to send.

25
4 Way Handshake (Contd)
Access Point
Laptop
RTS
CTS
Data
ACK
26
Adding WiFi to Your Computer
  • One of the best things about WiFi is how simple
    it is.
  • Many new laptops already come with a WiFi card
    built in -- in many cases you don't have to do
    anything to start using WiFi.
  • It is also easy to add a WiFi card to an older
    laptop or a desktop PC.

27
Adding WiFi to an Older Computer
  • 802.11a, 802.11b or 802.11g network card.
  • For a laptop, this card will normally be a PCMCIA
    card
  • For a desktop machine, a PCI card
  • Install the card

28
Adding WiFi to an Older Computer
  • Install the drivers for the card
  • Find an 802.11 hotspot.
  • Access the hotspot.

29
Locating Hotspots
  • There are many WiFi hotspots now available in
    public places like restaurants, hotels, libraries
    and airports. For example, Starbucks.
  • You can also create your own hotspot in your
    home, as we will see in a little bit.
  • One way to find a hotspot is to go on-line.

30
Finding Hotspots O-Line
31
Connecting to a Hotspot
  • There are actually two steps to making a
    connection.
  • The first is to have your notebook "talk" to the
    hotspot
  • On the newest machines, an 802.11 card will
    automatically connect with an 802.11 hotspot and
    a network connection will be established.

32
Connecting to a Hotspot (Contd)
  • On older machines you often have to go through a
    simple 3-step process to connect to a hotspot.

33
Connecting to a Hotspot (Contd)
  • Access the software for the 802.11 card --
    normally there is an icon for the card down in
    the system tray at the bottom right of the
    screen.
  • Click the "Search button" in the software. The
    card will search for all of the available
    hotspots in the area and show you a list.
  • Double-click on one of the hotspots to connect to
    it.

34
Connecting to a Hotspot (Contd)
  • On older machines you often have to go through a
    simple 3-step process to connect to a hotspot.
  • Find what is the SSID of the hotspot
  • All the search feature (in newer equipment) is
    doing is grabbing these two pieces of information
    from the radio signals generated by the hotspot
    and displaying them for you.

35
Connecting to a Hotspot (Contd)
  • On most notebook models, you will see some sort
    of signal icon on the bottom right hand corner of
    your screen or a lit indicator on the notebook
    itself, which will give you feedback for "On" and
    signal strength (a red screen means your radio is
    Off a green screen indicates it is On).

OFF
ON
36
Connecting to a Hotspot (Contd)
  • You can also see the quality of the signal by
    clicking on the radio icon (may vary by system)

37
Connecting to a Hotspot (Contd)
  • Sign up with a wireless Internet service provider
    and configure your notebook according to their
    instructions.
  • If you don't subscribe to a service, chances are
    you will need to use your credit card to pay for
    access every time you want to connect.
  • After this, you will end up at the log-on page of
    the wireless provider (or, in some cases, the
    wireless location).

38
Connecting to a Hotspot (Contd)
  • Enter your user name and password if you are
    already a customer.
  • Once you successfully log on, you should see the
    following icon in your tool bar, indicating the
    connection has been made

39
WiFi Security
  • WiFi hotspots can be open or secure.
  • If a hotspot is open, then anyone with a WiFi
    card can access the hotspot.
  • If it is secure, then the user needs to know a
    WEP key to connect.
  • WEP stands for Wired Equivalent Privacy

40
WiFi Security (Contd)
  • WEP is an encryption system for the data that
    802.11 sends through the air.
  • Specifically, it is the process of encoding bit
    stream in such a way that only the person (or
    computer) with the key (a digital sequence) can
    decode it.

41
Setting up a Hotspot at Home
  • If you already have several computers hooked
    together on an Ethernet network and want to add a
    wireless hotspot to the mix, you can purchase a
    Wireless Access Point and plug it into the
    Ethernet network.

Wireless Access Point
42
Setup 1
43
WiFi Range
  • In a typical home, hotspot will provide coverage
    for about 100 feet (30.5 meters) in all
    directions, although walls and floors do cut down
    on the range.

44
One Type of Amplifier
Or a directional antenna can be used to
give better range in a particular direction.
45
Another Way to Amplify WiFi Signals
A WiFi repeater is installed to extend coverage.
Wireless Access Point
46
Configuring a Hotspot
  • Most wireless access points come with default
    values built-in.
  • Once you plug them in, they start working with
    these default values.
  • However, you may want to change things.
  • You normally get to set three things on your
    access point.

47
Things to Configure in a Hotspot
  • The SSID -- Service Set IDentifier is a sequence
    of charactersthat uniquely names a WLAN.
  • The channel the radio link used by access
    point/router to communicate to wireless devices.
  • The WEP key -- The default is to disable WEP.

48
Applications
  • Common applications for Wi-Fi include Internet
    and VoIP phone access, gaming, and network
    connectivity for consumer electronics such as
    televisions, DVD players, and digital cameras

49
Advantages of Wi-Fi
50
Disadvantages
  • Planning Depending on the goal
  • Security Greater exposure to risks
  • Access
  • Compromising Data
  • Denial of Service
  • Speed Slower than cable
  • Range Affected by various medium

51
Difference between Bluetooth and Wi-Fi
52
  • THANK YOU
Write a Comment
User Comments (0)
About PowerShow.com
