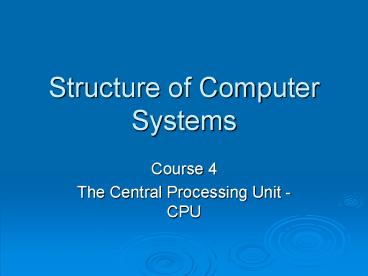

Structure of Computer Systems

1
Structure of Computer Systems

• Course 4
• The Central Processing Unit - CPU

2
CPU - Central Processing Unit

• Classic (idyllic) view
• Incorporates 2 of the 5 components of the von
  Neumanns classical model
• ALU
• CU Control Unit
• It is the brain (intelligent part) of a computer
• Fetch (read) instruction, decode/interpret it,
  read data, execute instruction and store the
  result
• Do its job in a synchronized and sequential way
  one thing at a time

3
CPU - Central Processing Unit

• Todays view
• Contains all kind of computer components
• Multiple CPUs
• symmetric, asymmetric,
• multiple cores,
• multiple ALUs, specialized ALUs (e.g. floating
  point, multimedia MMX, SSE2)
• Memory multiple levels of cache memory (L0, L1,
  L2, Trace cache)
• Interfaces and Peripheral devices (in case of
  microcontrollers and DSPs)
• Serial channels
• Parallel interfaces,
• Timers, counters
• Converters (ADC, DAC)
• Network interfaces
• Interrupt system
• Bus controller(s) and arbiter(s)
• Memory management units
• Execute instructions in parallel and in a
  speculative order
• Intelligence may be distributed in memories and
  interfaces as well
• Where is that nice idyllic image ?

4
Starting with the beginning

• A simple computer
• Attributes sequential, one (accumulator)
  register, one memory for instructions and data

Legend CG - clock generator PhG phase
generator PC program counter IR instruction
register Acc - accumulator
5
A simple computer

• How does it work?
• 4 phases
• IF instruction fetch read the instruction
  into IR
• Dec - Decode the instruction generate control
  signals
• PreEx - Prepare execution e.g. read the data
  from memory
• Exe Execute e.g. adding, subtraction

6
A simple computer

• Example 1 ADD Acc, M100h
• IF Sel0 gt Address PC IR_ld impuls gt IR
  ADD 100
• Dec Sel1 gtAddress IR_adr100 Inc1
  increment PC
• PreEx Op_sel code_add gt ALU is doing an
  adding
• Exe Acc_ld gt Acc Acc M100

7
A simple computer

• Example 2 JMP 200h
• IF Sel0 gt Address PC IR_ld impulse gt
  IRJMP 200
• Dec Inc 1 gt increment PC
• PreEx PC_ld 1 gt PCIR_addr100
• Exe
• Example 3 SHR Acc
• IF and Dec the same
• PreEx
• Exe Acc_shr 1 gt shift the accumulator one
  position to the right

8
A simple computer

• Homework try to implement
• MOV Maddr, Acc
• MOV Acc, Maddr
• Conditional jump (e.g if Acc0, gt0, lt0)
• MOV Acc, 0

9
A simple computer

• Issues
• Every instruction executed in a fixed (4) number
  of steps
• Too many for simple instructions
• Too few for complex instructions (e.g. multiply)
• Only one internal register hard to operate with
  data
• No Input and Output devices
• Limited number of possible operations small
  instruction set
• Possible improvements
• Variable number of phases -gt the phase generator
  should depend on the instruction code
• Multiple internal registers -gt 2 buses input
  data output data
• Front panel with 7segment LEDs and switches
• Increase the number of instructions -gt more
  complex Decoder and Command and Control Unit

10
A more sophisticated computer, but still simple
the MIPS architecture

• Attributes
• Sequential
• 32 internal registers of 16 bits
• Instructions fixed length, variable content
• Harvard memory architecture separate instruction
  and data memory
• An instruction is executed in 5 phases
• IF instruction fetch
• ID decode the instruction and prepare (read)
  the data
• Ex execute the instruction
• M - operation with the memory
• Wb write back store the result
• Instruction types
• R Register ex. ADD RS, RD,RT
• I Immediate ex. ADDI RT,RS, constant
  LW RT, offset(RS)
• J Jump ex. JMP target

11
MIPS architecture

• Instruction formats
• Fixed length (4 bytes) but multiple content
• R register type instructions
• ltinstrgt rd, rs, rt
• rd destination register
• rs source register
• rt target register
• Ex add s1, s2, s3 s1s2s3

12
MIPS architecture Instruction formats

• I immediate type instruction - with immediate
  value (constant)
• ltinstrgt rt, rs, IMM
• rs source register
• rt target register
• Ex addi s1, s2, 55 s1s255
• J jump type instructions
• ltinstrgt LABEL
• Ex j et1 jump

13
MIPS architecture

• Address generation and instruction fetch

PC_MUX_Sel1
PC_ld
IR_ld
4
Op_code
MUX
Program Memory
PC
Address
IR
Instr. code
op_address
Add
0
MUX
const.
Jump address
PC_MUX_Sel2
PC PC4 - increment the PC PCJump_Address
absolute jump PCPC Jump_Address relative jump
14
MIPS architecture

• Decode and data preparation

Exec cmds.
DEC
op_code
Mem. cmds.
WB cmds.
Instruction register
reg. 0
MUX
A (data)
reg. 1
reg. 2
IR
op1_ad
reg. 31
op2_ad
MUX
B (data)
Register Block
address
I (Immediate value)
15
MIPS architecture

• Execute and memorize

Data out
16
MIPS architecture

• Write back the result

17
MIPS architecture

• The whole picture

Clk
Phase gen.
Clock gen.
Instr. dec
4
IR
PC
Instr. mem
Data Mem
Regs
Regs
ALU
0
18
Pipeline execution

• What does it mean?
• Work as an assembly line
• idea General Motors around 1900
• How to do it?
• Specialized components (units) for every phase of
  instruction execution
• Memorize the partial results in temporary buffers
• What can we achieve?
• Higher execution speed at the same clock
  frequency
• CPI 1

19
Sequential v.s. Pipeline execution

• Sequential execution CPI5
• Pipeline execution CPI1 (in the ideal case)

T1 T2 T3 T4 T5 T6
T7 T8 T9 T10
i1
IF ID Ex M Wb
IF ID Ex M Wb
i2
i3
IF ID Ex M Wb
i4
IF ID Ex M Wb
i5
IF ID Ex M Wb
20
Superscalare and superpipeline architectures

• Superscalar
• Multiple pipelines
• 2 instructions are fetched every clock
• CPI ½
• Superpipeline
• phases require only half clock period
• CPI 1/2

T1 T2 T3 T4 T5 T6
instr. i IF ID Ex M Wb
instr. i1 IF ID Ex M Wb
instr. i2 IF ID Ex M
Wb
instr. i3 IF ID Ex M
Wb
T1 T2 T3 T4 T5 T6
instr. i IF ID Ex M Wb
instr. i1 IF ID Ex M Wb
instr. i2 IF ID Ex M
Wb
instr. i3 IF ID Ex M
Wb
21
Pipelined MIPS architecture
22
Pipeline architecture

• There is no free meal!
• Hazard cases
• Data hazard
• Data dependency between consecutive instructions
• Control hazard
• Jump/branch instructions change the normal
  (sequential) order of instruction execution
• Structural hazard
• Instructions in different phases use the same
  structural component (e.g. ALU, registers,
  memory, bus, etc.)
• Result reduce the speed and the efficiency of
  the pipeline architecture

23
Hazard cases in pipeline architectures

• Data hazard
• Data hazard types
• RAW - read after write
• Occurs very often avoided through forwarding
  (see Common data bus)
• WAR write after read
• It is rare in classic pipeline more often in
  superscalar pipelines
• WAW write after write
• RAR not a hazard

24
Hazard cases in pipeline architectures

• Data hazard (cont.)
• Solutions
• Detection and Stall phases
• instruction with unsolved data dependency waits
  in the instruction fetch stage until the data
  is available
• the next instructions are also stalled
• Register renaming
• multiple copies of a register (see alias
  registers for Pentium Pro)
• instructions with no logical dependency between
  them can get different copies of the same
  register
• avoid artificial data dependency caused by the
  limited number of internal registers
• Forwarding (see Common data bus)
• transfer a result in advance before it is written
  in the final place (register or memory location)
• Out-of-order execution
• speculative execution (see Pentium Pro
  architecture)

25
Hazard cases in pipeline architectures

• Structural hazard
• Solutions
• Detection and Stall phases
• Redundant functional units see Pentium
  processors
• Harvard memory organization separate code and
  data memory see microcontrollers
• Multiple buses see DSPs
• Out-of-order execution

26
Hazard cases in pipeline architectures

• Control hazard
• Solutions
• Stall phases
• Branch prediction
• Out-of-order execution

27
Pipeline architecture hazard cases

• Solving hazard cases
• Detect hazard cases and introduce stall phases
• Rearrange instructions
• re-arrange instructions in order to reduce the
  dependences between consecutive instructions
• Methods
• Static scheduling made before program execution
  optimization made by the compiler or user
• Dynamic scheduling made during program
  execution optimization made by the processor
  out-of-order execution
• Branch prediction techniques

28
Static v.s. dynamic scheduling

• Static scheduling
• The optimal order of instructions is established
  by the compiler, based on information about the
  structure of the pipeline
• Advantages it is made once and benefit every
  time the code is executed
• Drawback compiler should know about the
  structure of the hardware (e.g. pipeline stages,
  phases of every instruction) compiler must be
  changed when the processor version changes
• Dynamic scheduling
• The hardware has the capacity to reorder
  instruction to avoid or reduce the effect of
  hazard cases
• Advantage the processor knows best its
  structure optimization can be better connected
  to the hardware some dependences are reviled on
  at run-time
• Drawbacks reordering decisions are made every
  time the code is executed mode complex hardware
  is needed
