Title: Motorola M68HC11


1

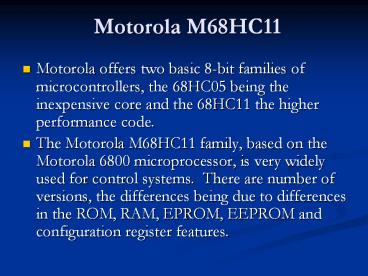

Motorola M68HC11
  • Motorola offers two basic 8-bit families of
    microcontrollers, the 68HC05 being the
    inexpensive core and the 68HC11 the higher
    performance code.
  • The Motorola M68HC11 family, based on the
    Motorola 6800 microprocessor, is very widely used
    for control systems. There are number of
    versions, the differences being due to
    differences in the ROM, RAM, EPROM, EEPROM and
    configuration register features.

2
Motorola M68HC11 ..
  • For example, 68HC11A8 has 8K ROM, 512 bytes
    EPROM, 256 bytes RAM, 16-bit timer system, a
    synchronous serial communication interface, an
    8-channel 8-bit analog-to-digital converter for
    analogue inputs, ad five ports A, B, C, D and E.

3
Block Diagram of M68HC11
4
Motorola M68HC11 ..
  • Input/Output ports
  • Port A may be used as an 8-bit input/output port
    or for timer or pulse accumulator function. It is
    controlled by two registers the port A data
    register PORTA at address 1000 and the pulse
    accumulator control register PACTL at address
    1026
  • Port B is output only. Its data register is at
    the address 1004 and to output data it has to be
    written to this memory location

5
Motorola M68HC11 ..
  • Port C can be either input or output, data being
    written or read from its data register at address
    1003. Its direction is controlled by the port
    data direction register ad address 1007. The
    eight bits in this register correspond to the
    individual bits in port C and determine whether
    the lines are inputs or outputs when the
    corresponding data direction register bit is set
    to 0 it is an input and when set to 1 an output.

6
Motorola M68HC11 ..
  • Port D contain just six lines, either input or
    output, and it has a data register at address
    1008 the directions are controlled by a port
    data direction register at address 1009.
  • Port D also serves as the connection to the two
    serial subsystems of the microcontroller. The
    serial communication interface (SCI), controlled
    by a register at 102D, is an asynchronous system
    which provides serial communication that is
    compatible with modems and terminal. The Serial
    peripheral Interface is controlled by a register
    at 1028

7
Motorola M68HC11 ..
  • Port E is an 8-bit input only port, data register
    at 100A, which can be used as a general-purpose
    input port or for analogue inputs to the internal
    analog-to-digital converter
  • The A/D converter has two lines VRH and VLH
    provides the reference voltages used by the ADC
    the high reference voltage should not lower than
    VDD, i.e. 5V and the low reference should not
    lower than VSS, i.e. 0V.

8
Motorola M68HC11 ..
  • The oscillator system pins XTAL and EXTAL are the
    connections needed to access the internal
    oscillator. E is an output from the bus clock and
    runs at one-quarter of the oscillator frequency
    and can be used to synchronize external events.
  • Interrupt Controller is to enable interruptions
    of a program. The two lines IRQ and XIRQ are for
    inputs of the interrupt signal. RESET is for
    resetting. An interrupt is an event that requires
    the CPU to stop normal program execution and
    perform some service related to the event.

9
Motorola M68HC11 ..
  • Timer
  • The microcontroller has three timers timer 0,
    timer 1, and timer 2. Timer 0 is an 8-bit counter
    which can be written to or read from and can be
    used to count external signal transitions,
    generating an interrupt when the required number
    of events have occurred. The source of the count
    can be either the internal bus clock signal or an
    external digital signal.

10
Motorola M68HC11 ..
  • COP
  • The computer operating properly function. This
    is a timer which times out and resets the system
    if an operation is not concluded in what is
    deemed a reasonable time. This is often termed
    watchdog timer because it is watching for
    unreasonable delays which might occur as a result
    of a fault in the system.

11
Motorola M68HC11 ..
  • PWM
  • Pulse width modulation is used to control the
    speed of dc motor. A square wave signal is
    generated and the amount of time for which the
    signal is high is controlled. As a consequence
    the average value of the signal is controlled,
    hence the voltage supplied to the motor is also
    controlled.
