Title: Fluidic Self Assembly For Active Matrix Displays


1

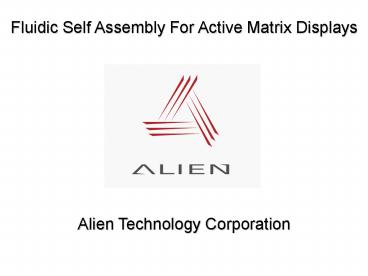

Fluidic Self Assembly For Active Matrix Displays
Alien Technology Corporation
2
Alien Technology Flexible Displays
  • Objective Change the rules of display
    manufacturing
  • Simple interface
  • Reduced system complexity
  • Combined display and electronics manufacturing in
    one process
  • Improved reliability (fewer interconnections)
  • Non-breakable plastic
  • Result Reduced cost
  • Approach
  • Conventional silicon foundries to fab circuits
  • Proprietary etching to form silicon NanoBlockTM
    ICs
  • Proprietary FSA process to distribute NanoBlock
    ICs on flexible substrate
  • Conventional roll-to-roll (web) display
    manufacturing
  • .

3
Technical Capabilities
  • Proprietary, patented process to separate
    electronics fabrication from display fabrication
  • Allows Alien to leverage existing foundries
  • Allows Alien to design display electronics in
    single crystal silicon
  • Allows Alien to drive any and all display
    materials
  • Permits, for the first time, active electronics
    on plastic substrates
  • 4 patents issued, 1 allowed, 22 more filed/in
    process
  • Lowers display factory capital investment from
    1 billion to under 100 million
  • Modular factory capacity increase (25 million
    increments)

4
Technology
5
Flat Display Process Flow
CMOS Wafers
Micromachine Blocks
Complete Display (standard)
FSA
Glass Panel or Plastic Panel
Generate Holes
6
Manufacturing Flow
7
NanoBlockTM ICs On A Dime
185 Micron NanoBlock
77 Micron NanoBlock
Photo by Ron Wilson
8
Receptor formation
High Throughput Accurate Receptor Sites on
Flexible Substrate
9
FSA/Web Process
  • Continuous, fluid assisted in-line FSA

FSA Fluid
10
Connected NanoBlockTM ICs
11
NanoBlockTM IC on Flexible Substrate
Nanoblock circuit
12
Display Cross Section (Concept)
Aluminum Wiring
Electro Optic Material (PDLC, LEP, OLED, etc.)
SiO2/ Polyester/ ITO
Polymer Dielectric/ Planarization Layer
Polymer-Based Flexible Substrate
Nanoblock IC
Note Not to scale
13
Products
14
Product Roadmap
New 2000 Production (300 Mil) (80 Mil) (105
Mil) (15 Mil) (500K)
2000 Micro Smart Cards Pagers
Cellular Phones Palm
Pilots PDA Handhelds
Personal Videos Transportation
Computers 2005 Wall-Hung Display
15
Amber Display with PDLC
16
First Products Smart Card Displays
Photos Courtesy GEMPLUS
17
Conclusion
  • Alien is not a niche manufacturer...
  • Alien is going after major display markets...
  • A little bigger, a little more resolution, a
    little more value-added each year...
  • Alien is not inventing, but combining modern
    manufacturing with IP...
  • Alien has the cost advantages, the features the
    IP protection...
  • Alien has
  • management experience
  • sustainable advantages
  • and scalable manufacturing processes
  • Alien Technology.can become the next
    Intel
