Title: Course Outline


1

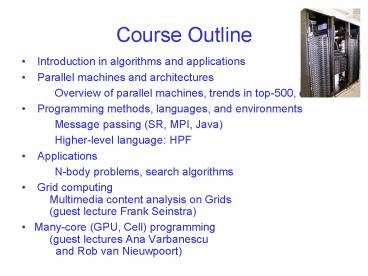

Course Outline
  • Introduction in algorithms and applications
  • Parallel machines and architectures
  • Overview of parallel machines, trends in
    top-500, clusters
  • Programming methods, languages, and environments
  • Message passing (SR, MPI, Java)
  • Higher-level language HPF
  • Applications
  • N-body problems, search algorithms
  • Grid computing Multimedia content analysis
    on Grids (guest lecture Frank Seinstra)
  • Many-core (GPU, Cell) programming (guest
    lectures Ana Varbanescu and Rob van
    Nieuwpoort)

2
Parallel Machines
  • Parallel Computing Techniques and Applications
    UsingNetworked Workstations and Parallel
    Computers (2/e)
  • Section 1.3 (part of) 1.4
  • Barry Wilkinson and Michael Allen
  • Pearson, 2005

3
Overview
  • Processor organizations
  • Types of parallel machines
  • Processor arrays
  • Shared-memory multiprocessors
  • Distributed-memory multicomputers
  • Cluster computers
  • Blue Gene

4
Processor Organization
  • Network topology is a graph
  • A node is a processor
  • An edge is a communication path
  • Evaluation criteria
  • Diameter (maximum distance)
  • Bisection width (minimum number of edges that
    should be removed to splitthe graph into 2
    -almost- equal halves)
  • Number of edges per node

5
Key issues in network design
  • Bandwidth
  • Number of bits transferred per second
  • Latency
  • Network latency time to make a message transfer
    through the network
  • Communication latency total time to send the
    message, including software overhead and
    interface delays
  • Message latency (startup time) time to send a
    zero-length message
  • Diameter influences latency
  • Bisection width influences bisection bandwidth
    (collective bandwidth over the removed edges)

6
Mesh
  • q-dimensional lattice
  • q2 -gt 2-D grid
  • Number of nodes k² (k SQRT(p))
  • Diameter 2(k - 1)
  • Bisection width k
  • Edges per node 4

7
Binary Tree
  • Number of nodes 2k 1 (k 2LOG(P))
  • Diameter 2 (k -1)
  • Bisection width 1
  • Edges per node 3

8
Hypertree
  • Tree with multiple roots, gives better bisection
    width
  • 4-ary tree
  • Number of nodes 2k ( 2 k1 - 1)
  • Diameter 2k
  • Bisection width 2 k1
  • Edges per node 6

9
Engineering solution fat tree
  • Tree with more bandwidth at links near the root
  • CM-5
  • CM-5

10
Hypercube
  • k-dimensional cube, each node has binary value,
    nodes that differ in 1 bit are connected
  • Number of nodes 2k
  • Diameter k
  • Bisection width 2k-1
  • Edges per node k

11
Hypercube
  • Label nodes with binary value, connect nodes that
    differ in 1 coordinate
  • Number of nodes 2k
  • Diameter k
  • Bisection width 2k-1
  • Edges per node k

12
Comparison
Mesh Tree Hypercube
Diameter o
Bisection width o -
edges 4 3 unlimited
13
Types of parallel machines
  • Processor arrays
  • Shared-memory multiprocessors
  • Distributed-memory multicomputers

14
Processor Arrays
  • Instructions operate on scalars or vectors
  • Processor array front-end synchronized
    processing elements

15
Processor Arrays
  • Front-end
  • Sequential machine that executes program
  • Vector operations are broadcast to PEs
  • Processing element
  • Performs operation on its part of the vector
  • Communicates with other PEs through a network

16
Examples of Processor Arrays
  • CM-200, Maspar MP-1, MP-2, ICL DAP (1970s)
  • Earth Simulator (Japan, 2002, former 1 of
    top-500)
  • Ideas are now applied in GPUs and CPU-extensions
    like MMX

17
Shared-Memory Multiprocessors
  • Bus easily gets saturated gt add caches to CPUs
  • Central problem cache coherency
  • Snooping cache monitor bus, invalidate copy on
    write
  • Write-through or copy-back
  • Bus-based multiprocessors do not scale

18
Other Multiprocessor Designs (1/2)
  • Switch-based multiprocessors (e.g., crossbar)
  • Expensive (requires many very fast components)

19
Other Multiprocessor Designs (2/2)
  • Non-Uniform Memory Access (NUMA) multiprocessors
  • Memory is distributed
  • Some memory is faster toaccess than other memory
  • Example
  • Teras at Sara, Dutch NationalSupercomputer
    (1024-node SGI)
  • Ideas now applied in multi-cores

20
Distributed-Memory Multicomputers
  • Each processor only has a local memory
  • Processors communicate by sending messages over a
    network
  • Routing of messages
  • Packet-switched message routing split message
    into packets, buffered at intermediate nodes
  • Store-and-forward
  • Circuit-switched message routing establish path
    between source and destination

21
Packet-switched Message Routing
  • Messages are forwarded one node at a time
  • Forwarding is done in software
  • Every processor on path from source to
    destination is involved
  • Latency linear to distance x message length
  • Old examples Parsytec GCel (T800 transputers),
    Intel Ipsc

22
Circuit-switched Message Routing
  • Each node has a routing module
  • Circuit set up between source and destination
  • Latency linear to distance message length
  • Example Intel iPSC/2

23
Modern routing techniques
  • Circuit switching needs to reserve all links in
    the path (cf. old telephone system)
  • Packet switching high latency, buffering space
    (cf. postal mail)
  • Cut-through routing packet switching, but
    immediately forward (without buffering) packets
    if outgoing link is available
  • Wormhole routing transmit head (few bits) of
    message, rest follows like a worm

24
Performance
Packet switching
Network latency
Wormhole routingCircuit switching
Distance (number of hops)
25
Distributed Shared Memory
  • Shared memory is easier to program, but doesnt
    scale
  • Distributed memory is hard to program, but does
    scale
  • Distributed Shared Memory (DSM) provide
    shared-memory programming model on top of
    distributed memory hardware
  • Shared Virtual Memory (SVM) use memory
    management hardware (paging), copy pages over the
    network
  • Object-based provide replicated shared objects
    (Orca language)
  • Was hot research topic in 1990s, but performance
    remained the bottleneck

26
Flynn's Taxonomy
Single Data Multiple Data
Single Instruction SISD SIMD
Multiple Instruction MISD MIMD
  • Instruction stream sequence of instructions
  • Data stream sequence of data manipulated by
    instructions

27
Flynn's Taxonomy
Single Data Multiple Data
Single Instruction SISD SIMD
Multiple Instruction MISD MIMD
SISD Single Instruction Single
Data Traditional uniprocessors SIMD Single
Instruction Multiple Data Processor arrays MISD
Multiple Instruction Single Data Nonexistent? MIM
D Multiple Instruction Multiple Data
Multiprocessors and multicomputers
