Program Verification using Probabilistic Techniques

1

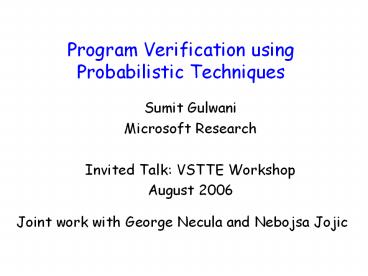

Program Verification using Probabilistic
Techniques

• Sumit Gulwani
• Microsoft Research
• Invited Talk VSTTE Workshop
• August 2006

Joint work with George Necula and Nebojsa Jojic
2
Probabilistic Techniques

• Used successfully in several areas of computer
  science.
• Yields more efficient, precise, even simpler
  algorithms.
• Technique 1 Random Interpretation
• Discovers program invariants
• Monte Carlo Algorithm May generate invalid
  invariants with a small probability. Running time
  is bounded.
• Random Testing Abstract Interpretation
• Technique 2 Simulated Annealing
• Discovers proof of validity/invalidity of a Hoare
  triple.
• Las Vegas Algorithm Generates a correct proof.
  Running time is probabilistic.
• Forward Analysis Backward Analysis

3
Random Interpretation

• Random Testing Abstract Interpretation
• Random Testing
• Test program on random inputs
• Simple, efficient but unsound (cant prove
  absence of bugs)
• Abstract Interpretation
• Class of deterministic program analyses
• Interpret (analyze) an abstraction
  (approximation) of program
• Sound but usually complicated, expensive
• Random Interpretation
• Class of randomized program analyses
• Almost as simple, efficient as random testing
• Almost as sound as abstract interpretation

4
Example 1
True
False

a 0 b i
a i-2 b 2
True
False

c b a d i 2b
c 2a b d b 2i
assert(cd 0) assert(c ai)
5
Example 1 Random Testing
True
False

• Need to test blue path to falsify second
  assertion.
• Chances of choosing blue path from set of all 4
  paths are small.
• Hence, random testing is unsound.

a 0 b i
a i-2 b 2
True
False

c b a d i 2b
c 2a b d b 2i
assert(cd 0) assert(c ai)
6
Example 1 Abstract Interpretation
True
False

• Computes invariant at each program point.
• Operations are usually complicated and expensive.

a 0 b i
a i-2 b 2
a0, bi
ai-2, b2
abi
True
False

c b a d i 2b
c 2a b d b 2i
abi c2ab, db-2i
abi cb-a, di-2b
abi, c-d
assert(cd 0) assert(c ai)
7
Example 1 Random Interpretation

• Choose random values for input variables.
• Execute both branches of a conditional.
• Combine values of variables at join points.
• Test the assertion.

True
False

a 0 b i
a i-2 b 2
True
False

c b a d i 2b
c 2a b d b 2i
assert(cd 0) assert(c ai)
8
Random Interpretation Outline

• Random Interpretation
• Linear arithmetic (POPL 2003)
• Uninterpreted functions (POPL 2004)
• Inter-procedural analysis (POPL 2005)

9
Linear relationships in programs with linear
assignments

• Linear relationships (e.g., x2y5) are useful
  for
• Program correctness (e.g. buffer overflows)
• Compiler optimizations (e.g., constant and copy
  propagation, CSE, Induction variable elimination
  etc.)
• programs with linear assignments does not mean
  inapplicability to real programs
• abstract other program stmts as
  non-deterministic assignments (standard practice
  in program analysis)

10
Basic idea in random interpretation

• Generic algorithm
• Choose random values for input variables.
• Execute both branches of a conditional.
• Combine the values of variables at join points.
• Test the assertion.

11
Idea 1 The Affine Join operation

• Affine join of v1 and v2 w.r.t. weight w
• ?w(v1,v2) w v1 (1-w) v2
• Affine join preserves common linear relationships
  (ab5)
• It does not introduce false relationships w.h.p.

w 7
12
Idea 1 The Affine Join operation

• Affine join of v1 and v2 w.r.t. weight w
• ?w(v1,v2) w v1 (1-w) v2
• Affine join preserves common linear relationships
  (ab5)
• It does not introduce false relationships w.h.p.
• Unfortunately, non-linear relationships are not
  preserved (e.g. a (1b) 8)

w 7
w 5
13
Geometric Interpretation of Affine Join

• satisfies all the affine relationships that
  are satisfied by both (e.g. a b 5)
• Given any relationship that is not satisfied by
  any of (e.g. b2),
  also does not satisfy it with high
  probability

State before the join State after the join
b
a b 5
(a 2, b 3)
b 2
(a 4, b 1)
a
14
Example 1
i3

• Choose a random weight for each join
  independently.
• All choices of random weights verify first
  assertion
• Almost all choices contradict second assertion

False
True

a 0 b i
a i-2 b 2
w1 5
i3, a1, b2
i3, a0, b3
i3, a-4, b7
False
True

c b a d i 2b
c 2a b d b 2i
i3, a-4, b7 c-1, d1
i3, a-4, b7 c11, d-11
w2 2
i3, a-4, b7 c23, d-23
assert (cd 0) assert (c ai)
15
Correctness of Random Interpreter R

• Completeness If e1e2, then R ) e1e2
• assuming non-det conditionals
• Soundness If e1?e2, then R e1 e2
• error prob.
• j number of joins
• d size of set from which random values are
  chosen
• k number of points in the sample
• If j 10, k 4, d ¼ 232, then error

16
Proof Methodology

• Proving correctness was the most complicated part
  in this work. We used the following methodology.
• Design an appropriate deterministic algorithm
  (need not be efficient)
• Prove (by induction) that the randomized
  algorithm simulates each step of the
  deterministic algorithm with high probability.

17
Random Interpretation Outline

• Random Interpretation
• Linear Arithmetic (POPL 2003)
• Uninterpreted functions (POPL 2004)
• Inter-procedural analysis (POPL 2005)

18
Problem Global value numbering
a 5 x F(a,b) y F(5,b) z F(b,a)
a 5 x ab y 5b z ba

• xy and xz
• Reasoning about multiplication is undecidable

• only xy
• Reasoning is decidable but tricky in presence of
  joins

• Axiom If x1y1 and x2y2, then F(x1,x2)F(y1,y2)
• Goal Detect expression equivalence when program
  operators are abstracted using uninterpreted
  functions
• Application Compiler optimizations, Translation
  validation

19
Random Interpretation Outline

• Random Interpretation
• Linear arithmetic (POPL 2003)
• Uninterpreted functions (POPL 2004)
• Inter-procedural analysis (POPL 2005)

20
Example 1
False
True

a 0 b i
a i-2 b 2

• The second assertion is true in the context i2.
• Interprocedural Analysis requires computing
  procedure summaries.

True
False

c b a d i 2b
c 2a b d b 2i
assert (c d 0) assert (c a i)
21
Idea Keep input variables symbolic
False
True

• Do not choose random values for input variables
  (to later instantiate by any context).
• Resulting program state at the end is a random
  procedure summary.

a 0 b i
a i-2 b 2
a0, bi
ai-2, b2
w1 5
a8-4i, b5i-8
True
False

c b a d i 2b
c 2a b d b 2i
a8-4i, b5i-8 c8-3i, d3i-8
a8-4i, b5i-8 c9i-16, d16-9i
w2 2
a0, b2 c2, d-2
i2
a8-4i, b5i-8 c21i-40, d40-21i
assert (cd 0) assert (c ai)
22
Experimental measure of error

• The of incorrect relationships decreases with
  increase in
• S size of set from which random values are
  chosen.
• N of random summaries used.

S
210 216 231
2 95.5 95.5 95.5
3 64.3 3.2 0
4 0.2 0 0
5 0 0 0
6 0 0 0
N
The experimental results are better than what is
predicted by theory.
23
Simulated Annealing

• Problem Given a program with a pre/post
  conditions, discover proof of validity/invalidity.

• Proof is in the form of an invariant at each
  program point that can be locally verified.
• Key Idea
• Initialize invariants at all program points to
  anything.
• Pick a random program point whose invariant is
  not locally consistent and update it to make it
  less inconsistent.

24
Simulated Annealing Outline

• Simulated Annealing
• Inconsistency Measure Penalty Function
• Algorithm
• Experiments

25
Inconsistency Measure for an Abstract Domain

• Let A be an abstract domain with ) as the partial
  order and ? as the concretization function.
• An inconsistency measure IM A A !0,1
  satisfies
• IM(?1,?2) 0 iff ?1 ) ?2
• IM is monotonically decreasing in its first
  argument
• IM is monotonically increasing in its second
  argument
• IM is a monotonic (increasing) measure of ?(?1) -
  ?(?2) set of states that violate ?1 ) ?2. The
  more strictly monotonic IM is, the more smooth it
  is.

26
Example of a Smooth Inconsistency Measure

• Let A be the abstract domain of Boolean formulas
  (with the usual implication as the partial
  order).
• Let ?1 a1 Ç Ç an in DNF
• and ?2 b1 Æ Æ bm in CNF
• IM(?1, ?2) IM(ai,bj)
• where IM(ai,bj) 0, if ai ) bj
• 1, otherwise

27
Penalty Function

• Penalty(I,?) is a measure of how much
  inconsistent is I with respect to the invariants
  at neighbors of ?.
• Penalty(I,?) IM(Post(?), I) IM(I,Pre(?))
• Post(?) is the strongest postcondition of the
  invariants at the predecessors of ? at ?.
• Pre(?) is the weakest precondition of the
  invariants at the successors of ? at ?.

28
Example of Penalty Function

• Penalty(I, ?2) IM(Post(?2), I) IM(I, Pre(?2))

?1
P
s
?2

• Post(?2) StrongestPost(P,s)
• Pre(?2) (c ) Q) Æ ( c ) R)

I
c
?4
?3
Q
R

• Since Post(?) and Pre(?) may not belong to A, we
  define
• IM(Post(?), I) Min IM(I1,I) I12A, I1
  overapproximates Post(?)
• IM(I, Pre(?)) Min IM(I,I2) I22A, I2
  underapproximates Pre(?)

29
Simulated Annealing Outline

• Simulated Annealing
• Inconsistency Measure Penalty Function
• Algorithm
• Experiments

30
Algorithm

• Search for proof of validity and invalidity in
  parallel.
• Same algorithm with different boundary
  conditions.
• Proof of Validity
• Ientry Pre
• Iexit Post
• Proof of Invalidity
• Ientry Æ Pre is satisfiable
• Iexit Post
• This assumes that program terminates on all
  inputs.

31
Algorithm (Continued)

• Initialize invariant Ij at program point ?j to
  anything.
• While penalty at some program point is not 0
• Choose j randomly s.t. Penalty(Ij, ?j) ? 0.
• Update Ij s.t. Penalty(Ij,?j) is minimized.
• More precisely, Ij is chosen randomly with
  probability inversely proportional to
  Penalty(Ij,?j).

32
Interesting Aspects of the Algorithm

• Combination of Forward Backward Analysis
• No distinction between forward backward
  information
• Random Choices
• Program point to update
• Invariant choice

33
Simulated Annealing Outline

• Simulated Annealing
• Inconsistency Measure Penalty Function
• Algorithm
• Experiments

34
Example 2
x 0
Proof of Validity
Prog. Point Invariant
?1 x0 Æ y50
?2 x50 )y50 Æ 50x )xy Æ x100
?3 x50 )y50 Æ 50x )xy Æ xlt100
?4 xlt50 Æ y50
?5 x50 Æ y50
?6 50xlt100 Æ xy
?7 50ltx100 Æ xy
?8 x50 )y50 Æ 50x )xy Æ x100
y 50
?1
?2
x lt100
False
True
?3
y 100
x lt 50
True
False
?6
?4
x x 1 y y 1
x x 1
?5
?7
?8
35
Stats Proof vs Incremental Proof of Validity

• Black Proof of Validity
• Grey Incremental Proof of Validity
• Incremental proof requires fewer updates

36
Stats Different Sizes of Boolean Formulas

• Grey 53, Black 43, White 32
• nm denotes n conjuncts m disjuncts
• Larger size requires fewer updates

37
Example 3
true
Proof of Validity
Prog. Point Invariant
?1 x0 Æ m0
?2 n 0 Ç (0x Æ 0mltn)
?3 n 0 Ç (0xltn Æ 0mltn)
?4 n 0 Ç (0xltn Æ 0mltn)
?5 n 0 Ç (0xltn Æ 0mltn)
?6 n 0 Ç (0xltn Æ 0mltn)
?7 n 0 Ç (0xltn Æ 0mltn)
?8 n 0 Ç (0xn Æ 0mltn)
x 0 m 0
?1
?2
x lt n
False
True
?3
n 0 Ç 0 m lt n
?4
?6
m x
?5
?7
x x 1
?8
38
Stats Proof of Validity

• Example 2 is easier than Example 1.
• Easier example requires fewer updates.

39
Example 2 Precondition Modified
true
Proof of Invalidity
Prog. Point Invariant
?0 x100
?1 x100 Æ y50
?2 x100 Æ y50
?3 false
?4 false
?5 false
?6 false
?7 false
?8 false
y 50
?1
?2
x lt100
False
True
?3
y 100
x lt 50
True
False
?6
?4
x x 1 y y 1
x x 1
?5
?7
?8
40
Stats Proof of Invalidity
41
Conclusion

• Summary
• Random Interpretation
• Linear Arithmetic Affine Joins
• Uninterpreted Functions Random Linear
  Interpretations
• Interprocedural Analysis Symbolic Input
  Variables
• Simulated Annealing
• Smooth Inconsistency Measure for an abstract
  domain

• Lessons Learned
• Randomization buys efficiency and simplicity.
• Randomization suggests ideas for deterministic
  algorithms.
• Combining randomized and symbolic techniques is
  powerful.
