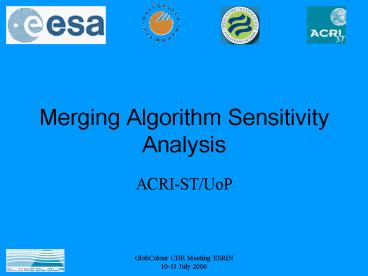

Merging Algorithm Sensitivity Analysis

1
Merging Algorithm Sensitivity Analysis

• ACRI-ST/UoP

2
Content

• Review of the merging procedure
• Averaging, weighted averaging procedure
• Subjective analysis
• Blended analysis
• GSM01 algorithm
• Optimal interpolation
• Example of merged images
• Method of the sensitivity analysis
• Results
• Conclusion

3
Averaging, weight averaging procedure

• Advantages
• Simple to implement
• No source is considered better than another
• Disadvantage
• Requires unbiased data sources
• If error bars of the data source can be
  characterized, a weight average can be implemented

4
Subjective analysis

• Information relevant to the quality of the
  sensors is used to develop a system weighting
  function, used during the merging
• Weighting functions represent variables that may
  determine the performance of a sensor
• Satellite zenith angle
• Solar zenith angle
• Sensor behaviour
• Sun glint
• Advantage
• Relies on scientific and engineering information
• Disadvantages
• Difficult task that requires detailed information
  for each mission involved
• Computationally demanding

5
Blended analysis

• Traditionally applied to merge satellite and in
  situ data
• Principle
• Assumes that in situ data are valid and uses
  these data to correct the final product
• Applied to merge multiple ocean colour data
• in situ data are replaced by data from one or
  more sensor established as superior (better
  characterisation, calibration, viewing
  conditions, )
• Advantage
• can provide a bias correction
• effective at eliminating biases if a "truth
  field" can be identified
• Disadvantage
• the effectiveness of the bias-correction
  capability not well documented in
  satellite-satellite merging.
• Can result in over correction

6
GSM01 algorithm

• A second order Gordon reflectance model (Gordon
  et. al., 1988) used with the optimized parameters
  (Maritorena et. al., 2002)
• In this equation, the absorption coefficient a(?)
  can be written as
• where aw(?), aphyto(?), acdom(?) are the spectral
  absorption coefficient of
• pure water
• phytoplankton cells
• Colored dissolved organic material respectively
• Similarly, bb(?) can be written as
• where bbsw (?), bbp (?) are the
• backscattering coefficient of pure seawater
• backscattering coefficient of particulate matter

7
GSM01 algorithm

• Among these five components
• aw(?) and bbsw (?) are known and constant
• aphyto(?), acdom(?) and bbp (?) change as a
  function of
• Phytoplankton
• CDOM
• particulate matter
• They are modeled as
• aphyto is the chlorophyll a specific absorption
  coefficient
• Chl is the chlorophyll a concentration
• acdom(?0) and bbp (?0) are the CDOM absorption
  coefficient and particulate backscattering
  coefficient at the reference wavelength ?0
• S is the spectral decay constant for CDOM
  absorption
• ? is the power law exponent for particulate
  backscattering coefficient

8
GSM01 algorithm

• Equation
• is therefore a function of three variables
• Chl a, acdom (?0), bbp (?0).
• These three variables are retrieved by minimizing
  the mean square difference MSD
• In this equation, Rrs_modelled refers to
  calculated remote sensing reflectance and
  Rrs_sat refers to the measured remote sensing
  reflectance. The MSD equation was solved using
  the nonlinear method.

Chl acdom(?0) bbp(?0)
9
GSM01 algorithm

• Advantage
• algorithm based on optical theory and not
  empirical relationships
• Generate several products regardless of the
  number of data sources Chl, acdom(?0), bbp(?0)
• Merging done implicitly during the inversion
  process
• Completely different approach
• When different sensors have the same set of
  spectral LwN(?), data are used individually,
  without any averaging or other transformation
• Disadvantage
• Errors associated with the parameterization and
  design of the model influence the quality of the
  merged product
• Computationally demanding

10
Optimal interpolation

• Principle
• weights are chosen to minimize the expected error
  variance of the analysed field
• uses a statistical approach to define weights.
• The weight matrix W represents the error
  correlations (error covariance matrix)
• Advantage
• widespread use in data assimilation problems
• objectivity in selecting the weights
• Good at bias-correction
• Disadvantage
• statistical interpretation of the merged data
  set, as opposed to a scientific evaluation.
• computational complexity
• very slow.
• requires a good knowledge of data accuracy
• shall be adapted from one region to the other
  (according to variogram that is the signature of
  the spatial correlation within each area)
• dependent on a number of additional a priori
  information (e.g. as chlorophyll variability)

11
Spatial characterisation of natural
variability Elementary inputs for optimal
interpolation and objective analysis
Characterisation of the variance through
semi-variogram (to quantify co-variability of
information separated by a distance  d )
i
d
j
12
(No Transcript)
13
One orbit later
14
High fluctuations / regionalisation use of
sensitive a priori information
Large area higher variability
Small area lower variability
15
Other illustrations
Indian ocean
North sea
Mediterranean
North sea
16
Results
Initial daily images

• Global daily chlorophyll product from SeaWiFS,
  MODIS-A and MERIS
• of sea pixels covered
• 11.20
• 8.97
• 4.82

17
Merged chlorophyll

• of sea pixels covered
• 17.65

18
(No Transcript)
19
(No Transcript)
20
Comparison between averaging and GSM01 algorithm
21
Comparison between averaging and GSM01 algorithm
22
Method of the sensitivity analysis

• Sensitivity analysis on chlorophyll concentration
  retrieval for
• GSM01 algorithm
• averaging procedure
• based on global SeaWifs, MODISA and MERIS 9km
  standard map images
• results obtained on June 15th 2003 as an example
• Adding noise to input parameters and evaluating
  the impact on the merged chlorophyll product
• Gaussian errors are introduced on the input
  parameters
• on the nLw for the procedure using the GSM01
  algorithm
• on global chlorophyll products of individual
  sensors for the averaging technique
• Input products for the merging are used as
  available from each sensor
• no attempt was made to weight neither input
  chlorophyll nor input Normalized Water Leaving
  Radiances
• 10 30 error when merging chlorophyll products
• 5 to 10 error with the GSM01algorithm error
  calculated by McClain error calculated in
  the characterisation section
• Presentation of the result for
• 30 error on Chl product
• McClain and Characterisation error on nLw products

23
Sensitivity analysis averaging procedure
24
GSM01 algorithm McClain Characterisation error
25
Sensitivity analysis GSM01 algorithm
SeaWiFS Error
SeaWiFS Error
MODISA Error
MODISA Error
MERIS Error
MERIS Error
All Errors
All Errors
26
GSM01 algorithm Characterisation error
27
Sensitivity analysis GSM01 algorithm
SeaWiFS Error
SeaWiFS Error
MODISA Error
MODISA Error
MERIS Error
MERIS Error
All Errors
All Errors
28
Conclusion

• The averaging procedure showed little sensitivity
  with up to 30 error
• The GSM01 algorithm showed little sensitivity to
  errors from McClain for SeaWiFS and MODIS-A.
  Despite the level of error introduced with the
  characterisation results, the chlorophyll output
  remained in good agreement with the initial
  calculations.
