Phase-Plane Plotting the Nondurable Goods Index

1

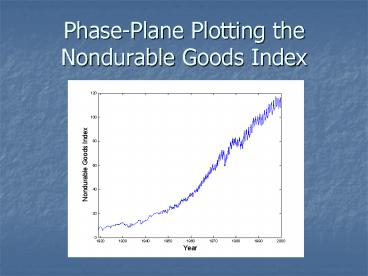

Phase-Plane Plotting the Nondurable Goods Index
2

• Nondurable goods last less than two years Food,
  clothing, cigarettes, alcohol, but not personal
  computers!!
• The nondurable goods manufacturing index is an
  indicator of the economics of everyday life.
• The index has been published monthly by the US
  Federal Reserve Board since 1919.
• It complements the durable goods manufacturing
  index.

3
What we want to do

• Look at important events.
• Examine the overall trend in the index.
• Have a look at the annual or seasonal behavior of
  the index.
• Understand how the seasonal behavior changes over
  the years and with specific events.

4
The log nondurable goods index
5
Events and Trends

• Short term
• 1929 stock market crash
• 1937 restriction of money supply
• 1974 end of Vietnam war, OPEC oil crisis
• Medium term
• Depression
• World War II
• Unusually rapid growth 1960-1974
• Unusually slow growth 1990 to present
• Long term increase of 1.5 per year

6
The evolution of seasonal trend

• We focus on the years 1948 to 1999
• We estimate long- and medium-term trend by spline
  smoothing, but with knots too far apart to
  capture seasonal trend
• We subtract this smooth trend to leave only
  seasonal trend

7
Smoothing the data
We want to represent the data yj by a smooth
curve x(t). The curve should have at least two
smooth derivatives. We use spline smoothing,
penalizing the size of the 4th derivative.
A function Pspline in S-PLUS is available by ftp
from ego.psych.mcgill.ca/pub/ramsay/FDAfuns
8
Three years of typical trend 1964-1966
9
Seasonal Trend

• Typically three peaks per year
• The largest is in the fall, peaking at the
  beginning of October
• The low point is mid-December

10
Non-seasonal trend
11
Seasonal trend
12
Phase-Plane Plots

• Looking at seasonal trend itself does not reveal
  as much as looking at the interplay between
• Velocity or its first derivative, reflecting
  kinetic energy in the system.
• Acceleration or its second derivative, reflecting
  potential energy.
• The phase-plane diagram plots acceleration
  against velocity.
• For purely sinusoidal trend, the plot would be an
  ellipse.

13
Position of a swinging pendulum
14
Phase-plane plot for pendulum
15
Phase-plane plot for 1964

• There are three large loops separated by two
  small loops or cusps
• Spring cycle mid-January into April
• Summer cycle May through August
• Fall cycle October through December

16
A look at the years 1929-1931.
17
(No Transcript)
18
(No Transcript)
19
(No Transcript)
20
1929 through 1931

• The stock market crash shows up as a large
  negative surge in velocity.
• Subsequent years nearly lose the fall production
  cycle, as people tighten their belts and spend
  less at Christmas.

21
What happened in 1937-1938?
22
(No Transcript)
23
(No Transcript)
24
(No Transcript)
25
1937 and 1938

• The Treasury Board, fearing that the economy was
  becoming overheated again, clamped down on the
  money supply. The effect was catastrophic, and
  nearly wiped out the fall cycle.
• This new crash was even more dramatic than that
  of 1929, but was forgotten because of the
  outbreak of World War II.

26
What about World War II?
27
(No Transcript)
28

• During World War II, the seasonal cycle became
  very small, since the war, and the production
  that fed it, lasted all year long.
• Now look at three pivotal years, 1974 to 1976,
  when the Vietnam War ended and the OPEC oil
  crisis happened. Watch the shrinking of the fall
  cycle.

29
(No Transcript)
30
(No Transcript)
31
(No Transcript)
32
What about today?
33
(No Transcript)
34
These days

• Over the last ten years the size of all three
  cycles have become much smaller.
• Why?
• Is variation now smoothed out by information
  technology?
• Are the aging baby boomers spending less?
• Are personal computers, video games, and other
  electronic goods really durable?
• Has manufacturing now moved off shore?

35
Conclusions

• We can separate long- and medium-term trends from
  seasonal trends by smoothing.
• Phase-plane plots are great ways to inspect
  seasonality.
• Derivatives were used in two ways to penalize
  roughness, and to reflect the dynamics of
  manufacturing.

36
Trends in Seasonality

• We see by inspection that seasonal trends change
  systematically over time, and can also change
  abruptly.
• We first estimate the principal components of
  seasonal variation, using a version of principal
  components analysis adapted to functional data,
  and sensitive only to effects periodic over one
  year.

37
(No Transcript)
38
(No Transcript)
39
(No Transcript)
40
The Components

1. Relative sizes of spring and summer cycles (53)
2. Joint size of spring and summer cycles (25)
3. Size of fall cycle (11)

41
Plotting Component Scores

• We can compute scores at each year for these
  three principal components, sometimes called
  empirical orthogonal functions.
• Plotting the evolution of these scores over the
  51 years shows some interesting structural
  changes in the economics of everyday life.

42
(No Transcript)
43
(No Transcript)
44
Wrap-up

• Phase-plane plots are good for inspecting
  seasonal quasi-harmonic trends
• Principal components analysis reveals main
  components of variation in seasonal trend.
• Plotting component scores shows how trend has
  evolved.

45

• This was joint with work with James B. Ramsey,
  Dept. of Economics, New York University, and is
  reported in
• Ramsay, J. O. and Ramsey, J. B. (2001) Functional
  data analysis of the dynamics of the monthly
  index of non-durable goods production. Journal
  of Econometrics, 107, 327-344.
