Hansung Kim and Branko N. Popov

1

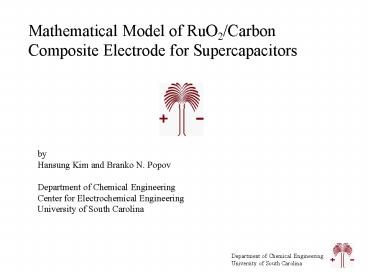

Mathematical Model of RuO2/Carbon Composite
Electrode for Supercapacitors
by Hansung Kim and Branko N. Popov Department
of Chemical Engineering Center for
Electrochemical Engineering University of South
Carolina
2
Review of previous models for supercapacitors
based on pseudocapacitance

• C. Lin, J.A. Ritter, B.N. Popov and R.E. White,
  J. Electrochem. Soc., 146 3169 (1999)
• RuO2 electrode with one dimension
• Particle size effect on the performance
• Surface reaction
• Constant electrolyte concentration
• C. Lin, B.N. Popov and H.J. Ploehn, J.
  Electrochem. Soc., 149 A167 (2002)
• RuO2/Carbon composite electrode with one
  dimension
• Particle size and porosity effect on the
  performance
• Electrolyte concentration changes with discharge
  rate and time
• Surface reaction
• The approach of this study by H. Kim and B.N.
  Popov
• RuO2/Carbon composite electrode with pseudo two
  dimension
• Bulk reaction by considering proton diffusion for
  each particle
• Constant power discharge study
• Optimization of carbon and RuO2 content in the
  electrode

3
Objectives of the modeling study

• Development of general model to expect the
  performance based on operating parameters
• Effect of particle size of active oxide on the
  performance
• Effect of porosity on the rate capability
• Optimization of the ratio between carbon and RuO2


4
Schematic diagram of supercapacitors and reaction
mechanism
5
Faradaic reaction of ruthenium oxide

• Positive electrode

Discharge
Charge

• Equilibrium potential (V vs. SCE)

6
Assumptions

• Porous electrode theory.
• Double layer capacitance per area (Cd) is
  constant for carbon and RuO2.
• Diffusion coefficients are assumed to be
  independent of the concentration variation.
• Side reactions and temperature variation are
  neglected.
• Transport in electrolyte phase is modeled by
  using the concentrated solution theory.
• The exchange current density is constant.
• Transference number and activity coefficient are
  constant.

7
Model description Basic equations and parameters

• Variables

Concentration of electrolyte
Solid phase potential
Solution phase potential
Concentration in solid

• Total current

• Sd (cm2/cm3) Specific surface area for double
  layer capacitance per unit volume

• Sf (cm2/cm3) Specific surface area for
  pseudocapacitance per unit volume

8

• jf (A/cm2) Faradaic current by
  pseudocapacitance

• U1 (V vs. SCE) Equilibrium potential

V0 0.5V

• Conservation of charge

• Solid phase current density

• Effective diffusivity and conductivity

9
Material balance on the electrolyte using
concentration solution theory
Porous electrode
Separator part
10
The variation of potential in the separator and
the porous electrode
Porous electrode
Separator part
11
Boundary and Initial conditions
B.C.
At x 0 (current collector of positive
electrode)
At x Le (interface between separator and
electrode)
At x 2LeLs (current collector of negative
electrode)
I.C.
At t 0, C C0 ,
12
A mass balance of spherical particle of ruthenium
oxide
B.C
r 0
r Rs
13
Parameters used in the model

• Variable values
• Particle size of RuO2
• Porosity of electrodes
• The ratio between RuO2 and carbon
• Discharge current density
• Discharge power density

• Fixed values
• Thickness 100?m for electrode,
• 25 ? m for separator
• Exchange current density 10-5 A/cm2
• Double layer 2?10-5 F/cm2
• Sigma 103 S/cm
• K0 0.8 S/cm
• Density 2.5 g/cm3, 0.9 g/cm3
• D 1.8 ? 10-5 cm2/s
• Ds 10-11 cm2/s
• Transference number 0.814
• Porosity of separator 0.7
• Concentration of electrolyte 1M H2SO4

14
Porosity of the electrode as a function of the
mass fraction of RuO2
Packing theory
15
Effect of the diffusion coefficient of proton in
the solid particle on the capacitance at the
constant current discharge of 30 mA/cm240wt
RuO2 ,Porosity 0.214, Particle size 5nm
16
Discharged energy density curves at the constant
power discharge of 50w/kg for different particle
sizes of RuO2
17
Discharged energy density curves at the constant
power discharge of 4kw/kg for different particle
sizes of RuO2
18
Local utilization of RuO2 at the interface of
separator as a function of particle size at
different discharge rates.
19
Dimensionless parameter, Sc (diffusion in the
solid/discharge time), as a function of particle
size of RuO2
20
Electrochemical performance of the RuO2/carbon
composite electrode (60wt RuO2) with respect to
constant current discharge
Rs 50nm ? 0.181
21
Electrolyte concentration distribution of the
cell at the end of discharge with different
current densites
30 mA/cm2
100 mA/cm2
200 mA/cm2
500 mA/cm2
22
Potential distribution in the electrolyte at the
end of discharge at different current densities
23
Potential distribution in the electrolyte at the
end of discharge at the different porosities of
electrode
? 0..35
? 0.24
? 0.15
RuO2 ratio 60wt Particle size 50nm Current
density 1A/cm2
? 0.09
24
Discharge density as a function of RuO2 content,
particle size and porosity of electrodes at
1.5A/cm2
25
Ragone plot for RuO2/carbon composite electrode
containing different Ru loading using a colloidal
method
26
Conclusions

• The general model was developed successfully to
  expect the performance of oxide/carbon composite
  electrode based on porosity, particle size, the
  content of RuO2 in the electrode.
• It was found that porosity and particle size have
  a tremendous effect on the performance especially
  at high rate discharge.
• With increasing the discharge rate,
  transportation of electrolyte imposes the
  limitation on the performance by increasing
  solution potential drop.
• With increasing the particle size of RuO2, since
  the diffusion process in the solid particle is a
  limiting step, the discharge stops before the
  RuO2 particle has fully been utilized.
• Increasing porosity decreased the electrolyte
  deviation and solution potential drop. After the
  porosity increases up to about 0.15, the particle
  size is important to get a high performance until
  the discharge rate of 1.5A/cm2
