Graphics and Client Design

1

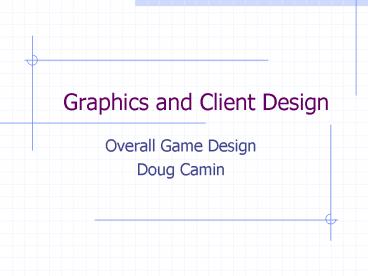

Graphics and Client Design

• Overall Game Design
• Doug Camin

2
The Watson Game

• Opens to splash screen
• User enters login\pass and either creates player
  or accesses existing

3
Game Play

• Win by achieving a 4.0 GPA
• Earn GPA by completing challenges
• Advance through classes by completing set number
  of challenges

4
Game Display

• Top portion of screen shows building and can be
  navigated with mouse or keyboard
• Lower portion is view port, shows necessary game
  information
• Knapsack
• Map
• GPA
• Elapsed challenge time

5
Challenges

• Challenges are linear only one at a time
• Game has six predefined challenges
• All are stored on server, can be changed
• Challenge grade based on two main factors
• Time to completion (elapsed time)
• Pre-defined attributes for character

6
Challenges Continued

• To complete a challenge, user must
• Have all items to complete challenge in knapsack
• Select all items required and click Complete
  Challenge button
• If challenge is not completed in time allotted,
  .25 subtracted from GPA

7
Items

• The game has eight items for use
• Pencil
• Paper
• Computer
• Soda
• Candy Bar
• Money
• Books
• Printer (or printed pages)

8
Winning The Game

• Each player wins when they achieve a 4.0 GPA

9
Challenge Class

• In client, this class will load and store all
  challenge information from the server
• Information loaded at start time
• Provides interface to locally access current game
  challenges

10
The Knapsack

• Presented by
• Samantha Weitzman

11
Item Class Objects

• int Item_ID
• string item_Type
• Contain methods to retrieve the ID and Type

12
Predefined Item Types

• candy bar
• money
• book

• computer
• printer
• soda

13
Knapsack Class

• Contains a vector of Items
• Methods to add, remove, use Items
• insert_Item(string item_name)
• insert_Item(int item_id)
• remove_Item(string item_name)
• remove_Item(int item_id)
• Item use_Item(string item_name)
• Item use_Item(int item_id)

14
Knapsack Interaction

• When a player uses the group of items for a
  challenge, they are removed from the knapsack
  and placed back into the game play

15
Player Creation

• Presented by Dominic Tsang

16
Client Side Implementation

• Class named PersonClass
• We are client group so this is strictly our
  implementation but it will be pretty important to
  others as well
• Relevant for
• Group 1
• Challenge Information
• Group 3
• Character Creation
• Challenge Dispatching

17
PersonClass Object

• PersonClass
• Holds private variables such as GPA, attributes
• KnapSackClass
• Exists within PersonClass

18
Person Attributes

• Decided through group development
• Attributes can only be raised through initial
  distribution or through task completions
• So far we have decided
• Stamina how well a character deals with the
  unremitting cascade of work a CS major is
  expected to face
• Humor see poor attempt above
• Health undecided on its affects on game play
• Intelligence -undecided
• 1 more planned! Input welcome!

19
Flow Diagram
Main Client Program
PersonClass
Other Client Side Classes
KnapSack
20
PersonClass Also Contains Information On

• Position of player
• Completed task count
• Character name
• Current challenge attempting
• more to come
• Student standing?
• Fatigue?

21
Additional comments

• Logically this class will act as the file to be
  saved
• Will have no direct connection to anything but
  knapsack and main client program all server and
  db communication handled through protocol handler

22
Graphics and Client Design

• User Interface
• Mo, JianYi

23
Class HotSpot

• predefined
• Representation
• Rectangle
• Where?
• Hallway and offices

24
Class HotSpot

• Types
• Item (1)
• Challenge (2)
• Player can acquire the item
• Player must accept the challenge

25
Class InteractionManager

• manipulates the interaction between the player
  and the challenge

26
InteractionManager
27
InteractionManager

• Challenge
• Linear (one at a time)
• Caused by collision with hot spots
• Manager class will start timer on the challenge
• GPA increases if the play completed the
• Challenges on time

28
InteractionManager

• If the play completed the challenge, the manager
  will update the attributes of the player and the
  items in the knapsack

29
Protocol HandlerError Handler

• Luis Miranda

30
Protocol Handler Overview
31
Protocol Interface

• The main class used by the client program to
  communicate with server.
• Note the order of communication.

32
Protocol Interface Methods

• Connect to Server
• Login User
• Load User , Save User, Create New User
• Get Current Player List
• Update Game State
• Get Knapsack Info
• Get Challenge Info
• Get Item Info
• Disconnect

33
Message Handler

• Packets will be sent to the server through this
  class. The type of packet to send is determined
  by the Protocol Interface.
• Contains a queue of messages being sent to the
  server. Server may be busy.
• Messages will not contain a priority, all packets
  are of equal importance.
• Incoming data from the server will be sent to
  the appropriate client object.
• Example Information about Person will be sent
  directly to Person Object.

34
Message Types

• Contains the structure of the different packets
  to be sent to the server.
• A save packet will have different information
  than a load items packet.
• These types must be recognized by the server.
  This is done be having a standardized ID for each
  packet type.

35
Socket

• Contains all protocol logic such as send and
  receive packet.
• Also used to connect to a server listening on
  specific port and IP.
• Provided by Todd Barron.

36
Graphics Handling and GUI

• Bedros Magardichian

37
GUI and Game Scenes

• Menu Scene- Log in screen and select gaming
  options
• GamePlay Scene- Display 3D world and stats
  viewport
• Knapsack Scene- Display contents of knapsack
• Challenge Scene- Display Challenge Screen

38
Game Scene Menu
39
Game Scene 3D
40
Knapsack Scene
41
Challenge Scene
42
Game Scene Inheritance

• CWatsonGame

CWatsonGameMenu Displays Menu
CWatsonGamePlay 3D game play and Viewport
CWatsonGameKnapsack Display visual
knapsack contents
43
Rendering

• 3D OpenGL
• Navigate through 3D model of Watson Building
• Final model will include textures to represent
  Watson building

44
3D Watson Model
45
Navigation

• First person video game walking- look with
  mouse- walk with keyboard
• Collision Detection from generated mesh
• Issues passage ways must accommodate diameter
  of collision sphere of person

46
Error Handler

• Accessible by all classes of the client program.
• User may post error messages to the Error
  Handler object.
• Can force a save game state, to help prevent
  corruption of data.
• Writes error message to log file
• Displays error message on screen
• Can send error message to the server
