Chapter 1 Interconnect Extraction

1

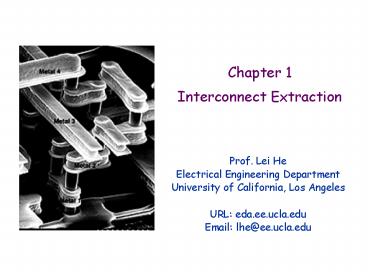

Chapter 1Interconnect Extraction

• Prof. Lei He
• Electrical Engineering Department
• University of California, Los Angeles
• URL eda.ee.ucla.edu
• Email lhe_at_ee.ucla.edu

2
Outline

• Capacitance Extraction
• Introduction
• Table based method
• Formula based method
• Inductance Extraction
• Introduction
• Table based method
• Formula based method
• RLC circuit model generation
• Full model and normalized model
• Inductance truncation via L-1 model
• Finite element method (FEM) based Extraction
• Overview of FEM
• FEM based Extraction Flow
• Homework

3
Full RLC Circuit Model
Ls(wire12)

• Self inductance
• L11 N11 N12 val
• L12 N13 N14 val
• L21 N21 N22 val
• L22 N23 N24 val
• mutual inductance
• K1 L11 L21 val
• K2 L12 L22 val
• K3 L11 L12 val
• K4 L21 L22 val
• K5 L11 L22 val
• K6 L21 L12 val

N13
N11
N14
N12
N23
N21
N24
N22

• For n wire segments per net
• RC elements n
• self inductance n
• mutual inductance n(n-1)

Lm(wire21, wire12) / sqrt(L21 L12)
4
Normalized RLC Circuit Model
Ls(net1)

• Self inductance
• L11 N11 N12 val
• L12 N13 N14 val
• L21 N21 N22 val
• L22 N23 N24 val
• mutual inductance
• K1 L11 L21 val
• K2 L12 L22 val

N13
N11
N14
N12
N23
N21
N24
N22
Lm(net1, net2) / sqrt(net1 net2)

• For n segments per wire
• RC elements n
• Self inductance n
• Mutual inductance n

5
Full Versus Normalized

• Two waveforms are almost identical
• Running time
• Full 99.0 seconds
• Normalized 9.1 seconds

6
Application of RLC model

• Shielding Insertion
• To decide a uniform shielding structure for a
  given wide bus
• Ns number of signal traces between two
  shielding traces
• Ws width of shielding traces

Ws
Ws
Ws
...
...
1
2
3
Ns
1
2
3
Ns
7
Trade-off between Area and Noise

• Total 18 signal traces
• 2000um long, 0.8um wide
• separated by 0.8um
• Drivers -- 130x Receivers -- 40x
• Power supply 1.3V

Ns Ws Noise(v) Routing Area (um) Wire Area (um)
18 -- 0.71 61.1(0.0) 46.4(0.0) 6 0.8 0.38 64.
8 48.0 6 1.6 0.27 66.4 49.6 6 2.4 0.22 68.0
51.2 3 0.8 0.17 69.6(13) 50.4(8.8)
8
References

• Original paper
• M. Xu and L. He, "An efficient model for
  frequency-based on-chip inductance," IEEE/ACM
  International Great Lakes Symposium on VLSI, West
  Lafayette, Indiana, pp. 115-120, March 2001.
• More detailed justification
• Tao Lin, Michael W. Beattie, Lawrence T. Pileggi,
  "On the Efficacy of Simplified 2D On-Chip
  Inductance Models," pp.757, 39th Design
  Automation Conference (DAC'02), 2002

9
Outline

• Capacitance Extraction
• Introduction
• Table based method
• Formula based method
• Inductance Extraction
• Introduction
• Table based method
• Formula based method
• RLC circuit model generation
• Full model and normalized model
• Inductance truncation via L-1 model
• Finite element method (FEM) based Extraction
• Overview of FEM
• Frequency-independent extraction
• Frequency-dependent extraction
• Homework

10
Inductance Screening

• Accurate modeling the inductance is expensive
• Only include inductance effect when necessary
• How to identify?

11
Off-chip Inductance screening

• The error in prediction between RC and RLC
  representation will exceed 15 for a
  transmission line if
• CL is the loading at the far end of the
  transmission line
• l is the length of the line with the
  characteristic impedance Z0

12
Conditions to Include Inductance

• Based on the transmission line analysis, the
  condition for an interconnect of length l to
  consider inductance is
• R, C, L are the per-unit-length resistance,
  capacitance and inductance values, respectively
• tr is the rise time of the signal at the input of
  the circuit driving the interconnect

13
On-chip Inductance Screening

• Difference between on-chip inductance and
  off-chip inductance
• We need to consider the internal inductance for
  on-chip wires
• Due to the lack of ground planes or meshes
  on-chip, the mutual couplings between wires cover
  very long ranges and decrease very slowly with
  the increase of spacing.
• The inductance of on-chip wires is not scalable
  with length.

14
On-Chip Self Inductance Screening Rules

• The delay and cross-talk errors without
  considering inductance might exceed 25 if
• where fs 0.34/tr is called the significant
  frequency

15
On-Chip Mutual Inductance Screening Rules

• Empirical rules (2x rule)
• Most of the high-frequency components of an
  inductive signal wire will return via its two
  quiet neighboring wires (which may be signal or
  ground) of at least equal width running in
  parallel
• The potential victim wires of an inductive
  aggressor (or a group of simultaneously switching
  aggressors) are those nearest neighboring wires
  with their total width equal to or less than
  twice the width of the aggressor (or the total
  width of the aggressors)
• Wires of reversed switching are more effective
  for current return compared to quiet wires

16
Matrix-based Inductance Sparsification/Screening

• Capacitance Matrix Sparsification
• Capacitance is a local effect
• Directly truncate off-diagonal small elements
  produces a sparse matrix.
• Guaranteed stability (no negative eigenvalue)

17
Inductance Matrix Sparsification

• L Matrix Sparsification
• Inductance is not a local effect
• L matrix is not diagonal dominant
• Directly truncating off-diagonal elements cannot
  guarantee stability

18
Inductance Matrix Sparsification

• Direct Truncation of

19
References

• Original paper
• Devgan, A., Ji, H., and Dai, W. How to
  efficiently capture on-chip inductance effects
  introducing a new circuit element K.
  International Conference on Computer Aided Design
  (ICCAD), 2000.
• Double Inversion
• Kaushik Roy, Cheng-Kok Koh, and Guoan Zhong,
  On-chip interconnect modeling by wire
  duplication , ICCAD, 2002
• Simulator for k-element
• Hao Ji, Anirudh Devgan and Wayne Dai, KSim a
  stable and efficient RKC simulator for capturing
  on-chip inductance effect . ASP-DAC '01.

20
Reading Assignment

• 1 Norman Chang, Shen Lin, O. Sam Nakagawa,
  Weize Xie, Lei He, Clocktree RLC Extraction with
  Efficient Inductance Modeling. DATE 2000
• 2 Devgan, A., Ji, H., and Dai, W. How to
  efficiently capture on-chip inductance effects
  introducing a new circuit element K.
  International Conference on Computer Aided
  Design, 2000.
• 3 Yin, L and He, L. An efficient analytical
  model of coupled on-chip RLC interconnects. In
  Proceedings of the 2001 Asia and South Pacific
  Design Automation Conference (Yokohama, Japan).
  ASP-DAC 2001

21
Conclusions

• Inductance is a long-range effect
• Inductance can be extracted efficiently use PEEC
  model
• Normalized RLC circuit model with a much reduced
  complexity can be used for buses
• Full RLC circuit model should be used for random
  nets, and sparse inductance model may reduce
  circuit complexity

22
Outline

• Capacitance Extraction
• Introduction
• Table based method
• Formula based method
• Inductance Extraction
• Introduction
• Table based method
• Formula based method
• RLC circuit model generation
• RLC circuit model
• Inductance screening
• Finite element method (FEM) based Extraction
• Introduction
• frequency-independent RC
• Frequency-dependent resistance and inductance
• Homework

23
Overview of FEM

• Boundary Value Problem Piece-wise Polynomial
  Approximation
• Essence of FEM Piece-wise approximation of a
  function by means of polynomials each defined
  over a small element and expressed as nodal
  values of the function.

24
FEM Collocation method

• BVP
• Approximation onresidual form

• Collocation method
• Select m collocation points
• Let the residual be zero at these points.

25
FEM - basis

• Principal Attraction
• Approximation solutions can be found for problems
  that cannot otherwise be solved, e.g., there is
  no closed form, or analytical solution.
• FEM Advantages
• Applicable to any field problem.
• No geometric restriction.
• Boundary conditions not restricted.
• Approximation is easily improved with more
  refined mesh.

26
FEM based Extraction Flow

• 3-D Capacitance extraction using FEM FastCap,
  MIT92
• Discretization of the charge on the surface of
  each conductor.(charge distributed evenly on
  each panel)
• Assign excitation voltage to one conductor at a
  time
• Form linear system Pqv
• P potential coefficient matrix
• q charge vector
• v potential vector
• Solve Pqv for charge q on all conductor panels.
• Charge on excited conductor gives self
  capacitance.
• Charge on other conductors gives mutual
  capacitance.

27
FEM based Extraction Flow

• 3-D Inductance Extraction using FEM
• fasthenry, MIT94
• Partition conductor into filaments (current
  distributed evenly)

• Ib is the current vector of b filaments
• Vb is the branch voltage vector.
• R is a diagonal matrix of filament dc
  resistances.
• L is a matrix of partial inductance li is a
  unit vector along the length of filament i ai
  is the cross section area Vi and Vj are the
  volumes of filaments i and j, respectively.

28
FEM based Extraction Flow

• M mesh matrix
• Im vector of mesh currents at mesh
  loops.
• Vs vector of source branch voltages.

• Set voltage source Vs1
• Solve for the entries of
  Im associated with the source branches.
• With voltage Vs1 and current Is1 at terminal
  of conductor, the impedance can be obtained

29
Inductance Calculation from filament to wire

• In order to catch the frequency-dependence, a
  wire can be divided into filaments, where current
  is assumed to be uniform in filaments.
• For each filament, formulae can be used to get
• Self-inductance
• Mutual-inductance between it with any other
  filament.
• Problem how to get wire inductance with those of
  filaments?

30
Inductance Calculation from filament to wire

• Assume conductor Tk has P filaments, and Tm has Q
  filaments
• Mutual Inductance
• Self Inductance
• If km, Lpkm is the self Lp for one conductor

• Lpkm is the mutual inductance between conductor
  Tk and Tm
• Lpij is the mutual inductance between filament i
  of Tk and filament j of Tm

31
Reading Assignment

• 1 K. Nabors and J. White, FastCap A multipole
  accelerated 3-D capacitance extraction program,
  IEEE Trans. Computer-Aided Design, 10(11)
  1447-1459, 1991.
• 2 W. Shi, J. Liu, N. Kakani and T. Yu, A fast
  hierarchical algorithm for three-dimensional
  capacitance extraction, IEEE Trans. CAD, 21(3)
  330-336, 2002
• 3 M. Kamon, M. J. Tsuk, and J. K. White,
  Fasthenry a multipole-accelerated 3-D
  inductance extraction program, IEEE Trans.
  Microwave Theory Tech., pp. 1750 - 1758, Sep
  1994.
• 4 http//www.rle.mit.edu/cpg/research_codes.htm
  (FastCap, FastHenry, FastImp)

32
Homework (due April 15)

• (1) Given three wires, each modeled by at least 2
  filaments, find the 3x3 matrix for
  (frequency-independent) inductance between the 3
  wires.
• (2) Build the RC and RCL circuit models in SPICE
  netlist for the above wires. We assume that the
  ground plane has infinite size and is 10 um away
  for the purpose of capacitance calculation.
  (hint, use a matlab code to generate matrix and
  SPICE netlist)
• (3) Assume a step function applied at end-end,
  compare the four waveforms at the far-end for the
  central wire using SPICE transient analysis for
  (a) RC and RLC models and (b) rising time is
  10ps and 10ns, respectively.

• W4um, T2um, l60um, H10um,
• Copper conductor? 0.0175mm2/m (room
  temperature), µ 1.25610-6H/m, free space
  ?08.8510 -12F/m

H
33
Step 1
Filament 6
Filament 1

• Discretization and L calculation
• Discretize 3 wires into 6 filaments.
• For each filament, calculate its self-inductance
  with (e.g.)
• For each pair of filament, calculate the mutual
  inductance with (e.g.)

• Different filaments and formulae may be used for
  better accuracy.

34
Step 2

• Calculate inductance matrix of three wires
• Mutual Inductance
• Self Inductance
• If km, Lpkm is the self Lp for one conductor

• Lpkm is the mutual inductance between conductor
  Tk and Tm
• Lpij is the mutual inductance between filament i
  of Tk and filament j of Tm

35
Step 3

• Capacitance Calculation

• C1 and C5 equals to average of those for the
  following two cases
• single wire over ground
• three parallel wires over ground
• Total cap below needs to be split into ground and
  coupling cap

36
Step 4

• Resistance Calculation
• ? 0.0175mm2/m
• l is length of wire
• A is area of wires cross section
• Generate RC and RCL net-list for SPICE simulator.
  Compare their waveforms

Suggested Input VDD 1 0 PULSE(0 1 0 10ps)
Output
volt
1
10ps
50ps
time
Input
37
Accurate result

• L matrix (three wires Unit H)
• Capacitance (F)

C1 C2 C3 C4
C5 2.8e-12 2.28e-14 1.3e-13
2.28e-14 2.8e-12
38
Waveform from different models

• RC model RLC model
