Test Detail :-

1

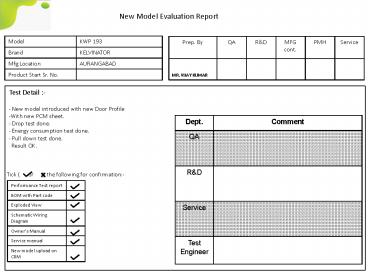

New Model Evaluation Report
Model KWP 193
Brand KELVINATOR
Mfg Location AURANGABAD
Product Start Sr. No.
Prep. By QA RD MFG cont. PMH Service

MR. VIJAY KUMAR
Test Detail -

• New model introduced with new Door Profile
• With new PCM sheet.
• Drop test done.
• Energy consumption test done.
• Pull down test done.
• Result OK.

Dept. Comment
QA
RD
Service
Test Engineer
Tick ( or ) the following for
confirmation-
Performance Test report
BOM with Part code
Exploded View
Schematic Wiring Diagram
Owners Manual
Service manual
New model upload on CRM
2
New Model - Feature List
NEW MODEL
OLD MODEL

• Features
• Transparent Accessories
• Wire Shelves
• 3 Star

190 L Direct cool Refrigerator 115 524 x650 x
1137 570 x 670 x 1205 Net 33 , Gross
37 220-240V/50Hz Blue plant

• Capacity kg
• Product
• Input wattage
• Product Dim L x W x H
• Packing Dim L x W x H
• Weight kg
• Voltage
• Colour

New Model Name KWP193 New Model Sap Code
KWP193XXRDA
Old Model Name KHE 193
3
New Model Change part list
S.r.No. Object ID Object description Quantity

1 1200034185 CABINET,FOAMED,S192,DARK GREY 1
2 1200033517 ASSY,DOOR,FOAMED,KWP194,SILVER HAIR LINE 1
3 1100033142 COVER,HINGE,TOP,S192,DARK GREY 1
4 1100052208 SUPPORT,GPPS,UTILITY,KWP194 2
5 1100052209 SUPPORT,GPPS,BOTTLE,KWP194 2
6 1200027391 ASSY,DOOR,EVAP,WELDED,GPPS, KHL194 1
7 1200027389 TRAY,GPPS,CHILL,WITH INSULA, KHL194 1
8 1100043630 CRISPER,GPPS, KHL194 1
9 1100052939 STICKER,PVC COATED,STAR RATING KWP193 1
10 1100000493 TRAY,GPPS,EGG 6,S215 1
4
New Model - PACKING BOX
FRONT
SIDE
5
New Model - EXPLODED VIEWS
SL NO SAP CODE DESCRIPTION UNIT
1 1200035014 ASSY,DOOR,FOAMED,KWP193,BLACK ONE POINT PC
1 1200035012 ASSY,DOOR,FOAMED,KWP193,LIGHT BLUE POINT PC
1 1200035011 ASSY,DOOR,FOAMED,KWP193,MAROON ONE POINT PC
1 1200033517 ASSY,DOOR,FOAMED,KWP194,SILVER HAIR LINE PC
1 1200034885 ASSY,DOOR,FOAMED,KWP194,SILVER LOTUS PC
1 1200035013 ASSY,DOOR,FOAMED,KWP193,SILVER ONE POINT PC
2 1100000493 TRAY,GPPS,EGG 6,S215 PC
3 1100052208 SUPPORT,GPPS,UTILITY,KWP194 PC
4 1100052209 SUPPORT,GPPS,BOTTLE,KWP194 PC
5 1100043799 GASKET,DOOR,VAE173,LIGHT GREY PC
6 1100053161 HANDLE,BASE,KWE193,DARK GREY PC
6 1100054592 HANDLE,BASE,KWE193,LIGHT BLUE PC
6 1100052196 HANDLE,BASE,KWE193,BURGUNDY RED PC
6 1100052199 HANDLE,BASE,KWE193,SILKY GREY PC
7 1100052205 HANDLE ,INSERT,KWP194,CHROME PLATED PC
8 1100053165 HANDLE,DECO,KWE193,DARK GREY PC
8 1100054593 HANDLE,DECO,KWE193,LIGHT BLUE PC
8 1100052200 HANDLE,DECO,KWE193,BURGUNDY RED PC
8 1100052203 HANDLE,DECO,KWE193,SILKY GREY PC
6
New Model - EXPLODED VIEWS
SL NO SAP CODE DESCRIPTION UNIT
1 1100033142 COVER,HINGE,TOP,S192,DARK GREY PC
1 1100052903 COVER,HINGE,TOP,S192,LIGHT BLUE PC
1 1100029225 COVER,HINGE,TOP,S192,BURGUNDY RED PC
1 1100033555 COVER,HINGE,TOP,S192,SILKY GREY PC
2 1100029221 HINGE,TOP,S192 PC
3 1100000454 SWITCH,DOOR S169 PC
4 1100041111 HINGE,BOTTOM,WITH ADJUSTER BOLT,S192 PC
5 1100031414 BOLT,ADJUSTER,40MM,GREY PC
6 1100000506 TRAY,ICE,COMMON PC
7 1100029239 PANEL,ROLL BOND,S192,PAINTED PC
8 1100029240 THERMOSTAT,S192 PC
9 1100029242 SOCKET,ROOM LAMP,S192 PC
10 1100000298 LAMP 10/12 W - 240 V PC
11 1100029227 DIAL,THERMOSTAT,S192 PC
12 1100031517 BUTTON,PUSH,DEFROST,S192,APPLIANCES BLUE PC
13 1100031591 TRIM,EVAPORATOR,S192 PC
14 1100043633 DOOR,EVAPORATOR,GPPS, KHL194 PC
15 1200027389 TRAY,GPPS,CHILL,WITH INSULA, KHL194 PC
16 1100000399 SHELF NET W/O PROJ.S173DLX/S175/S215 PC
17 1100000159 CRISPER,GLASS,BIG PC
18 1100043630 CRISPER,GPPS, KHL194 PC
7
New Model - EXPLODED VIEWS
SL NO SAP CODE DESCRIPTION UNIT
1 1100000127 CONDENSER,WITHOUT OIL COOLER,S169 PC
2 1100000199 DRYER,XH-,7,PP (7.5 GMS) PC
3 1100000086 CANOPY,COMPRESSOR,S169 PC
4 1100016372 COVER,PROTECTOR,NECCHI PC
5 1100040657 MAINS CORD,FOR KULTHRON COMPRESSOR PC
6 1100045467 COMPRESSOR,HHETR,5TV PC
7 1100045854 OLP,166 RFB YY 53  PC
8 1100045252 PTC,START RELAY,8EA,8EA19C3 PC
8
New Model - WIRING DIAGRAM
9
Model Test report
10
MP
12.09.2009 to 12.09.09
Model
Swapnil
A/B
OK
Startability Test 43C
Ref.190Lts
Ref. 190Lts
11
MP
13.09.2009 to 13.0.09
Model
Swapnil
A/B
OK
Pull Down Test 43C
Ref.190Lts
Ref. 190Lts
12
ES
13.09.2009 to 14.09.09
Model
Swapnil
A/C
OK
Pull Down Test 32C
Ref.190Lts
Ref. 190Lts
13
MP
19.09.2009 to 20.09.09
Model
Swapnil
A/B
OK
Cycle Test 43C
Ref.190Lts
Ref. 190Lts
14
MP
17.09.2009 to 18.09.09
Model
Swapnil
A/B
OK
Cycle Test 32C
Ref.190Lts
Ref. 190Lts
15
MP
19.09.2009 to 20.09.09
Model
Swapnil
A/B
OK
Ice Making Test 43C
Ref.190Lts
Ref. 190Lts
16
ES
27.11.2009 to 30.11..09
Model
Swapnil
In OQA
OK
Door Open Close Test
Ref.190Lts
Ref. 190Lts

• Test Condition-
• one liters 8 bottles in Ref..door.
• 10000 time Ref door open close
