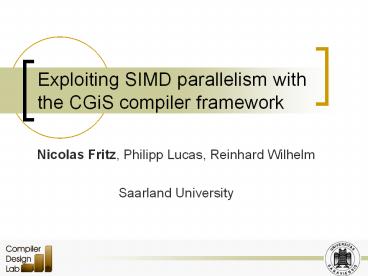

Exploiting SIMD parallelism with the CGiS
compiler framework

• Nicolas Fritz, Philipp Lucas, Reinhard Wilhelm
• Saarland University

2
Outline

• CGiS
• Language, compiler and GPU back-end
• SIMD back-end
• Hardware
• Challenges
• Transformations and optimizations
• Experimental results
• Future Work
• Conclusion

3
CGiS

• C-like data-parallel programming language
• Goals
• Exploitation of parallel processing units in
  common PCs (GPU, SIMD units)
• Easy access for inexperienced programmers
• High abstraction level
• 32-bit scalar and small vector data types
• Two forms of explicit parallelism
• SPMP (iteration), SIMD (vector types)

4
CGiS Example YUV to RGB
PROGRAM yuv_to_rgb INTERFACE extern in float3
YUVlt_gt extern out float3 RGBlt_gt CODE procedure
yuv2rgb (in float3 yuv, out float3 rgb) rgb
yuv.x 0, 0.344, 1.77 yuv.y 1.403,
0.714, 0 yuv.z CONTROL forall (yuv in YUV,
rgb in RGB) yuv2rgb (yuv, rgb)
5
CGiS Compiler Overview
6
CGiS for GPUs

• nVidia G80
• 128 floating points units
• Scalar and vector data processible
• 2-on-2 mapping of CGiS parallelism
• Code generation for various GPU generations
• NV30, NV40, G80, CUDA
• Limited access to hardware features through the
  driver

7
SIMD Hardware

• Every common PC features SIMD units
• Intels SSE and Freescales AltiVec
• SIMD parallelism not easily accessible for
  standard compilers
• Well-known vectorization problems
• Data access
• Hardware requires 16-byte aligned loads
• Slow but cached
• Only 4-way SIMD vector parallelism usable

8
The SIMD Back-end

• Goal is mapping of CGiS parallelisms to SIMD
  hardware
• 2-on-1 mapping
• SIMD vectorization problems
• Avoided by design data dependency analyses
• Control flow
• Divergence in consecutive elements
• Misalignment and data layout
• Reordering might be needed
• Gathering operations are bottle-necks in
  load-heavy algorithms on multidimensional streams

9
Transformations and Optimizations

• Control flow conversion
• If/loop conversion
• Loop sectioning for 2D streams
• Increase cache performance for gather accesses
• Kernel flattening
• IR transformation that replaces compound
  variables and operations by scalar ones
• 2-on-1

10
Control Flow Conversion

• Full inlining
• If/loop converison with slightly modified
  Allen-Kennedy algorithm
• No guarded assignments
• Masks for select operations are the results of
  vector compares
• Live and written variables after a control flow
  join are copied at the branching
• Select operations are inserted at the join

11
Loop Sectioning

• Adaptation of iteration sequence to better
  exploit cached data
• Only interesting for 2D streams
• Iterations subdivided in stripes
• Width depends on access pattern, cache size and
  local variables

12
Kernel Flattening
procedure yuv2rgb (in float3 yuv, out float3 rgb)
rgb yuv.x 0, 0.344, 1.77 yuv.y
1.403, 0.714, 0 yuv.z

• SIMD vectorization for yuv2rgb not applicable
• Thus flatten the procedure or kernel
• Code transformation on the IR
• All variables and all statements are split into
  scalar ones
• Those can be subjected to SIMD vectorization

13
Kernel Flattening Example
procedure yuv2rgb_f (in float yuv_x, in float
yuv_y, in float yuv_z, out float rgb_x,
out float rgb_y, out float rgb_z) float cy
0.344, cz 1.77, dx 1.403, dy 0.714
rgb_x yuv_x dx yuv.z
rgb_y yuv_x cy yuv.y dy yuv.z rgb_z
yuv_x cz yuv.y

• Procedure yuv2rgb_f now features data types
  suitable to be SIMD-parellelized

14
Kernel Flattening

• But data layout doesnt fit
• No stride-one access for single components
• Reordering of data required
• Locally via permutes or shuffles
• Globally via memory copy

15
Kernel Flattening Data Reorderig
16
Global vs. Local Reordering

• Global reordering
• Reusable for further iterations
• Simple, but expensive in-memory copy
• Destroys locality for gather accesses
• Local reordering
• Original stream data untouched
• Insertion of possibly many relatively cheap
  in-register permutation operations
• Locality for gathering preserved

17
Experimental Results

• Tested on Intel Core 2 Duo 1.83GHz and PowerPC G5
  1.8GHz
• Compiled with intrinsics on gcc 4.0.1
• Examples
• Image processing Gaussian blur
• Loop sectioning
• Computation of mandelbrot set
• Control flow conversion
• Block cipher encryption rc5 encryption
• Kernel flattening

18
Experimental Results
19
Future Work

• Replace intrinsics by inline-assembly
• Improvement of conditionals
• Better control over register allocation
• Improvement of register re-utilization for
  AltiVec
• Raises with inline-assembly
• Cell back-end
• SIMD instruction set close to AltiVec
• Work list algorithm to distribute stream parts to
  single PEs
• More applications

20
Conclusion

• CGiS abstracts GPUs as well as SIMD units
• SIMD back-end of the CGiS compiler produces
  efficient code
• Other transformations and optimizations needed
  than for the GPU backend
• Full control flow conversion needed
• Gather accesses gain speed with loop sectioning
• Kernel flattening enables better exploitation
