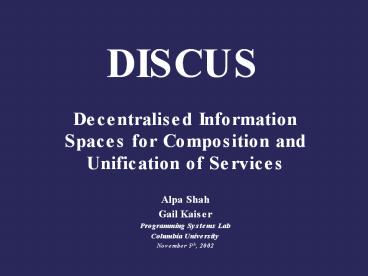

DISCUS

1
DISCUS

• Decentralised Information Spaces for Composition
  and Unification of Services
• Alpa Shah
• Gail Kaiser
• Programming Systems Lab
• Columbia University
• November 5th, 2002

2
Agenda

• Overview
• Architectural description
• Working of DISCUS
• Open Issues
• Conclusions

3
Overview

• Temporary alliances among existing Web Services
• Assists pooling of resources
• Rapidly deal with temporary or ongoing problems
• Builds on Web/Internet Standards
• Selective access controlled interactions

4
Key Concepts

• Service Spaces
• Logical collection of services under one
  administrative control
• Existing legacy systems, span organisational
  boundaries
• Summits
• Composition of services with a mission
• Treaties
• Contract of exchange of service
• GateKeepers (GK)
• The Bouncer !
• Security Manager

5
How everything fits together
6
Three key phases

• Task Delegation
• Service Advertising and Discovery
• Resource Acquisition
• Negotiation
• Execution phase
• Information/Service exchange

7
Phase I Task Delegation

• Service Advertising
• WSDL (Web Services Definition Language)
• XML description of web services
• Procedure-oriented information
• Method, parameters
• DAML-S (Darpa Agent Markup Language)
• yet another XML description
• Why DAML?
• Content level description not keyword
• Machine readable descriptions of the services
• View service as a process/task

8
Task Delegation contd

• Dynamic service discovery
• UDDI (Universal Description, Discovery and
  Integration)
• Query Web Services
• Centralised, not good
• We extend with peer to peer infrastructure
• Suns JXTA project
• Security awareness

9
Implementation overview

• Service spaces use the JXTA network to find each
  other
• UDDI requests are sent through the JXTA network

JXTA Network
10
Phase II Resource acquisition

• Negotiation between Service Spaces
• Policy-based information transport layer
• Policies and constraints inherited from enclosing
  Service Space
• Signed requests and responses
• XML Signatures
• Security matrices policies
• Credentials, context or mode of operation
• WS-Security (Future Work)

11
GateKeeper, the Traffic Cop
Service Space 1

• Service Spaces communicate only through the
  GateKeepers
• The GateKeeper uses the Security Manager to
  create and verify treaties

Services
Security Manager
GateKeeper
Services
GateKeeper
Security Manager
Service Space 2
12
Treaties

• Pre-existing templates
• Instantiation of Treaties
• Without involving any global authority
• Formed request
• Completed request approval
• Treaty Relations
• Unique
• Pair-wise
• Often asymmetric but never transitive
• Content level security
• Semantics-based approval
• TTL, allowed number of invocations, payment,
  type, restricted parameter ranges

13
Verifying an incoming treaty
ltTreatygt ltTreatyIDgt0lt/TreatyIDgt ltServiceInfogt
ltServiceNamegtservicelt/ServiceNamegt
ltServiceMethodgt ltMethodNamegtgetDatalt/
MethodNamegt ltParametergtfoolt/Parametergt
ltParametergtbarlt/Parametergt
lt/ServiceMethodgt lt/ServiceInfogt lt/Treatygt ltdsSign
aturegt lt/dsSignaturegt
Access F(Policies,Credentials)

• SecurityManager
• Verify XML document
• Compare treaty with permissions for the
  requesting Service Space
• Set methods to authorized true/false

ltTreatygt ltTreatyIDgt234989592lt/TreatyIDgt ltServi
ceInfogt ltServiceNamegtservicelt/ServiceNamegt
ltServiceMethodgt
ltMethodNamegtgetDatalt/MethodNamegt
ltParametergtfoolt/Parametergt
ltParametergtbarlt/Parametergt
ltAuthorizedgttruelt/Authorizedgt
ltMethodImplementationgt getDataByFooAndBar
lt/MethodImplementationgt
lt/ServiceMethodgt lt/ServiceInfogt lt/Treatygt
14
Verifying resource use

• Treaty enforces normative interaction between the
  enlisted services.
• Must adhere to the relevant treaty.

ltExecServiceMethodRequestgt
ltTreatyIDgt234989592lt/TreatyIDgt
ltServiceNamegtservicelt/ServiceNamegt
ltMethodNamegt getDataByFooAndBar
lt/MethodNamegt ltParametergtfoolt/Parametergt lt/Exe
cServiceMethodRequestgt ltdsSignaturegt lt/dsSigna
turegt

• SecurityManager
• Verify XML document
• Get treaty from database
• Compare method request with methods in treaty
• Return OK, or error message

Error 30 day free trial has
expired! Error Payment Overdue
15
Phase III Execution Phase

• Gatekeeper acts as a proxy
• Any data, resources, service exchanges must be
  conformant to the treaties
• Summits dissolve once the mission is accomplished
• Could last arbitrarily long, not necessary short
  lived
• Logs maintained for post mortem analysis
• Workflow
• Coordinates interaction among Web Services
• Subset of XLANG (WSFL like) workflow language
  with a home brewed parser
• Execution monitoring
• Portal based on JMX framework

16
DISCUS in action!

1. Service Space A sends a discovery request to the
   JXTA network looking for a service.

1. Service Space A sends an incomplete Treaty as a
   request for service to Service Space B.

request
Service Space A
Service Space B
response

1. Service Space B checks security policies and
   accepts/rejects the request.

Service Space A
Service Space B
ltjxtaMSA gt ltMSIDgturnjxtauuid-8574D06lt/MSIDgt
ltNamegtdiscusUddilt/Namegt
ltjxtaPipeAdvertisement gt
ltIdgturnjxtauuid-5961626204lt/Idgt
ltTypegtJxtaUnicastlt/Typegt ltdsSignaturegt
lt/dsSignaturegt
lt/jxtaPipeAdvertisementgt lt/jxtaMSAgt
Access?
Security Policies
17
Current proof-of-concept

• Example demo application
• Scenario task of collecting information
  regarding a particular location
• Basis of intelligence analyses
• Recruitment and integration of Web Services
• Rapid
• Secure
• Simple
• Using third-party services available through
  xmethods.com
• Authenticated information exchange with unsecured
  Web Services (GK)
• Implementation-level independence.

18
Technology

• Web Services
• Choice of platforms
• Interoperate with multiple backend component
  models (CORBA, EJB)
• Runtime proxy generation
• Runtime source code generation from WSDL
• Immediate compilation
• Components developed using C, Java
• Need a language with support for reflection
• C
• A fairly sophisticated library
• Especially the runtime compilation
• GateKeeper

19
Progress work Object-orientation

• AggregationSummit of Summits
• Super list of policies
• More restrictive than original
• Dynamic trust and membership model
• Composition methods
• Bottom-up
• Use existing summits
• Top-down
• Create sub-summits to fit requirements

An inheritance hierarchy of Summits
Summit ServiceSpace Treaties Workflow
ABC_Summit ...
MLSecurity_Summit MLSManager MLSPolicies
Intl_MLS_Summit ...
20
Open Issues

• Capabilities-based customizable WSDL
• The interface is provided based on
• Credentials
• Payment plans
• Concept of transactions
• Roll-back in case of failures in a summit
• Security Considerations
• Services with lower credentials participating in
  the summits affect service extent
• Semantics, invocation protocols
• XML inheritance
• Interface inheritance, e.g. WSDL inheritance
• Other negotiation models Economic Models

21
Execution Phase Issues/Future Work

• Summit level monitoring
• Web Services exception-handling
• Improve our XLANG coverage
• Or migrate to another workflow notation
• Enable semantic workflows
• With dynamic parameterization and substitution
• Robust behavior
• Fault tolerance
• Survivability
• Dynamic reconfigurability of in-place Summits
• Contextualisation of service operations

22
