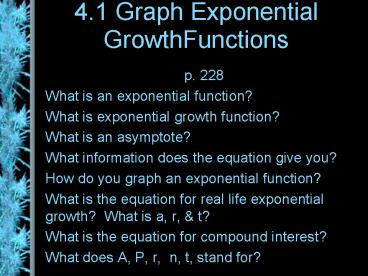

4.1 Graph Exponential GrowthFunctions

1
4.1 Graph Exponential GrowthFunctions

• p. 228
• What is an exponential function?
• What is exponential growth function?
• What is an asymptote?
• What information does the equation give you?
• How do you graph an exponential function?
• What is the equation for real life exponential
  growth? What is a, r, t?
• What is the equation for compound interest?
• What does A, P, r, n, t, stand for?

2
Exponential Function

• f(x) bx where the base b is a positive number
  other than one.
• Graph f(x) 2x
• Note the end behavior
• x?8 f(x)?8
• x?-8 f(x)?0
• y0 is an asymptote

3
Asymptote

• A line that a graph approaches as you move away
  from the origin

The graph gets closer and closer to the line y
0 . But NEVER reaches it
2 raised to any power Will NEVER be zero!!
y 0
4
SOLUTION
Make a table of values.
STEP 1
STEP 2
Plot the points from the table.
Draw, from left to right, a smooth curve that
begins just above the x-axis, passes through the
plotted points, and moves up to the right.
STEP 3
5

• This shows of y a 2x
• Passes thru the point (0,a)
• (THE Y-INTERCEPT IS a)
• The x-axis is the asymptote of the graph
• D is all reals (the Domain)
• R is ygt0 if agt0 and ylt0 if alt0
• (the Range)

6

• These are true of
• y abx
• If agt0 bgt1
• The function is an Exponential Growth Function
• http//my.hrw.com/math06_07/nsmedia/tools/Graph_Ca
  lculator/graphCalc.html

7
D
D all reals R all realsgt0
y 0
Always mark asymptote!!
8
Graph the function.
SOLUTION
9
Example 1

• Graph y - (3/2)x
• Plot (0, -1) and (1, -3/2)
• Connect with a curve
• Mark asymptote
• D??
• All reals
• R???
• All reals lt 0

y 0
10
To graph a general Exponential Function

• y a bx-h k
• Find your asymptote from k
• Pick values for x. Try to make your exponent
  value 0 or 1.
• Complete your T chart (Find y).
• Sketch the graph.

11
Example 2 Graph y 32x-1-4

• h 1, k -4
• asymptote y -4
• Pick x values
• x y

D all reals R all reals gt-4
1 2
-1 2
y -4
12
Nowyou try one!

• Graph y 23x-2 1
• State the Domain and Range!
• D all reals
• R all reals gt1

y1
13
Write an exponential growth model giving the
number n of incidents t years after 1996. About
how many incidents were there in 2003?
14
Graph the model.
Use the graph to estimate the year when there
were about 125,000 computer security incidents.
SOLUTION
STEP 1
The initial amount is a 2573 and the percent
increase is r 0.92. So, the exponential growth
model is
Write exponential growth model.
Substitute 2573 for a and 0.92 for r.
Simplify.
15
The graph passes through the points (0, 2573) and
(1,4940.16). Plot a few other points. Then draw a
smooth curve through the points.
STEP 2
16
STEP 3
Using the graph, you can estimate that the number
of incidents was about 125,000 during 2002 (t
6).
17
Compound Interest

• Compound interest is interest paid on the initial
  investment, called the principal and on
  previously earned interest. Interest paid only
  on the principal is called simple interest.

18
Compound Interest

• AP(1r/n)nt
• P - Initial principal
• r annual rate expressed as a decimal
• n compounded n times a year
• t number of years
• A amount in account after t years

19
Compound interest example

• You deposit 1000 in an account that pays 8
  annual interest.
• Find the balance after I year if the interest is
  compounded with the given frequency.
• a) annually b) quarterly c) daily

A1000(1.08/4)4x1 1000(1.02)4 1082.43
A1000(1 .08/1)1x1 1000(1.08)1 1080
A1000(1.08/365)365x1 1000(1.000219)365
1083.28
20

• What is an exponential function?
• An equation with a variable as the exponent.
• What is an exponential growth function?
• f(x) abx when a gt 0 and b gt 1
• What is an asymptote?
• A line that a graph approaches as you move away
  from the origin.
• What information does the equation give you?
• y abx-h k (k - asymptote.)
• How do you graph an exponential function?
• Plot the asymptote, pick values for x to make
  exponent 0 or 1.
• What is the equation for real life exponential
  growth? What is a, r, t?
• y a(1 r)t a initial amount, r rate, t
  time
• What is the equation for compound interest?
• What does A, P, r, n, t, stand for?
• A amount in account, P principal, r rate, n
  times compounded, t of years

21
4.1 Assignment

• Page 232, 4 30 even
