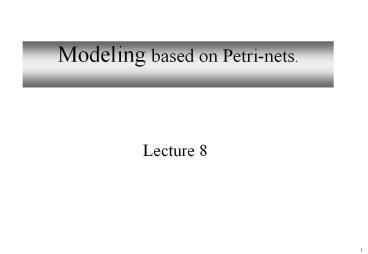

Modeling based on Petri-nets.

1
Modeling based on Petri-nets.
Lecture 8
2
High-level Petri nets

• The classical Petri net was invented by Carl Adam
  Petri in 1962.
• A lot of research has been conducted (gt10.000
  publications).
• Until 1985 it was mainly used by theoreticians.
• Since the 80-ties the practical use is increasing
  because of the introduction of high-level Petri
  nets and the availability of many tools.
• High-level Petri nets are Petri nets extended
  with
• color (for the modeling of attributes)
• time (for performance analysis)
• hierarchy (for the structuring of models, DFD's)

3
The classical Petri net model

• A Petri net is a network composed of places ( )
  and transitions ( ).

t2
p2
t1
p1
p4
t3
p3
Connections are directed and between a place and
a transition. Tokens ( ) are the dynamic
objects. The state of a Petri net is determined
by the distribution of tokens over the places.
4
p1
p4
t1
p2
p3

• Transition t1 has three input places (p1, p2 and
  p3) and two output places (p3 and p4).
• Place p3 is both an input and an output place of
  t1.

5
Enabling condition

• Transitions are the active components and places
  and tokens are passive.
• A transition is enabled if each of the input
  places contains tokens.

Transition t1 is not enabled, transition t2 is
enabled.
6
Firing

• An enabled transition may fire.
• Firing corresponds to consuming tokens from the
  input places and producing tokens for the output
  places.

Firing is atomic.
7
Example
8
Non-determinism
t1
t2

• Two transitions fight for the same token
  conflict.
• Even if there are two tokens, there is still a
  conflict.

9
Modeling

• States of a process are modeled by tokens in
  places and state transitions leading from one
  state to another are modeled by transitions.
• Tokens represent objects (humans, goods,
  machines), information, conditions or states of
  objects.
• Places represent buffers, channels, geographical
  locations, conditions or states.
• Transitions represent events, transformations or
  transportations.

10
Example traffic light
11
Two traffic lights
12
Two safe traffic lights
13
Two safe and fair traffic lights
red1
red2
safe2
yr1
yr2
yellow1
yellow2
rg1
rg2
gy1
gy2
safe1
green1
green2
14
Example life-cycle of a person
child
puberty
bachelor
marriage
married
divorce
death
dead
15
br
black
red
bb
rr

• The number of arcs between two objects specifies
  the number of tokens to be produced/consumed.
• This can be used to model (dis)assembly processes.

16
Some definitions

• current stateThe configuration of tokens over
  the places.
• reachable stateA state reachable form the
  current state by firing a sequence of enabled
  transitions.
• dead stateA state where no transition is
  enabled.

17

• 7 reachable states, 1 dead state.

18
Exercise your life-cycle
sleeping
start
stop
active
die
dead

• How many states are reachable?
• Is there a dead state?

19
Exercise readers and writers
receive_mail
begin
mail_box
rest
rest
type_mail
read_mail
ready
send_mail

• How many states are reachable?
• Are there any dead states?
• How to model the situation with 2 writers and 3
  readers?
• How to model a "bounded mailbox" (buffer size 4)?

20
High-level Petri nets

• In practice the classical Petri net is not very
  useful
• The Petri net becomes too large and too complex.
• It takes too much time to model a given
  situation.
• It is not possible to handle time and data.
• Therefore, we use high-level Petri nets, i.e.
  Petri nets extended with
• color
• time
• hierarchy

21

• To explain the three extensions we use the
  following example of a hairdresser's saloon.

hairdresser ready to begin
free
client waiting
start
finish
waiting
busy
ready
Note how easy it is to model the situation with
multiple hairdressers.
22
The extension with color

• A token often represents an object having all
  kinds of attributes.
• Therefore, each token has a value (color) with
  refers to specific features of the object modeled
  by the token.

name Sally age 28 hairtype BL
name Harry age 28 experience 2
23

• Each transition has an (in)formal specification
  which specifies
• the number of tokens to be produced,
• the values of these tokens,
• and (optionally) a precondition.
• The complexity is divided over the network and
  the values of tokens.
• This results in a compact, manageable and natural
  process description.

24
Examples
c ab
b -a
a

b
-
a
b
c
a gt0 b Ö a
a
b
b
sqrt
a
select
c
if agt 0 then b a else ca fi
Exercise calculate Ö ab using these buiding
blocks
25
The extension with time

• For performance analysis we need to model
  durations, delays, etc.
• Therefore, each token has a timestamp and
  transitions determine the delay of a produced
  token.

26
The extension with hierarchy

• A mechanism to structure complex Petri nets
  comparable to DFD's.
• A subnet is a net composed out of places,
  transitions and subnets.

h1
h2
waiting
ready
h3
27
Exercise remove hierarchy
h1
h2
waiting
ready
h3
begin
end
pending
begin
end
pending
