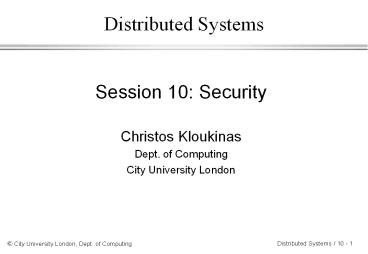

Distributed Systems

1
Distributed Systems

• Session 10 Security
• Christos Kloukinas
• Dept. of Computing
• City University London

2
Session 10 - Outline

• 1 Motivation
• 2 Styles of Attacks
• 3 Cryptography
• 4 Authentication
• 5 Security Systems
• 6 Summary

3
Security in Distributed Systems
Non-Repudiation
Auditing
High Level
Authentication
Access Control
ENCRYPTION
Low Level
E.g. Consider online Bank Example
4
1 Motivation

• More vital/secret data handled by distributed
  components.
• Security protecting data stored in and
  transferred between distributed components from
  unauthorised access.
• Security is a non-functional requirement that
  cannot be added as a component but has to be
  built into all components.

5
1 Why are Distributed Systems insecure?

• Distributed component rely on messages sent and
  received from network.
• Is network (especially WAN networks) secure?
• Packets can be intercepted and modified at
  network layer!
• Is client component secure?
• Is client component who it claims to be?
• Are users of calling components really who they
  claim to be?

6
1 Effects of Insecurity

• Confidential Data may be stolen, e.g.
• corporate plans.
• new product designs.
• medical/financial records (e.g. Access
  bills....).
• Data may be altered, e.g.
• finances made to seem better than they are.
• results of tests, e.g. on drugs, altered.
• examination results amended (up or down).

7
1 Need for Security

• Loss of confidence above effects may reduce
  confidence in computerised systems.
• Claims for damages legal developments may allow
  someone to sue if data on computer has not been
  guarded according to best practice.
• Loss of privacy data legally stored on a
  computer may well be private to the person
  concerned (e.g. medical/personnel) record.

8
2 Threats

• Categorisation of attacks (and goals of attacks)
  that may be made on system.
• Four main areas
• leakage information leaving system.
• tampering unauthorised information altering.
• resource stealing illegal use of resources.
• vandalism disturbing correct system operation.
• denial of service disrupting legitimate system
  use.
• Used to specify what the system is secure against.

9
2 Threats

• Leakage denotes the disclosure of information to
  unauthorised subjects.
• Baazi hacking into a CAD System of Rolls Royce in
  order to obtain the latest design RR's jet
  engines.
• Although fatal in this case, leakage is probably
  the category that causes the least damage of the
  above.
• Tampering denotes the unauthorised modification
  of data.
• We would have a case of tampering, if you hacked
  into the School's database in order to alter the
  marks of your Distributed System courseworks

10
2 Threats (ctd.)

• Resource stealing identifies the illegal use of
  resources and not paying, e.g CPU time, Bandwith,
  Air time of mobiles
• A case of resource stealing has occurred when
  hackers hacked into computers of telephone
  companies and managed to have their phone calls
  charged to other customer's accounts.
• Vandalism denotes the disturbance of correct
  system operation.
• The security of CS Dept. in Milan was broken and
  super user privileges were acquired and then the
  system's hard disks were formatted. This caused
  serious damage to the departmental operations for
  a session.

11
2 Methods of Attack

• Eavesdropping Obtaining message copies without
  authority.
• Masquerading (Spoofing) Using identity of
  another principle without authority.
• Message tampering Intercepting and altering
  messages.
• Replaying Storing messages and sending them
  later.
• Flooding sending too many messages

12
Example
-gtbalance
-gtCredit(...)
Msg in XDR
Stub
MessageType
requestID
IIOP
ObjectRef
Method
ORB
Arguments
13
Some Examples

• Eavesdropping
• request parameters from client to server may
  contain sensitive information, e.g pins,
  balances
• Stubs marshal these into standard data
  representation
• By listening to or sniffing traffic attackers can
  obtain and decode request parameters--gteavesdroppi
  ng
• Tampering
• Attacker modifies request parameters before they
  reach server, e.g credit amount
• Replaying
• Attacker intercepts and stores message and has
  server repeatedly execute operation
• NB no need to interpret messages, so encryption
  doesnt help!

14
2 Infiltration

• Launch of attack requires access to the system.
• Launched by legitimate users.
• Launched after obtaining passwords of known
  users.
• Subtle ways of infiltration
• Viruses
• Trojan horses.

15
3 Cryptography

• 1 Terminology
• 2 Modern cryptography Symmetric encryption
• 3 Modern cryptography Asymmetric encryption and
  PGP

16
3.1 Cryptographic Terminology

• Plain text the message before encryption.
• Cipher text the message after encryption.
• Key information needed to convert from plain
  text to cipher text (or vice-versa).
• Function the encryption or decryption algorithm
  used, in conjunction with key, to encrypt or
  decrypt message.
• Key distribution How to distribute keys between
  senders and receivers

17
3.2 Requirements for modern cryptography

• Kerkhoffs principle knowledge of encryption
  algorithm should not be an advantage
• With computers a brute force attempt is possible,
  i.e. try every possible substitution until a
  valid message is produced.
• Computers are good at this, modern schemes must
  be computationally hard to solve to remain
  secure.
• 15 May 1973 American National Bureau of standards
  requests proposals for encryption standard
• Data Encryption Standard, DES, developed.
  Standard describes DEA, Data Encryption Algorithm
• DEA is an improvement of IBMs 1970 Lucifer
  algorithm
• Since November 26, 2001, theres AES, based on
  Rijndael

18
3.2 DES/AES Symmetric Encryption

• One key is used to both encrypt and decrypt data
• Encryption and decryption functions are often
  chosen to be the same
• Security should not be compromised by making
  function well-known as security comes from secret
  keys

19
3.2 DES/AES Using Secret Keys

• Sender and recipient exchange keys through some
  secure, trusted, non-network based means.
• Sender encodes message using function and sends,
  knowing that only the holder of the key (the
  intended recipient) can make sense of it.
• Recipient decodes message knows that only a
  key-holding sender could have generated it.
• Message can be captured but is of no use.

20
Secret Key Encryption for Distributed Objects
Client A
Server B
Caller
Called
Skeleton
Stub
1.acquire KAB
2.f(KAB, M) --gt M KAB
1.acquire KAB
M KAB
3. send()
2. receive()
-1
3.f (KAB, M KAB) --gt M
Figure also suggests how to deploy
21
Secret Key Encryption for Distributed Objects

• Encryption is done after marshalling (before
  un-marshalling) and it has been noted that the
  server object is not local.
• Encrypted object request that is transmitted via
  network is secured against eavesdropping and
  message tampering
• Note that the encryption can be kept entirely
  transparent for client and server programmers, as
  it is done by middleware or by the stubs created
  by middleware
• NB Disadvantage For Secret Key encryption for
  distributed objects, number of keys needed
  increases quadratically by number of objects (one
  key per pair of communicating objects)
• Public Key (aka Asymmetric) Encryption overcomes
  this problem

22
3.3 Asymmetric Encryption

• Gives 'one-way' security.
• Two keys generated, one used with decryption
  algorithm (private key) and one with encryption
  algorithm (public key).
• Generation of private key, given public key is
  computationally hard.
• Does not need secure key transmission mechanism
  for key distribution.

23
3.3 Asymmetric Encryption Using Public Keys

• Recipient generates key pair.
• Public key is published by trusted service.
• Sender gets public key, and uses it to encode
  message.
• Recipient decrypts message with its private key.
• Replies can be encoded using senders public key
  from the trusted distribution service.
• Message can be captured but is of no use.

24
3.3 Asymmetric Encryption Sending a msg securely
transmit
25
3.3 Asymmetric Encryption Signing a msg
Asymmetric encryption is very versatile Besides
secure transmission, it can be used to sign
messages. Question How to sign a message and
send it securely?
transmit
26
3.3 Asymmetric Encryption with RSA How does it
work?

• Rivest, Shamir, Adleman (Boston, Aug 77) develop
  the RSA algorithm
• We need a one-way function (e.g Yx mod P) with
  trap door
• Solution
• Private key p,q (both large prime numbers),
  Public key N p q and e
• Encryption C Me mod N
• Decryption Calculate d such that e d 1 mod
  (p-1)(q-1) then MCd mod N
• Can it be attacked No!!!
• as the power in modular arithmetic is a one-way
  function
• computing p,q from N does not work as prime
  factorisations is another one-way function (and
  its believed to be computationally hard to
  factor a number but nobody has proved that its
  NP -( )

27
Public Key Encryption for Distributed Objects
Caller
Called
Skeleton
Stub
1.acquire KPB
1.generate KPB, KSB
2.f(KPB, M) --gt M KPB
1.publish KPB
M KAB
3. send()
2. receive()
3. g(KSB, M KPB) --gt M
28
Public Key Encryption for Distributed Objects

• Transmission of message is secure
• as only B has the matching private key to decrypt
  message
• For decryption
• Apply function g to private key and encrypted
  message.
• Differences between public and secret key
• One pair of keys generated for every object, so
  number of keys is linear to number of objects
• Because different functions, f and g
• use of public of public keys is more complicated
  for reply messages. A must generate pair of keys
  and publish its public key, which B acquires to
  encrypt reply message

29
3.3 DES, RSA and PGP some history

• Both DES and RSA were independently discovered in
  1975 by Ellis,Cocks and Williamson in top secret
  Government communication HQ in UK
• DES and RSA not available to the public
  (classified as weapons!)
• In the 80s Zimmermann implements PGP (pretty good
  privacy) as freeware!
• And gets to meet some nice fellows from the FBI

30
3.3 Pretty Good Privacy

• Public Key encryption used in PGP
• Generally available, and can be used for
• encryption of messages
• digital signatures.
• PGP combines DES and RSA
• DES fast, but symmetric, hence key distribution
  problem
• RSA slower, but no key distribution problem
• Solution Use RSA to encrypt and distribute key
  for DES encryption!!!

31
Hybrid Secure Layer (SSL) Protocol

• Uses RSA encryption
• SSL/TLS Client
• generates a secret key for one session, that key
  is encrypted using servers public key
• Servers Pub key in servers certificate
• Client can validate certificate with cert.
  authority
• Session key then forwarded to the server and used
  for further communication between clients and
  server
• Most O-O middleware use SSL rather than straight
  TCP as transport protocol, to prevent
  eavesdropping and tampering of object request
  traffic

32
4 Authentication

• 1 Motivation
• 2 Types of Authentication
• 3 Needham/Schroeder Protocol

33
4.1 What is Authentication?

• Authentication Proving you are who you claim to
  be.
• In centralised systems Password check at session
  start.
• In distributed systems
• Ensuring that each message came from claimed
  source.
• Ensuring that each message has not been altered.
• Ensuring that each message has not been replayed.

34
4.2 Types of Authentication

• Authentication can be used to ensure a number of
  different aspects of an interaction.
• Proving that a client of a server is who it
  claims to be.
• This can be refined to proving that the end user
  has the right to use a service.

35
4.2 Types of Authentication

• Proving both client and server are who they say
  they are.
• This is needed to prevent imposter services
  collecting information or disrupting
  (vandalising) the system.
• This is really just an extension of the idea of
  authentication a client.

36
4.2 Types of Authentication

• Securing communication from eavesdropping.
• Authentication will usually involve encrypting
  data.
• This can be used just at the start, to prove the
  identity of the two ends of the communication
  link.

37
4.3 Needham/Schroeder Protocol

• Provides a secure way for pairs of components to
  obtain keys to be used during communication.
• Based on an authentication server
• maintains a name and a secret key for each
  component.
• can generate keys for peer-to-peer
  communications.
• Secret keys are used for communication with
  server.

38
4.3 Needham/Schroeder Protocol
Assumptions

• AS is a trusted authority

Authentication Server,AS

• C Ss identity registered with AS

• AS and object share secret key for mutual
  communication

1 C, S, NC
2 NC,S,KCS,KCS,CKSKC
C Client Name S Server Name KC Clients
secret key KS Servers secret key KCS NEW
Secret key for client/server communication Nx
Nonce generated by x MK Message encrypted in
key K
3 KCS,CKS
C
S
4 NSKCS
5 NS-1KCS
39
5 Security Systems Kerberos

• Kerberos is a network authentication protocol
• allow users and services to authenticate
  themselves to each other
• Based on Needham/Schroeder Protocol.
• Developed by Steiner at MIT (1988).
• Used in
• OSF/DCE.(OSF Distributed Computing Environment )
• Unix NFS.
• An adapted version of it is used in Microsoft
  Windows

40
5 Security Systems CORBA

• Supports the following security functionality
• Authentication of users.
• Authentication between objects.
• Authorisation and access control.
• Security auditing.
• Non-repudiation.
• Administration of security information.
• Cryptography is not exposed at interfaces - The
  OMG has taken explicit care to avoid exposing
  keys and any other confidential knowledge within
  the specs. This was done to avoid that the CORBA
  security specification would be classified by the
  US Government as a weapon as such be
  unavailable for use outside the US.

41
6 Summary

• Threats, Methods of Attack, Infiltration
• Cryptology
• Secret Keys
• Public Keys
• Authentication Needham/Schroeder Protocol
• Systems
• CORBA
