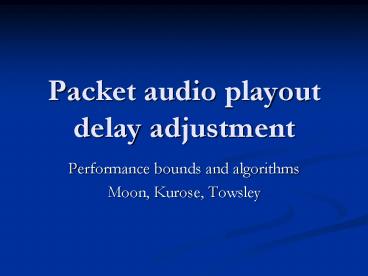

Packet audio playout delay adjustment

1
Packet audio playout delay adjustment

• Performance bounds and algorithms
• Moon, Kurose, Towsley

2
Overall Idea

• Because of packet jitter/delay changes, we need a
  playout buffer
• The bigger, the better
• But, a large buffer hinders responsive
  transmission of audio
• 400ms/5 loss for voice conversation
• Interactive media/video conferencing needs the
  smallest buffers possible

3
A solution, and an approximation

• In the first part of the paper, they give bounds
  on the size of playout buffer needed under
  certain losses
• Not an online algorithm, computationally
  expensive (the idea is to focus on percentages)
• Inelastic medium
• In the second part of the paper, they present an
  on-line algorithm that is computationally
  feasible to adjust talkspurt playout delay

4
Related Work

• Playout delay adjustments
• Per-packet and per-talkspurt (assumptions
  speech, or music?)
• Network level observations
• Three graphs, probe compression
• Baseline doesnt change muchreal advantages in
  adjusting delay playout occurs in multi-talkburst
  delay spikes

5
Problem Statement

• For a given set of losses at the receiver, we get
  to set the playout delays of each talkspurt
  anyway we want
• Which assignment is the best?
• For 1 packet lost? 2? 3? 134?
• First, lets fix some notation

6
Notation

• tki sender timestamp of ith packet of kth
  talkspurt
• aki receiver timestamp of ith packet of kth
  talkspurt
• nk num packets in kth talkspurt (received)
• N total number of packets in trace (Sknk)
• pki(A) playout time under algorithm A
• Delay pki(A) tki, loss if pki(A) lt aki
• Indicator if packet is played
• rki(A)

7
Notation, (cont)

• Total packets played under A
• N(A) SkM Sink rki(A)
• Average playout delay
• 1/N(A) SkM Sink rki(A)(pki(A) tki)
• Loss rate
• l (N N(A)) / N 100

8
Notation (cont)

• dki delay between sending and receiving
• d min (dki)
• dki normalized delay dki d
• dk(i) ith smallest normalized delay

9
Off-line solution w/o collisions

• To play i packets from the kth talkspurt, the
  playout delay must be at least (the unknowable)
  dk(i)
• Remember that if algorithm A uses a large playout
  delay for one talkspurt, it could delay
  subsequent talkspurts (collisions)
• Lets ignore them for now
• Time O(MN2) Space O(MN)

10
Off-line solution w/o collisions

• We assume percentages of loss, not actual loss
  patterns (to simplify the complexity)
• D(k,i) is min playout delay for i packets lost
• D(k,i)
• 0 if i 0
• dk(i) if k M and i lt nM
• inf if k M and i gt nM
• min (((i-j)D(k1,i-j) jdk(j))/i)
• Proof by contradiction

11
Offline algorithm with collisions

• We might have to adjust the playout times of some
  of the talkspurts due to collisions, so D must
  now take those into account
• We define a vector S (captures length of silence)
• We can capture the sum of the increases
• Now D includes C as well (C tracks packets played
  out at every step of the computation)
• D now differs from the old D only in the extra
  delays incurred by the collisions
• The new D does not capture the optimal, though
  (why?)
• Time O(M2N2) Space O(M2N2)

12
An online algorithm

• Algorithm 1 Linear
• Slow to catch up, good at maintaining a solid
  value
• Algorithm 2 Depends on spike detection
• Quick at catching up, but sometimes overzealous
• Algorithm 3 Two Modes
• Track spikes when they are detected
• Otherwise update delay and delay varience (q)
• Switch when you have a multiple of the delay

13
Evaluation / Conclusion

• They instrument the senders and the receivers
• Plot average playout delay vs packet loss rate
• Results seem to show that Algorithm 3 gets very
  close to the optimal
• However, the results are very close much of the
  time
• Sometimes 1 is much worse, sometimes 2, but 3
  seems to always be pretty stable

14
Queue Monitoring

• A Delay Jitter Management Policy
• Stone, Jeffay

15
Display and e2e Jitter

• Recall the steps for transmitting video
• Acquire, digitize, compress, transmit,
  decompressed, buffer, display
• Display Latency is acquire to display
• e2e latency is acquire to buffer
• What problems can affect this process?
• Delay Jitter (variance in e2e latency)
• Can we ensure constant e2e latency?
• Even with Isochronous service models?
• Were going to adjust the display latency instead

16
Audio vs video

• Recall the audio application
• Talkspurts vs Silence Periods
• Analog for video?
• Are gaps ok during the transmission?
• Display perception
• Network congestion
• Video as a datatype
• Can we repeat frames, leave black spaces, etc?

17
Late policies

• I-policy
• Discard
• All frames now have the same display latency
• Static
• E-policy
• Play at earliest convenience
• Increases latency for subsequent frames
• Keeps getting higher than observed e2e delay

18
Example 1
19
Example 2
1 2 3 4 5 6 7 8 9
10
1 2 3 4 5 6 7 8 9
10
20
I-vs-E

• I policys advantage
• Low jitter and bursts
• E policys advantage
• Good during high latency and low latency, but not
  good after bursts
• Hybrid approach Queue Monitoring

21
Queue Monitoring

• When displaying a frame
• Thresholding operation
• If qlen is m, then counters 1 through m-1 are
  incremented
• All others are reset
• When the counter exceeds a value, the oldest
  frame is discarded
• If the queue has contained more than n frames,
  then we can reduce the latency (the jitter is
  stable)
• Large variations occur infrequently and smaller
  variations occur more frequently (still true
  today)?

22
Evaluation

• The inherent difficulty
• Gaps vs display latency
• Lexocographic ordering for two axes
• Average gap rate
• Average display latency
• Experimental Design
• academic computer science network
• Time of day, workload seen

23
Evaluation Results

• Comparison between I2, I3, and E
• Usually the same or better
• Except for incomparable results
• In comparison to the E-policy, it seems to be
  workload/network dependent
• Instantaneous gap rate, delay policy would be
  better (perhaps)
• More adaptive I-policy
• More tests, of course
• Addressing ad-hoc quality measures
