Energy

1

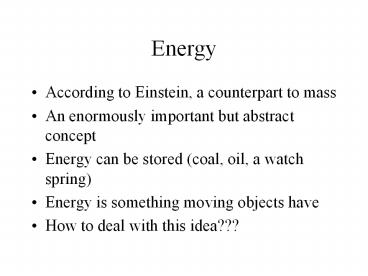

Energy

• According to Einstein, a counterpart to mass
• An enormously important but abstract concept
• Energy can be stored (coal, oil, a watch spring)
• Energy is something moving objects have
• How to deal with this idea???

2
(No Transcript)
3
Work

• Easiest to start with the notion of work
• Work Force X Distance
• Lift a box from the floor, you apply a force to
  overcome gravity
• Multiply that force by the distance through which
  you apply the force and you calculate the amount
  of work accomplished

4
Is this Work?
5
Work

• Unit is the JOULE
• A Joule is a newton-meter

6
Power

• The rate at which work is done
• Takes more power to run up the stairs than to
  walk up the stairs, but the energy consumed is
  the same in either case

7
Power

• Unit is the WATT
• A Watt is a newton--meter per second
• Think of 100-Watt light bulb
• Bigger units are kilowatts and megawatts
• Utility sells energy in kilowatt-hours
• 1 KWh 1000 Joules/second times 3600 Seconds
  3.6 X 106 Joule

8
Potential Energy

• If we lift an object from the floor into the air,
  it has the potential to do work for us
• This ability to do work is called POTENTIAL
  ENERGY
• Other forms of potential energy include the
  compression of a spring, the stored energy in
  coal or oil, the stored energy in a uranium
  nucleus

9
Potential Energy

• Gravitational potential energy is simple to
  calculate
• Gravitational Potential Energy weight X height

10
Gravitational Potential Energy

• Independent of Path to get there

11
Kinetic Energy

• The energy of moving objects
• Kinetic Energy 1/2 Mass X Speed2

12
Energy Conversion
13
Energy Conversion
14
Work-Energy Theorem

• Work done on an object can give the object either
  potential or kinetic energy or both
• If we do work on an object to lift it into the
  air, we give it potential energy
• If we do work on an object and set it into
  motion, we give it kinetic energy
• The work-energy theorem relates to the second case

15
Work-Energy Theorem

• If we do work on an object and set it into motion
  without changing the objects potential energy,
  the work done appears as kinetic energy of the
  object

16
Conservation of Energy

• Perhaps the most important discovery of the past
  two centuries
• In the absence of external work input or output,
  the energy of a system remains unchanged. Energy
  cannot be created or destroyed.
• Remember from Einstein, that mass is a form of
  energy

17
(No Transcript)
18
Collisions

• Elastic Collisions conserve both momentum and
  kinetic energy
• Inelastic Collisions conserve momentum by energy
  is lost to heat

19
Machines

• A device that multiplies forces by taking
  advantage of the definition or work and the
  conservation of energy
• Work input Work output
• Levers

20
Machines
21
Machines
22
Efficiency
In many machines, some energy is lost due to
friction. This may be metal-on-metal (oil the
parts to reduce friction) or air resistance
(energy loss moves molecules in the air faster
giving them kinetic energy).
23
Energy Sources

• For the earth, there are two energy sources, the
  sun and radioactive decay in the earths interior
• The earth receives about 1400 Joules/meter2 each
  second
• This is 1.4 kW per square meter
• Recover for use in plants (burn wood)
• Recover from wind

24
Mans Need for Power

• Man can generate about 75 Watts to do work
• Domesticated Animal about 750 Watts
• Machines limited by size
• Power plants generate electricity in the hundreds
  of megawatt range

25
Universal Gravitation (Newton)

• Every mass attracts every other mass with a force
  that is proportional to the product of the two
  masses divided by the square of the distance
  between the masses
• For distances, calculate from the CENTER OF MASS
• For the earth, that is at the center of the earth

26
Universal Gravitation
27
Acceleration Due to Gravity
28
Inverse Square Law
29
Inverse Square Law
30
Weight and Weightlessness
31
Tides
Stretch is about one meter high.
