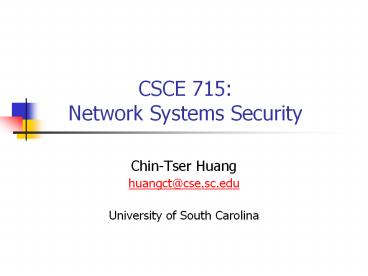

CSCE 715: Network Systems Security

1
CSCE 715Network Systems Security

• Chin-Tser Huang
• huangct_at_cse.sc.edu
• University of South Carolina

2
After DES

• More symmetric encryption algorithms
• Triple-DES
• Advanced Encryption Standards

3
Triple DES

• Clearly a replacement for DES was needed
• theoretical attacks that can break it
• demonstrated exhaustive key search attacks
• Use multiple encryptions with DES implementations
• Triple-DES is the chosen form

4
Why Triple-DES?

• Double-DES may suffer from meet-in-the-middle
  attack
• works whenever use a cipher twice
• assume C EK2EK1P, so X EK1P DK2C
• given a known pair (P, C), attack by encrypting P
  with all keys and store
• then decrypt C with keys and match X value
• can be shown that this attack takes O(256) steps

5
Triple-DES with Two Keys

• Must use 3 encryptions
• would seem to need 3 distinct keys
• But can use 2 keys with E-D-E sequence
• encrypt decrypt equivalent in security
• C EK1DK2EK1P
• if K1K2 then is compatible with single DES
• Standardized in ANSI X9.17 ISO8732
• No current known practical attacks

6
Triple-DES with Three Keys

• Some proposed attacks on two-key Triple-DES,
  although none of them practical
• Can use Triple-DES with Three-Keys to avoid even
  these
• C EK3DK2EK1P
• Has been adopted by some Internet applications,
  e.g. PGP, S/MIME

7
Origins ofAdvanced Encryption Standard

• Triple-DES is slow with small blocks
• US NIST issued call for ciphers in 1997
• 15 candidates accepted in Jun 1998
• 5 were shortlisted in Aug 1999
• Rijndael was selected as the AES in Oct 2000
• Issued as FIPS PUB 197 standard in Nov 2001

8
AES Requirements

• Private key symmetric block cipher
• 128-bit data, 128/192/256-bit keys
• Stronger and faster than Triple-DES
• Active life of 20-30 years ( archival use)
• Provide full specification and design details
• Both C and Java implementations
• NIST has released all submissions and
  unclassified analyses

9
AES Evaluation Criteria

• Initial criteria
• security effort to practically cryptanalyze
• cost computational
• algorithm implementation characteristics
• Final criteria
• general security
• software hardware implementation ease
• implementation attacks
• flexibility (in en/decrypt, keying, other
  factors)

10
AES Shortlist

• Shortlist in Aug 99 after testing and evaluation
• MARS (IBM) - complex, fast, high security margin
• RC6 (USA) - very simple, very fast, low security
  margin
• Rijndael (Belgium) - clean, fast, good security
  margin
• Serpent (Euro) - slow, clean, very high security
  margin
• Twofish (USA) - complex, very fast, high security
  margin
• Subject to further analysis and comment
• Contrast between algorithms with
• few complex rounds verses many simple rounds
• refined existing ciphers verses new proposals

11
The Winner - Rijndael

• Designed by Rijmen-Daemen in Belgium
• Has 128/192/256 bit keys, 128 bit data
• An iterative rather than feistel cipher
• treats data in 4 groups of 4 bytes
• operates on an entire block in every round
• Designed to be
• resistant against known attacks
• speed and code compactness on many CPUs
• design simplicity
• Use finite field

12
Abstract Algebra Background

• Group
• Ring
• Field

13
Group

• A set of elements or numbers
• With a binary operation whose result is also in
  the set (closure)
• Obey the following axioms
• associative law (a.b).c a.(b.c)
• has identity e e.a a.e a
• has inverses a-1 a.a-1 e
• Abelian group if commutative a.b b.a

14
Ring

• A set of elements with two operations (addition
  and multiplication) which are
• an abelian group with addition operation
• multiplication
• has closure
• is associative
• distributive over addition a(bc) ab ac
• Commutative ring if multiplication operation is
  commutative
• Integral domain if multiplication operation has
  identity and no zero divisors

15
Field

• A set of numbers with two operations
• integral domain
• multiplicative inverse aa-1 a-1a 1
• Infinite field if infinite number of elements
• Finite field if finite number of elements

16
Modular Arithmetic

• Define modulo operator a mod n to be remainder
  when a is divided by n
• Use the term congruence for a b mod n
• when divided by n, a and b have same remainder
• e.g. 100 ? 34 mod 11
• b is called the residue of a mod n if 0 ? b ? n-1

• with integers can write a qn b

17
Divisor

• A non-zero number b is a divisor of a if for some
  m have amb (a,b,m all integers)
• That is, b divides a with no remainder
• Denote as ba
• E.g. all of 1,2,3,4,6,8,12,24 divide 24

18
Modular Arithmetic

• Can do modular arithmetic with any group of
  integers Zn 0, 1, , n-1
• Form a commutative ring for addition
• With a multiplicative identity
• Some peculiarities
• if (ab)(ac) mod n then bc mod n
• but (ab)(ac) mod n then bc mod n only if a is
  relatively prime to n

19
Modulo 8 Example
20
Greatest Common Divisor (GCD)

• GCD (a,b) of a and b is the largest number that
  divides evenly into both a and b
• e.g. GCD(60,24) 12
• Two numbers are called relatively prime if they
  have no common factors (except 1)
• e.g. 8 and 15 relatively prime as GCD(8,15) 1

21
Euclid's GCD Algorithm

• Use following theorem
• GCD(a,b) GCD(b, a mod b)
• Euclid's Algorithm to compute GCD(a,b)
• Aa, Bb
• while Bgt0
• R A mod B
• A B, B R
• return A

22
Galois Fields

• Finite fields play a key role in cryptography
• Number of elements in a finite field must be a
  power of a prime pn
• Known as Galois fields
• Denoted GF(pn)
• In particular often use the following forms
• GF(p)
• GF(2n)

23
Galois Fields GF(p)

• GF(p) is set of integers 0,1, , p-1 with
  arithmetic operations modulo prime p
• Form a finite field
• have multiplicative inverses
• Hence arithmetic is well-behaved and can do
  addition, subtraction, multiplication, and
  division without leaving the field GF(p)

24
Arithmetic in GF(7)
25
Finding Multiplicative Inverses

• By extending Euclids algorithm
• gcd(a, b) d ax by
• a q1b r1 r1 ax1 by1
• b q2r1 r2 r2 ax2 by2
• r1 q3r2 r3 r3 ax3 by3
• rn-2 qnrn-1 rn rn axn byn
• Can derive
• ri ri-2 ri-1qi
• And
• xi xi-2 qixi-1 yi yi-2 qiyi-1

26
Polynomial Arithmetic

• Can compute using polynomials
• Several alternatives available
• ordinary polynomial arithmetic
• poly arithmetic with coords mod p
• poly arithmetic with coords mod p and polynomials
  mod M(x)

27
Ordinary Polynomial Arithmetic

• Add or subtract corresponding coefficients
• Multiply all terms by each other
• E.g.
• let f(x) x3 x2 2 and g(x) x2 x 1
• f(x) g(x) x3 2x2 x 3
• f(x) g(x) x3 x 1
• f(x) x g(x) x5 3x2 2x 2

28
Polynomial Arithmetic with Modulo Coefficients

• Compute value of each coefficient as modulo some
  value
• Could be modulo any prime
• But we are most interested in mod 2
• i.e. all coefficients are 0 or 1
• e.g. let f(x) x3 x2, g(x) x2 x 1
• f(x) g(x) x3 x 1
• f(x) x g(x) x5 x2

29
Modular Polynomial Arithmetic

• Can write any polynomial in the form
• f(x) q(x) g(x) r(x)
• can interpret r(x) as being a remainder
• r(x) f(x) mod g(x)
• If no remainder say g(x) divides f(x)
• If g(x) has no divisors other than itself and 1
  say it is irreducible (or prime) polynomial
• Polynomial arithmetic modulo an irreducible
  polynomial forms a field

30
Polynomial GCD

• Can find greatest common divisor for polynomials
• c(x) GCD(a(x), b(x)) if c(x) is the poly of
  greatest degree which divides both a(x), b(x)
• can adapt Euclids Algorithm to find it
• EUCLIDa(x), b(x)
• 1. A(x) a(x) B(x) b(x)
• 2. if B(x) 0 return A(x) gcda(x), b(x)
• 3. R(x) A(x) mod B(x)
• 4. A(x) ? B(x)
• 5. B(x) ? R(x)
• 6. goto 2

31
Modular Polynomial Arithmetic

• Can compute in field GF(2n)
• polynomials with coefficients modulo 2
• whose degree is less than n
• hence must reduce modulo an irreducible poly of
  degree n (for multiplication only)
• Form a finite field
• Can always find an inverse
• can extend Euclids Inverse algorithm to find

32
Arithmetic in GF(23)
33
AES Cipher Rijndael

• Process data as 4 groups of 4 bytes (State)
• Has 9/11/13 rounds in which state undergoes
• byte substitution (1 S-box used on every byte)
• shift rows (permute bytes between groups/columns)

• mix columns (subs using matrix multiply of
  groups)
• add round key (XOR state with key material)
• Initial XOR key material incomplete last round
• All operations can be combined into XOR and table
  lookups, hence very fast and efficient

34
AES Encryption and Decryption
35
AES Data Structure
36
AES Encryption Round
37
Byte Substitution

• A simple substitution of each byte
• Uses one table of 16x16 bytes containing a
  permutation of all 256 8-bit values
• Each byte of state is replaced by byte in
  corresponding row (left 4 bits) and column (right
  4 bits)
• eg. byte 95 is replaced by row 9 col 5 byte,
  which is 2A
• S-box is constructed using a defined
  transformation of the values in GF(28)

38
Shift Rows

• Circular byte shift in each row
• 1st row is unchanged
• 2nd row does 1 byte circular shift to left
• 3rd row does 2 byte circular shift to left
• 4th row does 3 byte circular shift to left
• Decryption does shifts to right
• Since state is processed by columns, this step
  permutes bytes between the columns

39
Mix Columns

• Each column is processed separately
• Each byte is replaced by a value dependent on all
  4 bytes in the column
• Effectively a matrix multiplication in GF(28)
  using prime poly m(x) x8x4x3x1

40
Add Round Key

• XOR state with 128 bits of the round key
• Again processed by column (though effectively a
  series of byte operations)
• Inverse for decryption is identical since XOR is
  own inverse, just with correct round key
• Designed to be as simple as possible but ensured
  to affect every bit of State

41
AES Key Expansion

• Take 128/192/256-bit key and expand into array of
  44/52/60 32-bit words
• Start by copying key into first 4 words
• Then loop creating words that depend on values in
  previous and 4 places back
• in 3 of 4 cases just XOR these together
• every 4th has S-box rotate XOR constant of
  previous before XOR together
• Designed to resist known attacks

42
AES Key Expansion
43
AES Decryption

• AES decryption is not identical to encryption
  because steps are done in reverse
• But can define an equivalent inverse cipher with
  steps as for encryption
• use inverses of each step
• But with a different key schedule
• Works since result is unchanged when
• swap byte substitution shift rows
• swap mix columns and add (tweaked) round key

44
Implementation Aspects

• Can efficiently implement on 8-bit CPU
• byte substitution works on bytes using a table of
  256 entries
• shift rows is simple byte shifting
• add round key works on byte XORs
• mix columns requires matrix multiply in GF(28)
  which works on byte values, can be simplified to
  use a table lookup

45
Implementation Aspects

• Can efficiently implement on 32-bit CPU
• redefine steps to use 32-bit words
• can precompute 4 tables of 256-words
• then each column in each round can be computed
  using 4 table lookups 4 XORs
• at a cost of 16Kb to store tables
• Designers believe this very efficient
  implementation was a key factor in its selection
  as the AES cipher

46
Next Class

• Confidentiality of symmetric encryption
• Read Chapter 14
