Structure%20and%20Function%20of%20the%20Flower

1

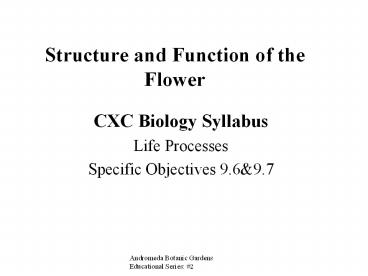

Structure and Function of the Flower

• CXC Biology Syllabus
• Life Processes
• Specific Objectives 9.69.7

2
Section A Flower Structure

• Science Objectives
• Students should be able to
• Recognize specified floral parts on most flowers
• Relate each part to its function
• Distinguish between staminate, pistillate/carpella
  te and hermaphrodite flowers
• Core Skills Objectives
• Co-operation/Group work
• Drawing
• CXC Practical Skills
• Drawing

3
Structure and Function of the Flower Quiz 1

• What is the male part of the flower called?
• --------------------------------------------------
  ----------------------------------------
• What is the main function of a flower?
• --------------------------------------------------
  ----------------------------------------
• What is the function of the carpel?
• --------------------------------------------------
  ----------------------------------------
• Give one example of a hermaphrodite flower
• --------------------------------------------------
  ----------------------------------------
• Name the flower structures which protect the
  young flower bud.
• --------------------------------------------------
  ----------------------------------------

4
Use the following to label the flower diagram
below Style, stamen, sepal, filament, peduncle,
ovary, anther, receptacle, carpel, stigma, petal,
ovule.
5
What is a Flower?

• Plant organ for sexual reproduction
• Flowers produce gametes (sex cells)
• Flowers are necessary for fertilisation to occur

6
Flower Diagram
7
Parts of the Flower

• Peduncle flower stalk
• Receptacle part of stalk bearing the floral
  organs, at base of flower
• Sepalleaflike structures at flower base,
  protects young flower bud
• Calyx all the sepals together form the calyx
• Petal located inside and above the sepals, often
  large and colourful, sometimes scented, sometimes
  producing nectar
• Stamen male part of the flower, consist of the
  anther and filament, makes pollen grains
• Pollen grains containing the male gametes
• Pistil/Carpel female part of the flower, consist
  of the stigma, style and ovary
• Ovule located in the ovaries, carry female
  gametes
• Staminate flower flower bearing only male parts
• Pistillate/Carpellate flower flower bearing only
  female sex parts
• Hermaphrodite flower flower bearing both male
  and female sex parts

8
Method

• Collect specimens of the following flowers (your
  guide will show you where and which flowers to
  collect!)
• Pride of Barbados
• Hibiscus
• Orchid
• Flower of choice
• Make a labeled drawing of the Pride of Barbados
  and Hibiscus flowers (use the flower diagram as a
  guide, include magnification, labels in script)
• Dissect the Pride of Barbados flower ( a
  demonstration will be given)
• Make individual drawings of the petals, sepals,
  stamens, and pistils/carpels
• Dissect the pistil/carpel and make a labeled
  drawing of the ovary and the ovules lying within
  it

9
Section BPollination

• Science Objectives
• Students should be able to
• Define pollination
• State the main ways in which plants achieve
  pollination
• Recognize flower adaptations associated with each
  mode of pollination
• Core Skills targeted
• Drawing
• Information Technology
• CXC Practical Skills
• Analysis and Interpretation
• Drawing

10
Mode of Pollination

• Insect-pollinated flowers may have
• Brightly coloured petals
• Strong sweet fragrance
• Nectar producing glands
• Guidelines to lead insects to Nectar

• Wind-pollinated flowers may have
• Large stigmas outside the flower
• Little or no fragrance
• Light non-sticky pollen
• Lack showy petals

• Bird-pollinated flowers may have
• Long tube shaped flowers
• Bright red and yellow flowers
• No odour

11
Mode of Pollination (Continued)

• Mammal-pollinated flowers may have
• White flowers
• Strong fruity odour
• Flowers opening at night

• Water-pollinated flowers may have
• Pollen which floats on water
• (this form of pollination is rare)

12
Method

• Research and define the following terms in the
  Iris Bannochie library and on the Internet
• Pollination
• Self-pollination
• Cross-pollination
• 2. Note the ways in which pollination may occur
• 3. Identify the various adaptations associated
  with each form of pollination
• 4. Collect flower specimens from the gardens and
  determine their method of pollination through
  completion of the Mode of Pollination Table

13
Mode of Pollination Table
Flower Name Light non-sticky Pollen Sticky Pollen Colourful Petals Sweet Scented Tube Shaped Mode of Pollination

• denotes a positive response

14
Assessment Scheme for Drawing

15
Use the following to label the flower diagram
below Style, stamen, sepal, filament, peduncle,
ovary, anther, receptacle, carpel, stigma, petal,
ovule.
16
Structure and Function of the Flower Quiz 2
Pollination

• Write a short definition for the word
  pollination.
• Why is pollination important to plants?
• State three ways in which pollination can be
  achieved.
• State a plant adaptation associated with each
  mode of pollination above

17
Analysis and Interpretation of the Pollination
Exercise

• Background Information/Biological principles.
  (3 marks)
• Relationship to Investigation/Observation.
• State the significance of pollination

• Identify the flower structures which play the key
  role in pollination
• Note how these structures are adapted to their
  role
• Explanation/Interpretations of result.
  (3-4 marks)
• Give reasons for interpretation of specified
  result
• Conclusion based on observation/data
• Related to Aim
  (2 marks)
• Correct conclusions drawn
• Limitations
  (1-2marks)
• Limitations of the results/conclusions stated
