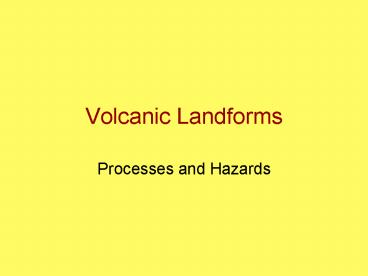

Title: Volcanic Landforms


1
Volcanic Landforms
  • Processes and Hazards

2
Volcanic Landforms
  1. Intrusive Igneous Forms
  2. Extrusive Basalt Landforms
  3. Extrusive Composite volcanoes
  4. Extrusive Rhyolite landforms

3
1. Intrusive Igneous Forms
  • Magma solidified at great depth (so mineral sizes
    are large)
  • Plutons (individual magma chambers)
  • Batholiths (merged magma chambers)

4
(No Transcript)
5
Pluton seen because of glacial erosion, Chile
6
Brandberg, Western Namibia
  • Intrusive igneous rocks are often more resistant
    to erosion, so they are topographic highs

7
Plutons (individual magma chambers) Batholiths
(merged magma chambers) Laccolith
(bubble up strata) Dikes vertical
magma cutting through Sill horizontal magma
inserted between
Large Small
8
(No Transcript)
9
Dike, Spanish Peaks, Colorado more resistant than
surrounding sediment, so stand out
10
Dike, Picture Gorge
11
Volcanic Neck. Dike
Over time, the less resistant rock (i.e.,
pyroclasts and less consolidated lava flows)
comprising the flank of the volcano is eroded
away leaving the resistant neck exposed in
relief.
Shiprock (Tse bi Dahi, Rock With Wings), New
Mexico is the classic example of a volcanic neck
(base of composite volcano, so deep that is
intrusive rock)
12
Classroom Resource
  • Tse bi Dahi
  • Rock With Wings
  • Shiprock
  • Volcanic
  • Neck

13
Viscosity Organization
Extrusive Basalt Landforms Extrusive
Composite volcanoes Extrusive Rhyolite landforms
14
More Viscous More Explosive
Classroom Resource
15
2. Extrusive Basalt Landforms
  • Basalt Flow
  • Flood Basalts
  • Cinder Cone
  • Shield Volcano

Shield Cinder Cone from basalt
eruptions Later Composite volcano
16
Basalt flows will travel great distances and
slope angles will reflect low viscosity.
17
Classroom Resources
  • Recent Hawaii Eruptions (NPS)
  • A year of pahoehoe Spatter Cone

18
Low viscosity releases trapped gases easily, so
not explosive.
19
Classroom Resources
  • Etna Tourist Office
  • No Lives Lost

20
Different Textures, Same Basalt Rock
  • Pahoehoe aa

21
Lava Tubes so fluid that inside keeps moving
creates caves
  • Classroom Resource
  • Lava tube breakout

22
  • Lava Tube, Hawaii near Flagstaff, AZ

Mt St. Helens, OR
23
(No Transcript)
24
Buries old topography
25
(No Transcript)
26
Cinder Cones
SP Crater, AZ
27
Cinder drops out (like hour glass)
28
Cinder Cone Developing
29
Largest drop out first
30
Largest Clasts Volcanic Bombs
  • Classroom Resource
  • Cinder Cone Bombs

31
Crater depression at top formed by force of
eruption
32
Owens Valley, Calif
33
Very common in Arizonaespecially S.F. Volcanic
Field
34
Sunset Crater, AZ
35
Shield Volcanoes
Isabela Island,Galapagos
36
Hawaii built from Shield Volcanoes
37
Weight of new lava has depressed the crust around
Hawaii
  • Moat
  • 5000 m
  • Below
  • Sea
  • Level

38
(No Transcript)
39
Mauna Loa note gentle profile from fluid basalt
flows
40
Mauna Kea
41
Often have Summit Caldera from collapse as lava
flows away
42
3. Extrusive Composite Volcanoes
  • Mt Ararat, Armenia

43
(No Transcript)
44
Sit above Subduction Zones
  • Fuji Egmont

45
Extraordinarily Dangerous
  • from Nova

46
from Nova
47
from Nova
48
Future Disaster Popocatepetl, next to Mexico
City Puebla
49
  • Composite Volcano

50
Online Animations
  • Volcanic Hazards
  • http//serc.carleton.edu/NAGTWorkshops/visualizati
    on/collections/volcano.html

51
Classroom Resources
  • Nuee Ardente (also called glowing avalanche,
    pyroclastic flow)

Set to music (www.mvo.ms) Soufriere, Montserrat
52
Nuee Ardente (Glowing Avalanche or pyroclastic
flow)
53
Mt. Vesuvius
Pompeii, Italy
54
(No Transcript)
55
(No Transcript)
56
Volcanic Ash
57
Debris Avalanche
58
(No Transcript)
59
Mt St. Helens Before Eruption
60
(No Transcript)
61
(No Transcript)
62
(No Transcript)
63
(No Transcript)
64
(No Transcript)
65
Classroom Resource
  • Lahaar, Mt St. Helens Fly Over

66
(No Transcript)
67
(No Transcript)
68
(No Transcript)
69
(No Transcript)
70
Mt Mazama (could be Rainier)
71
Caldera from collapse after lava has
evacuated from magma chamber
  • Crater Lake

72
Mt Hood (my bet to go next)
73
Mount Pinatubo
74
(No Transcript)
75
Classroom Resources
76
Arizona has San Francisco Peaks Mt Baldy
77
Classroom Resource
  • San Francisco Peaks (made by Simpkin, ASU)

78
4. Extrusive Rhyolite Landforms
  • Small Eruptions Rhyolite Domes, Mt Elden

Rhyolite so viscous has trouble flowing, so
piles up in dome shape
79
Many Rhyolite Domes near Mono Lake, Calif
80
Mammoth Lakes, still active evidence carbon
dioxide
81
Classroom Resources
  • After major eruption of composite volcano, will
    often start to rebuild with rhyolite domes

82
(No Transcript)
83
(No Transcript)
84
(No Transcript)
85
Arizona has many rhyolite caldera super
eruptions (17-27 myr ago)
  • Superstition Mtns

Chiricahua Mtns
86
Toba almost did us in
87
(No Transcript)
88
Imagery seen in this presentation is courtesy
of Ron Dorn and other ASU colleagues, students
and colleagues in other academic departments,
individual illustrations in scholarly journals
such as Science and Nature, scholarly societies
such as the Association of American Geographers,
city, state governments, other countries
government websites and U.S. government agencies
such as NASA, USGS, NRCS, Library of Congress,
U.S. Fish and Wildlife Service USAID and NOAA.c
