Periodic Trends

1

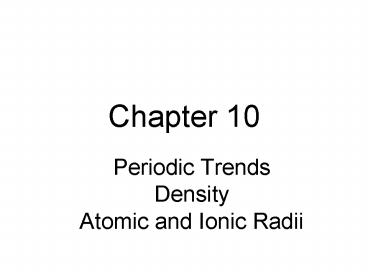

Chapter 10

• Periodic Trends
• Density
• Atomic and Ionic Radii

2
Density
3
Density

• Iridium (Z 77) has the highest density.
• Why not Meitnerium (Z 109?)
• We can predict that an element is more dense if
  it is closer to Iridium.

4
Density
5
Effective Nuclear Charge (Zeff)

• The effective nuclear charge (Zeff) of an atom is
  basically how well it is able to hold on to its
  most loosely held electron.

6
Atomic radius (radii)

• The atomic radius is essentially the size of an
  atom.
• The largest atom is Francium (Z 87).

7
Atomic Radius
Xylophone monkey
8
Rank the atoms from smallest to largest

• Na, K, O, N
• O lt N lt Na lt K

9
Atomic Radius and Effective Nuclear Charge

• The atomic radius decreases as effective nuclear
  charge increases.

10
Effective Nuclear Charge (Zeff)

• The effective nuclear charge of an atom is
  primarily determined by
• The nuclear charge
• The shielding effect

11
The Nuclear Charge (Z)

• Example Carbon vs. Nitrogen
• Which atom would you predict to be smaller?

12
The Nuclear Charge (Z)
Carbon
Nitrogen
Both atoms are in the 2nd row (period) of the
periodic table. What does this tell us?
13
Conclusion Nitrogen has a greater effective
nuclear charge than carbon because nitrogen has 7
protons to pull in its two energy levels of
whereas carbon only has 6 protons holding its
two energy levels. Therefore nitrogen atoms are
smaller than carbon atoms.
Carbon
Nitrogen
14
The Nuclear Charge (Z)

• The size of atoms in the same period (row) is
  determined by the nuclear charge (number of
  protons in the nucleus).

15
Nuclear charge explains why atoms get smaller
across a period
Atomic Radius
Xylophone monkey
16
Shielding Effect.

• The shielding effect is when electrons between
  the nucleus and the outermost electrons in an
  atom shield or lessen the hold of the nucleus on
  the outermost electrons.

17
Shielding Effect.Why is He smaller than Ne?
He
Ne
18
Conclusion Helium has a greater effective
nuclear charge than neon because helium has a
lower shielding effect from having only one
energy level whereas helium two.
He
Ne
19
Shielding Effect explains why atoms get larger
down a group
Atomic Radius
Xylophone monkey
20
Chemical Reactivity
21
Chemical Reactivity
22
Chemical Reactivity

• Metals tend to lose electrons when reacting.
• Large metal atoms are more reactive.
• Nonmetals tend to gain electrons when reacting.
• Small nonmetal atoms are more reactive.

23
Chemical Reactivity

• Metals increase in reactivity left and down.
• Nonmetals become more reactive up and to the
  right.
• Most reactive metal is?
• Most reactive nonmetal is?

Fr
F
24
Francium

• Francium is the least stable naturally occurring
  element with a half-life of only 22 minutes.
• It has been calculated that there is at most 30 g
  of francium in the Earth's crust at any time.

25
(No Transcript)
26
Ionic Radius

• Ionic Radius is the size of an ion.

27
Size Change in Ion Formation
28
Rules for Ionic Radius

• Anions (negative ions) are always larger than
  cations (positive ions).
• Ionic Radius goes by the same rules as atomic
  radius (ions get larger as we move down and to
  the left).
• However it is necessary to treat anions and
  cations separately. (Anions are bigger).

29
Rank the ions from smallest to largest

• K, N3-, Na, O2-
• Na lt K lt O2- lt N3-

30
Homework

• Worksheet Density, Atomic and Ionic Radii (due
  tomorrow).
• Lab Summary Reactivity and the Periodic Table
  (due Monday).
• Study Guide Chapter 10 (due Tuesday).
