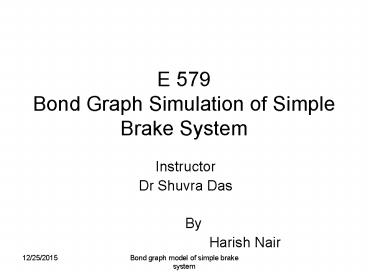

E 579 Bond Graph Simulation of Simple Brake System

1
E 579Bond Graph Simulation of Simple Brake
System

• Instructor
• Dr Shuvra Das
• By
• Harish Nair

2
Contents

• Introduction to brake systems
• Bond graph models
• Results

3
Introduction to brake systems
4
Purpose of Brake System

• The basic functions of a brake system are to
  slow a vehicles speed, to maintain its speed
  during downhill operation, and to hold a vehicle
  stationary after it has come to a complete stop

5
Brake System Components

• All brake systems can be divided into four
  basic subsystems.
• Energy source
• Apply system
• Energy transmission system
• Wheel or foundation brakes

6
Types of energy source

• Muscular driver pedal effort
• Brake boost assist systems
• Power brake systems
• Surge brakes
• Electric brakes
• Spring brakes

7
Energy Transmission Medium

• Mechanical brakes
• Hydraulic brakes
• Air brakes
• Electric brakes
• Mixed brakes

8
Type of Dual Split System

• Single-circuit systems
• Uses only one circuit to transmit
  braking energy to the wheel brakes.
• Dual Circuit systems
• Uses two or more circuits to transmit
  braking energy to the wheel brakes.

9
Typical Brake System components
10
Components of the brake system

• Brake pedal
• Vacuum booster
• Master cylinder
• Hoses
• Brakes
• Rotors

11
Type of Friction Brakes

• Automotive friction brakes are grouped
  according to their basic design into two classes.
• Drum brakes
• Use brake shoes that are pushed out in a
  radial direction against a brake drum.
• Disc brakes
• Use pads that are pressed axially
  against a rotor or disc.

12
Disc Brakes

• The rotor or disc rotates inside the caliper.
  The wheel cylinder pistons force the pads against
  the rotor and produce brake torque.

13
(No Transcript)
14
Working of a Disc Brake System

• When the brake is applied, the force is
  magnified by both mechanical leverage and also by
  hydraulic magnification. Brake fluid under
  pressure enters the caliper and causes the
  braking action.

15
Bond Graph Model
16
Bond Graph Model

• What was used?
• Transformers
• Transformers
• And more transformers!!!
• All values used are from standard
  calculation values for a SUV. The caliper used is
  a twin piston one.

17
Bond Graph
18
Force amplification system
Se 238.51 N
Leverage 3.7
Booster 7.365
Hydraulic Multiplier 14.35
19
Brake_coeff 1.5
C1 Very low up to 1mm Very high after that
20
Drag_force (Fd) 2brake coeff
Braking_torque Fd Effective radius(350mm)
21
Wheel Subsystem
22
New Bond graph
Modulated Resistance
23
Results
24
(No Transcript)
25
Zoomed View
26
Discussion

• The model works fine in that the wheel stops
  eventually.
• However the system response was dominated by
  transients.
• The discontinuous spring element is the
  main reason for the transient phenomenon.

27
Bond Graph 2 result
28
Discussion

• The wheel stops in around 0.5 sec which is a more
  realistic scenario.
• This is probably a better way to do the
  simulation.

29
Conclusion

• To get a better result, we need to model the
  system in such a form that we get a constant
  brake torque at the pads instead of an on and off
  application of the pads to the rotor.
• Bond Graph 2 seems to have solved the problem.
  But the model is still unclear to me.

30
References

• Continental Teves
• Brake design and safety by Rudolf Limpert
• Howstuffworks.com for figures
