Agenda

1

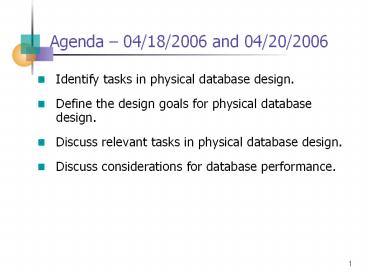

Agenda 04/18/2006 and 04/20/2006

• Identify tasks in physical database design.
• Define the design goals for physical database
  design.
• Discuss relevant tasks in physical database
  design.
• Discuss considerations for database performance.

2
What is physical database design?

• The process of translating a logical description
  of data into technical specifications for storing
  and retrieving data.
• Preparing documentation for actual implementation
  of tables in a database.

3
Physical vs. logical design

• A physical design can look exactly like a logical
  design.
• Small database Logical design usually is the
  same as physical design.
• Or a physical design can look different than a
  logical design.
• Large database Physical design will probably
  change entity structure to ensure good
  performance.
• Differences between physical and logical design
  stem from
• Goals.
• Constraints.

4
Design goals for physical database design

• Provide adequate performance.
• Ensure database integrity.
• Provide database security.
• Anticipate recoverability.

5
Tasks in physical design

• Convert entities into tables.
• Identify all necessary data attributes.
• Determine correct size and data type for each
  data attribute.
• Choose an appropriate primary key.
• Identify foreign keys necessary to sustain
  relationships.
• Define necessary constraints.
• Enhance performance.
• Identify size and access methods of data.
• Choose appropriate hardware.
• Create indices.
• De-normalize the design as necessary.
• Create design and procedures for archiving data.

6
(No Transcript)
7
Questions to answer during physical design for
the sample database

• How should the super-type of EMPLOYEE be related
  to the required sub-types? Separate tables or
  the same table?
• How do you relate a sub-type of a generalization
  relationship (FACULTY) with a weak entity (COURSE
  OFFERING)?
• How will the supertype of COURSE be related to
  the potential sub-types of the course? Separate
  tables or the same table?
• What should you do with the concatenated key in
  COURSE OFFERING?

8
Name Type Primary Key Foreign Key Other Constraints
SSN Char(9) Yes No Not null
Name Varchar2(30) No No Not null
Address1 Varchar2(30) No No
Address2 Varchar2(30) No No
City Varchar2(20) No No
State Char(2) No No
Zip Char(9) No No
Birth_date Date No No
Emp_type Char(2) No No Must be f or c
Ed_level Char(6) No No
Grant_type Char(8) No No Must be A1 through A7
Fund_Category Number(4) No No
Emp_level Char(5) No No
Contract_type Char(4) No No

9
Name Type Primary Key Foreign Key Constraints
Course_id Char(6) Yes No Not null
Name Varchar2(25) No No Not null
Description Varchar2(75) No No
Min_credits Number(1) No No Must be gt 1
Max_credits Number(1) No No Must be lt 6
Name Type Primary Key Foreign Key Constraints
Course_id Char(6) Yes Yes ref course Not null
Course_type Char(6) Yes No Must be d or cap
Start_date Date No No Not null
Approval Char(15) No No Not null
Qual Varchar2(100) No No Not null
10
Choosing datatypes for attributes

• A datatype is a name or label for a set of values
  and some operations which one can perform on that
  set of values.
• Examples in SQL varchar, date, number, integer
• Concept of strongly data typed.
• Objectives for choosing an appropriate data type
• Minimize storage space.
• Represent all possible values.
• Improve data integrity.
• Support all data manipulations.

11
Choosing an appropriate primary key

• General rules
• Must be a unique value for each row in the table.
• Cannot be null.
• Should be static over the life of the row.
• Physical primary key design heuristics
• Should be a single attribute.
• Should be numeric.
• Should not be intelligent.
• Should be able to be an enterprise key.

12
Overview of Database Performance

• Key metrics for database performance
• Minimize response time to access data in a
  database.
• Minimize response time to change contents in a
  database.
• Most concerned with balancing disk access and
  memory capacity.

13
Input data relevant to performance

• Table profile
• Number of tables
• Number of rows in a table
• Number of attributes in a table
• Application profile
• Number of screens
• Number of reports
• Frequency of screen/reports
• Number of intended joins
• Types of queries
• Expected response time

14
Improving performance

• With optimizing use of existing resources.
• With better or more resources.
• With indexes.
• With denormalization.
• With procedures to archive data.

15
Cluster files to better use memory and disk
access time
16
CREATE CLUSTER ordering (CLUSTERKEY
CHAR(6)) CREATE TABLE tbl_customer (customer_id
CHAR(6) NOT NULL, Address VARCHARs(25)) CLUSTER
ordering (customer_id) CREATE TABLE
tbl_order (order_id CHAR(6) NOT
NULL, Customer_id CHAR(6) NOT NULL, Order_date d
ate) CLUSTER ordering (customer_id)
17

• Add or change resources to improve performance.
• Will help a little more processor power.
• Will help more more memory.
• Will really help Faster, more efficient disk.
• RAID Redundant arrays of inexpensive (or
  independent) disks.
• A set of multiple physical disk drives that
  appear to the designer and user as a single
  storage unit.
• Segments of data, called stripes, cut across all
  of the disk drives.
• Access can occur concurrently.
• www.acnc.com/04_01_00.html
• www.raidweb.com/whatis.html
• Different types of RAID are available. RAID-0
  through RAID-7, RAID-10, 53, 01.

18
RAID Example
19
Improving performance with indexes

• Indexes are probably the single most important
  tool for improving the performance of a database.

• Can add an index to a database with a simple SQL
  command
• Create index index_name on table (column_name)
• Understanding what happens when an index is
  created requires a basic understanding of
  indexing and file organization.

20
File organization and access concepts

• File organization.
• The physical arrangement of data in a file into
  records and pages on secondary storage.
• File organization dictates the physical placement
  of records.
• File access methods.
• The steps involved in retrieving records from a
  file.
• File access methods dictate how data can be
  retrieved from secondary storage. Options
  include
• Sequential access from beginning. Sequential
  access from pre-defined point.
• Backwards from end. Backwards from pre-defined
  point.
• Direct. (not really direct has to go through a
  series of indices)

21
General file organization options

• Sequential file organization. Records are stored
  one after another. Referred to as a heap or
  pile.
• Indexed file organization. Records are stored
  either ordered or not as in sequential
  organization. Additional structure, index, is
  built based on pre-determined keys for the
  records.

22
What is an index?

• An additional physical file.
• An index is a sorted list of pointers stored
  along with the actual data.
• Benefit Indexes provide faster direct data
  access.
• Drawbacks
• Indexes create slower data updates.
• Indexes require periodic reorganization.

23
What types of indices are used?

• Indexes are frequently stored in a structure
  called a B-tree.
• Other types of indices are
• Bitmap index. Identifies the value of a given
  column in a given row as being true/on or
  false/off.
• Join index. Creates an index for multiple tables
  that are commonly joined together for pre-defined
  queries.

24
Clustered vs. non-clustered indices

• Clustered index.
• Declaration means actual table data will be
  ordered by the clustered index.
• Can only have one clustered index per table.
• Greatly improves access time for tables
  frequently accessed by clustered index.
• Decreases update performance if data is volatile.
• Not available on all DBMSs.
• Non-clustered index.
• Usually the default indexing structure.
• Does not change the order of the table data.
• Functions as a secondary index.

25
Rules of thumb for applying indexes

• Use on larger tables.
• Use when a relatively small percentage of the
  table will be accessed.
• Index the primary key of each table.
• Index frequently used search attributes.
• Index attributes in SQL ORDER BY and GROUP BY
  commands.
• Use indexes heavily for non-volatile databases
  limit the use of indexes for volatile databases.
• Avoid indexing attributes that consist of long
  character strings.

26
Issues in indexing

• Indexes affect table maintenance performance.
• Each time an add or delete is performed, the
  index must be updated along with the data.
• Depending on the size of the database, these
  index updates can be extremely time-consuming.
• Imagine the problems with having an index
  declared for every attribute.
• Solutions
• Remove indexes prior to batch updates.
• Recreate indexes after the batch update is
  finished.
• Consider using a batch procedure to create
  indexes after a table has been updated, and
  before queries are run.

27
Improving performance with denormalization

• Modify the degree of normalization.
• Recognize that joins require much time when used
  in queries.
• More joins more time.
• Combine entities with 11 relationship into a
  single entity.
• Combine entities with 1m relationship into a
  single entity. Usually done with brief repeating
  groups.

28
Example for denormalization

• Example
• A patient can have up to 4 insurance companies.
• Patient is a strong entity. Insurance company is
  a strong entity.
• Normally, the repeating group of insurance
  companies would be in a separate intersection
  entity relating a patient to one or more
  insurance companies.
• Diagram on next page

29
(No Transcript)
30
Insurance example - Denormalized
31
Issues in denormalization

• Can be risky.
• Introduces potential for data redundancy.
• Can result in data anomalies.
• Should be documented.
• This documentation must be maintained as an
  audit path to the actual implementation of the
  database.
• Logical data model details fully normalized
  database with an ERD.
• Physical data model will show denormalized
  database with an ERD.
• Include in the documentation the reasons for
  denormalization.

32
Improving performance with derived data

• Derived or calculated data is usually not
  included in a database.
• Not ever included on a logical data model.
• Examples of derived data include extended
  price, total amount, total pay, etc.
• Problems with including derived data in a
  database
• What happens when the underlying data is changed?
  How do you ensure that the derived data will
  also be changed?
• For example, lets say that the total of an order
  is kept in the database. What happens when an
  item quantity changes, or an item price changes?
  The order total, if stored, must also be changed
  to reflect those changes in the underlying data.

33
When to include derived data

• Sometimes it is a good idea to include derived
  data in the physical database design
• Use when aggregate values are regularly
  retrieved.
• Use when aggregate values are costly to
  calculate.
• Permit updating only of source data.
• Do not put derived rows in same table as table
  containing source data.
• Examples of derived data frequently stored on
  databases
• Student class standing.
• Order and invoice total.
• Credit card balance.
• Checking account balance.

34
Organization must manage data resources

• Types of data used by an organization
• Current transaction data.
• Historical data for decision making.
• Audit data for accounting and/or governmental
  regulations.
• Data differentiation external vs. internal
• All must be designed, implemented and maintained.
• Must have procedures for extracting, transforming
  and loading (ETL) data as necessary.

35
Archive data for audit purposes

• Not all data must be stored on a directly
  accessible data storage device (disk).
• Examples of archived data
• Checking transactions.
• Tax data.
• Accounting audit trail.
• Can store data on tape or other cheaper, less
  accessible media.
• Must have procedures for extracting, transforming
  and loading (ETL) data as necessary.
• Archive database design is usually a copy of the
  transaction database design.

36
Use a data warehouse

• A Data warehouse differs from a transaction
  database.
• Used to support decision making.
• Contains aggregated data.
• Is frequently denormalized to improve
  performance.
• Contains data in a format specific to answering
  queries.
• Data warehouse is separate from transaction
  database.
• A data warehouse is built from data stored in the
  transaction database.
• Different design.
• May use a data warehouse and a transaction
  database concurrently to answer queries.
