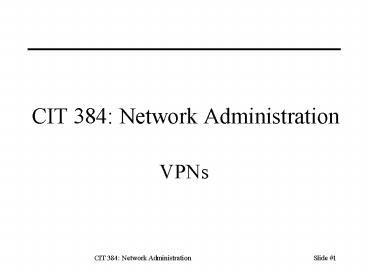

VPNs

1
CIT 384 Network Administration

• VPNs

2
Topics

1. VPNs
2. Tunneling
3. ssh
4. SSL
5. IPsec
6. L2TP

3
VPNs

• VPNs try to provide leased line features
• Privacy preventing unauthorized people from
  being able to read VPN traffic.
• Authentication verifying that sender of VPN is
  an authorized device.
• Integrity verifying data is not changed in
  transit.
• using a public network at lower cost.

4
VPN Example

1. PC1 sends IP packet to S1
2. Router encapsulates IP in VPNIP headers
3. No one can read packet in the middle
4. ASA-1 checks security and de-encapsulates.
5. S1 receives IP packet from PC1.

5
VPN Types

• Remote Access individual user to network.
• Intranet connect networks of two sites.
• Extranet connect networks of two partnering
  organizations.

6
Tunneling

• Tunneling Encapsulation of one network protocol
  in another protocol
• Carrier Protocol protocol used by network
  through which the information is travelling
• Encapsulating Protocol protocol (GRE, IPsec,
  L2TP) that is wrapped around original data
• Passenger Protocol protocol carries original data

7
Tunneling Protocols by Layer
Application
Transport
Network
Data Link

• ssh, SSL
• IPsec
• L2TP, MPLS

8
ssh

• Secure Shell
• Replaces
• telnet
• ftp
• rlogin
• rsh
• rcp

9
SSH Security Features
10
ssh tunneling

• .Use ssh tunneling to encrypt TCP connections
• ssh L lportrhostrport rhost
• Carrier Protocol IP
• Encapsulating Protocol ssh
• Passenger Protocol TCP on a specific port

11
SSL/TLS

• Secure Sockets Layer
• Commonly used to encrypt web connections.
• Also used for IMAP, LDAP, POP, etc.
• Transport Layer Security supersedes SSLv3
• Can be used to create tunnels
• Configure similarly to ssh tunnels.
• Stunnel is open source SSL tunnel software.

12
IPsec

• IPsec includes three major protocols
• Internet Key Exchange (IKE) Provides a framework
  for negotiating security parameters.
• Encapsulating Security Payload (ESP) Provides a
  framework for encrypting, authenticating, and
  securing data.
• Authentication Header (AH) provides a framework
  for authenticating and securing data.

13
IPsec General Operation

• To communicate with IPsec, devices must
• Agree on a set of security protocols.
• Agree on an encryption algorithm.
• Exchange cryptographic keys.
• Use above to encode and decode data.

14
IPsec Packet Encapsulation

• Transport Mode
• Original IP header of packet that is being
  encrypted is used to transport the packet.
• ESP or AH header inserted btw IP header and
  payload.
• Tunnel Mode
• New IP header is added in front of ESP/AH header.
  This header contains IP addresses of the two IP
  peers as source destination.

15
IKE

• IKE handles
• Negotiating protocol parameters
• Exchanging public keys
• Authenticating both sides
• Managing keys after exchange
• IKE is a UDP-based protocol.

16
ESP

• Encapsulates IP packet to provide
• Authentication
• Encryption
• Integrity validation
• Anti-replay
• IP protocol 50, described in RFC 2406

17
AH

• Authentication Header provides auth integrity
• Uses keyed hash algorithm as checksum.
• Unlike CRC, cannot be reproduced w/o key.
• Also protects against replay attacks.
• Does not encrypt packet contents.

18
NAT Transparency

• PAT cant change encrypted transport header.
• Solution add an extra UDP header.

19
GRE

• Generic Routing Encapsulating
• Cisco IP tunneling protocol.
• Allows use of multicast protocols.
• Combine with IPsec to allow routing information
  to be passed btw networks.
• IP protocol 47

20
L2TP

• Open successor to
• L2F (Cisco)
• PPTP (MS)
• Layer 2 tunnel so it supports any layer 3
  protocols.
• Encapsulates in UDP datagram to port 1701
• Does not provide encryption or authentication.
• Use with IPsec

21
Key Points

• Tunneling
• Carrier Protocol
• Encapsulating Protocol
• Passenger Protocol
• VPNs
• layer 4 ssh, SSL
• layer 3 IPsec
• layer 2 L2TP
• IPsec
• ESP
• AH
• IKE
• Tunnel mode vs transport mode

22
References

1. Daniel J. Barrett, Robert G. Byrnes, Richard
   E. Silverman, SSH, The Secure Shell, 2nd edition,
   OReilly, 2005.
2. Vijay Bollapragda, IPsec VPN Design, Cisco Press,
   2005.
3. James Boney, Cisco IOS in a Nutshell, 2nd
   edition, OReilly, 2005.
4. Cisco, Cisco Connection Documentation,
   http//www.cisco.com/univercd/home/home.htm
5. Cisco, Internetworking Basics, http//www.cisco.co
   m/univercd/cc/td/doc/cisintwk/ito_doc/introint.htm

6. Saadat Malik, Network Security Principles and
   Practices, Cisco Press, 2002.
7. Wendell Odom, CCNA Official Exam Certification
   Library, 3rd edition, Cisco Press, 2007.
