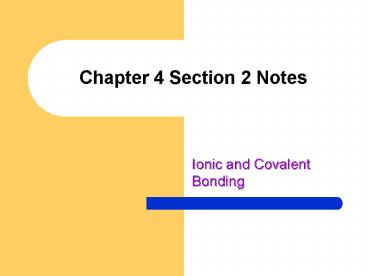

Chapter 4 Section 2 Notes

1
Chapter 4 Section 2 Notes

• Ionic and Covalent Bonding

2
What holds bonded atoms together?

• Atoms bond when their valence electrons interact
• Atoms with full outermost energy levels are less
  reactive (Noble Gases)
• Atoms with partially filled energy levels are
  more reactive (Groups 1-17)
• Goal of atoms have a full outer energy level

3
What holds bonded atoms together?

• Octet Rule atoms tend to gain, lose, or share
  electrons so they have 8 electrons in their outer
  shell.
• The positively charged nucleus attracts the
  negatively charged electrons this bond holds 2
  atoms together.
• Bonds behave like flexible springs instead of
  like sticks

4
Electrons in Shells

• Electrons are placed in shells according to
  rules
• 1st shell can hold up to 2 electrons
• 2nd shell can hold up to 8 electrons
• 3rd shell can hold up to 18 electrons, but after
  8, you move to the 4th shell

5

• Na would like to lose 1 electron
• N would like to gain 3 electrons
• O would like to gain 2 electrons

6
(No Transcript)
7
Electron Dot Diagrams

• Symbols of atoms with dots to represent the
  valence-shell electrons
• 1 2 13 14 15 16
  17 18
• H? He
• ? ? ?
  ? ? ? ? ? ?
  ? ?
• Li? Be? ? B ? ? C ? ? N ?
  ? O ? F ? Ne
• ?
  ? ? ? ? ?
  ? ?
• ? ? ?
  ? ? ? ? ? ?
  ? ?
• Na? Mg? ? Al? ? Si ? ?P?
  ?S? Cl ? Ar
• ?
  ? ? ? ? ?
  ? ?

8
Ionic Bonds

• Ionic Bond formed when metals react with
  nonmetals electrons are transferred
• Metals lose electrons to form POSITIVELY charged
  ions, or cations
• Examples Lithium, Sodium, Beryllium, Magnesium
• Positive ions form when the number of electrons
  are less than the number of protons
• Group 1 metals ? ion1
• Group 2 metals ? ion2
• Group 13 metals ? ion3

9
Ionic Bonding One big greedy thief dog!!
10
Formation of Sodium Ion

• Sodium atom Sodium ion

• Na ? e? ??? Na
• 2-8-1 2-8 ( Ne)
• 11 p 11 p
• 11 e-
  10 e-
• 0
  1

11
Formation of Magnesium Ion

• Magnesium atom Magnesium ion
• ?
• Mg ? 2e? ?? Mg2
• 2-8-2 2-8 (Ne)
• 12 p 12 p
• 12 e-
  10 e-
• 0
  2

12
Some Typical Ions with Positive Charges (Cations)

• Group 1 Group 2 Group 13
• H Mg2 Al3
• Li Ca2
• Na Sr2
• K Ba2

13
Quick Quiz 1

• A. Number of valence electrons in aluminum
• 1) 1 e- 2) 2 e- 3) 3 e-
• B. Change in electrons for octet
• 1) lose 3e- 2) gain 3 e- 3)
  gain 5 e-
• C. Ionic charge of aluminum
• 1) 3- 2) 5- 3) 3

14
Quiz Quiz 1 Answers

• A. Number of valence electrons in aluminum
• 3) 3 e-
• B. Change in electrons for octet
• 1) lose 3e-
• C. Ionic charge of aluminum
• 3) 3

15
Quick Quiz 2

• Give the ionic charge for each of the following
• A. 12 p and 10 e-
• 1) 0 2) 2 3) 2-
• B. 50p and 46 e-
• 1) 2 2) 4 3) 4-
• C. 15 p and 18e-
• 2) 3 2) 3- 3) 5-

16
Ionic Bonds

• Nonmetals gain electrons to form NEGATIVELY
  charged ions, or anions
• Examples Oxygen, Sulfur, Fluorine, Chlorine
• Negative ions form when the number of electrons
  is more than the number of protons
• Group 15 nonmetals ? ion-3
• Group 16 nonmetals ? ion-2
• Group 17 nonmetals ? ion-1

17
Ionic Bonds

• Electrons are transferred in ionic bonding
• One atom gains electrons, and the other atoms
  loses electrons

18
Ionic Bonds

• Example Sodium loses one electron to get a 1
  charge (Na). Chlorine gains an electron to get
  a -1 charge (Cl-). Then, the oppositely charged
  ions attract each other and form a bond.

19
Ionic Bonds
20
Ionic Bonds

• Ionic compounds are in the form of network
  structures they therefore have high melting and
  boiling points because of the high amount of
  energy required to pull apart the bonds

21
Ionic Bonds

• Ratio of Ions
• The chemical formula NaCl tells us there is 1 Na
  ion and 1 Cl- ion, forming a neutrally charged
  particle.
• Since there is only one atom of each element,
  there is a 11 ratio
• The chemical formula CaF2 tells us there is 1
  Ca2 ion and 2 F- ions. 2 F- ions are needed to
  balance out the 2 charge so the particle is
  neutral

22
Ionic Bonds

• Electricity
• Solid ionic compounds dont conduct electricity
• When dissolved in water, ionic compounds conduct
  electricity because the ions are free to move

23
Metallic Bonds

• Metallic Bond a bond formed by the attraction
  between positively charged metal ions and the
  electrons around them.
• Occurs between atoms of metal elements

24
Metallic Bonds

• The attraction between the nucleus and the
  neighboring atoms electrons holds the atoms
  close together
• Since the atoms are packed closely, the electrons
  move from atom to atom, which is why
• Metals conduct electricity
• Metals are flexible and bend without breaking
  (ductile and malleable)

25
Covalent Bonds

• Covalent Bond a bond formed when atoms share one
  or more pair of electrons
• Often made of molecules
• Formed between nonmetal atoms
• Atoms joined by covalent bonds share electrons

26
(No Transcript)
27
Covalent Bonds

• There are 2 types of covalent bonds
• Nonpolar covalent bonds electrons are shared
  equally often occurs between 2 atoms of the same
  element
• Polar covalent bonds electrons are shared
  unequally often occurs between 2 atoms of
  different elements shared electrons are
  attracted to the nucleus of 1 atom more than the
  other
• Usually, electrons are more attracted to atoms of
  elements located to the right and closer to the
  top of the periodic table

28
Nonpolar Covalent Bond
29
Polar Covalent Bond
Note Partial charges occur with polar covalent
bonds
30
Structural Formulas

• When writing structural formulas
• 1 line drawn indicates that atoms share 1 pair,
  or 2 electrons
• Example Cl-Cl
• 2 lines drawn indicate that atoms share 2 pair,
  or 4 electrons
• Example OO
• 3 lines drawn indicate that 3 pair, or 6
  electrons are being shared

31
Polyatomic Ions

• A polyatomic ion is an ion made of 2 or more
  atoms that are covalently bonded and that act
  like a single ion
• Some polyatomic anion names relate to their
  oxygen content
• An anion ending in ate is the ion with one more
  oxygen atom
• An anion ending in ite is the ion with one less
  oxygen atom
• Examples Sulfate (SO4-2) and Sulfite (SO3-2)
