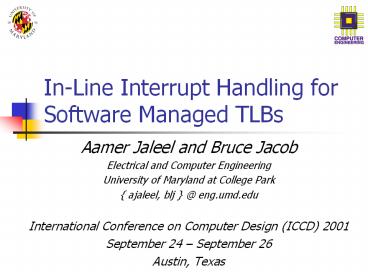

In-Line Interrupt Handling for Software Managed TLBs

1
In-Line Interrupt Handling for Software Managed
TLBs

• Aamer Jaleel and Bruce Jacob
• Electrical and Computer Engineering
• University of Maryland at College Park
• ajaleel, blj _at_ eng.umd.edu
• International Conference on Computer Design
  (ICCD) 2001
• September 24 September 26
• Austin, Texas

2
Outline

• Reorder buffers
• Interrupt handling
• Traditional method
• In-lined method ( novel solution )
• Performance of in-lining TLB interrupts
• Conclusions

3
Reorder Buffer (ROB)

• Hardware data structure (queue)
• Holding tank for instructions their pipeline
  state
• New instructions are queued at the tail and
  retired from the head
• Allows for interrupts to be handled in-order

ROB0
ROB1
ROB2
TAIL
ROB3
ROB4
Queue new instructions
ROB5
Empty Slots
ROB6
ROB7
ROB8
HEAD
ROB9
ROB10
Retire instructions
ROB11
ROB12
ROB13
ROB14
ROB15
Reorder Buffer (ROB) A Hardware Data Structure
4
Handling an Interrupt ( Traditional Method )

• Interrupts handled at retire stage
• If ROB head .has_exception true
• Save state exceptional PC
• Flush ROB
• Set PC to appropriate handler
• Handle exception with privileges enabled
• Restore exceptional PC and continue executing
  user code

5
A Novel Approach In-lining

• Hardware knows length of handler
• If ROB head .has_exception true
• If empty slots in ROB gt LHC enough resources
• Save current tail pointer nextPC ( PC of next
  instruction to fetch )
• Set mode to inline and reset head and tail
  pointers
• Fetch handler, once done unset INLINE mode, tail
  pointer, continue fetching user code
• When TLB updated, undo all TLB misses in ROB
• Else, handle interrupt by traditional method

6
Interrupt In-lining (An Example)
Tail Ptr
Head Ptr
Assuming length of handler LHC 6, Instruction
Fetch/Retire Per Cycle 2
7
Interrupt In-lining (An Example)
CYCLE 2 3 Handler Fetched User Handler
Execute (ROB 2,7,8)
8
Interrupt In-lining (An Example)
Restore Tail Ptr
CYCLE 3 User Handler Execute
CYCLE 5 Fetch user code from where it last
stopped
9
Interrupt In-lining (An Example)
Restore Tail Ptr
CYCLE 5 Fetch user code from where it last
stopped
CYCLE 6 Fetch execute more user code
10
Interrupt In-lining (An Example)
TLB UPDATED UNDO ALL TLB INTERRUPTS
CYCLE 5 Fetch user code from where it last
stopped
CYCLE 6 Fetch execute more user code
11
Interrupt In-lining (An Example)
CYCLE 6 Fetch execute more user code
12
Issues With Interrupt In-lining

• Hardware knows handler length
• There should be a privilege bit per ROB entry
• When done fetching handler, fetch nextPC
• Save nextPC NOT exceptionalPC ( Add MUX )
• When done updating TLB
• Undo all instructions w/TLB miss and set them as
  ready to execute
• Branch mispredictions must be handled
• If mispredict occurs while in-lining, replace
  nextPC

13
Experimental Methodology

• Simulation Tool
• Alpha 21264
• 4-way OOO
• 80 instructions in flight
• FA I/D TLBs w/NMRU policy, 128-entry
• 8 KB page size
• 150 renaming registers
• 22 instruction D-TLB handler

• Benchmarks
• Small scientific kernels
• Red Black
• Jacobi
• Matrix Multiply
• Quicksort

14
Why not SPEC2000?

• TLB miss rates are not realistic

Real Life Apps
Spec FP 2000
15
Results - In-lining Limitations

• Benefit from in-lining 80-90 of TLB miss
  interrupts
• Can not in-line because
• Not enough space in ROB ( lt 2 )
• Pipeline already stalled due to lack of resources
  ( free registers )

16
of User Instructions Flushed

• Reorder buffer 50 55 full when interrupt occurs
• In-lining reduces instr flushed by 40 80

17
Interrupt Overhead

• Cost of re-fetching and executing flushed instr
• In-lining reduces cost of TLB miss by 10 40

18
Performance of Benchmarks

• Execution time ? by 5 25 for same size TLB
• Can get the performance of a traditional TLB with
  an in-lined TLB of ¼ size

19
Speedup Vs Miss Rate

• As TLB management ? benefit from in-lining ?
• Applications that will benefit from in-lining are
  those that need it the most

20
Conclusions

• In-lining can be used for ALL types of software
  handled transparent interrupts
• Avoids unnecessary flushing of pipeline
• In-line interrupt handling for TLB misses
• Cuts of instr flushed by 55-80
• Reduces overhead by 10-40
• Improves performance by 5-25

21
Future Work

• Speculative in-lining
• No need to check for ROB space, check for
  deadlock
• Energy savings by not re-fetching and
  re-executing instructions

22
Related Work

• Save entire internal state of entire pipeline and
  restore after completion of handler (Cyber 200
  for VM interrupts)
• Save instruction window (ROB) as part of machine
  state, restore when done (Torng Day)
• A new thread fetches handler code while existing
  thread continues fetching user code (Zilles,
  Emer, Sohi)

23
Miscellaneous Slides

• If Time Permitting

24
Interrupts

• Interrupt exceptional condition
• Perform behind the scenes work
• Transparent to the user application
• e.g. unaligned memory access, instruction
  emulation, TLB miss handling, etc
• Two types
• Software handled ( privileged code )
• Hardware handled ( special hardware )

25
Precise Interrupts

• Precise Interrupt
• Everything before excepted instruction has
  finished execution and has committed
• Everything after excepted instruction has NOT
  committed
• The excepted instruction may or may not have
  finished execution

26
Software-Managed TLBs Vs Hardware-Managed TLBs

• Hardware managed TLBs outperform software managed
  TLBs
• Software managed used because of flexibility
• Software managed TLBs
• E.g. MIPS, Alpha, SPARC, PA-RISC
• Hardware managed TLBs
• E.g. IA-32, PowerPC

27
Disadvantages

• Two sources of performance loss
• No user code executes while exception is handled
• Instructions are re-fetched and re-executed
• Solution avoid pipeline ROB flushes
• Why is the pipeline flushed?
• Ensure privileges?
• Attach a privilege bit to ROB entry ( Henry )
• Have enough space for interrupt handler?

28
Interrupt In-lining An Example
Assuming length of handler LHC 6, Instruction
Fetch/Retire Per Cycle 2
29
In-lining TLB Interrupts

• First level handler length is short
• TLB miss handlers are most commonly executed OS
  primitives
• TLB miss handling account for more than 40 of
  total run time and 80 of the kernels computation
  time
• TLB miss interrupts occur once every 100 1000
  instructions in applications ranging from
  databases to engineering workloads

30
Issues With Interrupt In-lining

• In-lined instructions shouldnt affect state of
  user registers
• Problem w/conventional method of register
  renaming
• First handler instruction should receive a
  mapping of the current state of register file
• A user instruction should receive mapping of the
  previous user instruction mapped

31
Alpha 21264 Pipeline

• Fetch
• Decode Map
• Execute
• Write back
• Retire
