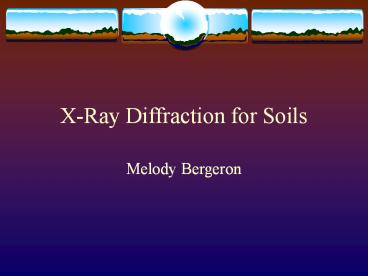

X-Ray Diffraction for Soils

1
X-Ray Diffraction for Soils

• Melody Bergeron

2
X-Ray Diffraction

• Capabilities
• Crystallography
• How it works
• Sample Preparation
• Examples

3
X-Ray Diffraction

• Mineral Identification ? Element Analysis
• independent of crystal size, small sample,
  nondestructive, mixtures
• Phases as little as 1-3 sample weight can be
  identified
• Qualitative or Quantitative
• Must be crystalline!

4
Crystallography

• Unit Cell
• Crystals repeating structures
• Atoms form planes in the structure

enstatite
beryl
albite
fluorite
Perkins, 1998
5

• Planes in a crystal
• Diffraction based on ? of X-rays and plane spacing

n
http//pubs.usgs.gov/of/of01-041/htmldocs/xrpd.htm
6
The X-ray Diffractometer

• Cu source, X-ray beam, interaction with specimen
• Detector records diffraction pattern at varied
  angles

http//pubs.usgs.gov/of/of01-041/htmldocs/xrpd.htm
7
Powder XRD

• Powder, crystals in random orientations
• Goniometer swings through many angles
• Enough crystals, enough angles, get enough
  diffraction to determine mineralogy

http//pubs.usgs.gov/of/of01-041/htmldocs/xrpd.htm
8
XRD of Soils and Sample Prep.

• XRD used for Identification of Components
• Silicates, Clays, Carbonates, Oxides, some
  organics?, etc
• Need disaggregated, powdered samples for analysis
  dry preferred
• Additional sample preparation is needed for
  detailed clay analyses

9
Sample Problems Specific For Soils

• Methods depend on what question(s) you are asking
• Dry is preferred (bake at 100 ºC for 1 hr), but I
  have run wet samples for fragile clays
• Depending on the soil horizon - disaggregation
  may be difficult, organic material may need to be
  removed, cements may need to be dissolved
• Claysif you see broader peaks in your pattern

10
Clay Prep. and Analysis

• Clay fraction needs to be separated (by size) for
  detailed analyses mix sample in water, clays
  will be suspended, decant and centrifuge liquid
  to concentrate the clays
• Several methods for mounting the clays need to
  orient them flat
• Depending on the type of clay, further
  preparation is needed

Tetrahedral Octahedral Tetrahedral
11
Clay Prep. and Analysis

• Methods include
• Solvating with ethylene glycol or glycerol
  (replaces water gives a constant interlayer
  spacing)
• Baking at various high temperatures to destroy
  parts of the crystal structure
• Saturating with cations (Mg, K, etc.) may produce
  diagnostic structural changes
• 14Å, 10Å, 7Å Clay Groups

12
14Å, 10Å, 7Å Clay Groups

• Smectites (shrinking-swelling clays) 14Å,
  greater than 14Å if interlayer water
• Chlorite 14Å and 7Å peaks
• Kaolinite 7Å peak
• 10Å clays are Micas, Illite or Glauconite
• Vermiculite 14Å and ?Å depending on Mg, Na, Fe
• Sepiolite, Palygorskite, Halloysite check for
  fibrous or tubular material in microscope first

13
Additional Clay Problems

• Polytypes many clay have several polytypes that
  may or may not be distinguishable in your
  diffraction pattern
• Interlayering different types of clays can
  alternate (randomly or ordered ratios) producing
  a completely different diffraction pattern
• How important is it that you know exactly which
  clay you have present?...
• Determining Cations (for CEC) Since changing
  cations may not alter the diffraction pattern, it
  is generally preferable to use EDX-SEM to
  determine the cations

14
Examples

• Control 16Å peak and small peak at 10Å
• EG Solvated - 16Å shifted to 17Å
• Baked samples - 16Å peak collapses to 10Å peak
  and small 5Å peak
• What clay is it?

15
Go To Software
16
Clay Mineralogy

• Surface charges on clays affect their absorption
  properties and their engineering properties
• Ex. some clays allows water into their inner
  layer and by doing so expand when wet and
  contract when dry
• Ex. other clay minerals exclude water from their
  inner layer
• Ex. Different clays bind different cations
• Cation Exchange Capacity

17
Cation Exchange Capacity

• The amount of exchangeable cations a soil or
  mineral is capable of retaining on its surface.
• Charge balance of overall mineral is required
• CEC - ?Cations ? Anions 0
• CEC ?Cations ? Anions

18
Calculation of Layer Charge and CEC for
Montmorillonite (M0.33Si4 Al1.67 (Mg2,Fe2)0.33)
Atom Z ½ cell Total charge
Si 4 4 16
Al(VI) 3 1.67 5
Mg or Fe2 2 0.33 0.66
O 2- 10 20-
OH 1- 2 2-
Total layer charge Total layer charge Total layer charge -0.33
Interlayer Charge (mol charge/mol clay) Interlayer Charge (mol charge/mol clay) 0.33
Formula weight for ½ cell of montmorillonite 359
g/mol Thus CEC of montmorillonite is 92 cmol/kg
-22
19
Clay Mineral Properties
20
From McBride 1994
21
Hydrated Cations in Interlayer
From Schulze 2002
22
c-axis Spacing of Clay Minerals
23
Structural Impacts on Clay Mineral Properties (1)

• Isomorphic substitution creates overall negative
  charge on clay layers.
• To balance charge cations are adsorbed in the
  interlayers.

From Goldberg 2000
24
Structural Impacts on Clay Mineral Properties (2)

• Substitution originating in tetrahedral sheet
  leads to stronger sorption of some cations (e.g.,
  K) than isomorphic substitution in octahedral
  sheet.
• Shrink-swell characteristics of clay minerals are
  dictated by the layer charge.
• Edges of clay minerals have unsatisfied bonds and
  thus can form covalent bonds with sorbates

25
Surface Functional Groups on Clay Mineral Edges
Figure 5.3 from Sparks, 1995
26
Sorption to Mineral Surfaces

• Heavy metals, organics, etc. can sorb to many
  mineral surfaces
• If the mineralogy (and field conditions like pH,
  ppt, etc.) can be identified then the fate and
  transport of contaminants can be modeled

27
Additional Information

• http//www.tulane.edu/sanelson/eens211/x-ray.htm
• X-Ray Diffraction and the Identification and
  Analysis of Clay Minerals Moore and Reynolds
• Minerals in general - http//mineral.galleries.com
  /
