Nonpolar Covalent Bonds

1
Nonpolar Covalent Bonds

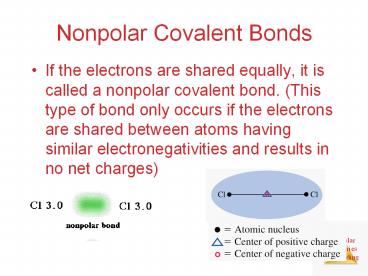

• If the electrons are shared equally, it is called
  a nonpolar covalent bond. (This type of bond only
  occurs if the electrons are shared between atoms
  having similar electronegativities and results in
  no net charges)

2
Polar Covalent Bonds

• If the electrons are shared unequally, it is
  called a polar covalent bond.
• The unequal sharing results in a partial positive
  charge and a partial negative charge called
  dipoles.
• The atom having the greater electronegativity
  will have the partial negative charge.

3
Review
4
Nonpolar Molecules

• Molecules consisting of nonpolar bonds are also
  nonpolar.
• Examples of nonpolar molecules include all of the
  diatomic molecules (H2, N2, O2, Cl2, Br2, I2, F2)

5
Molecules Polar or Nonpolar

• Just because a molecule possesses polar bonds
  does not mean the molecule as a whole will be
  polar.
• If the dipoles cancel (the dipoles are arranged
  symmetrically), the molecule is nonpolar.
• If the dipoles do not cancel (the dipoles are
  arranged asymmetrically), the molecule is polar.
• By adding the individual bond dipoles, one can
  determine the overall dipole moment for the
  molecule.

6
Review of Polarity
7
Like Dissolves Like

• Nonpolar molecules will dissolve in other
  nonpolar substances due to their similar
  structure.
• Polar molecules will dissolve in other polar
  molecules due to the force of attraction between
  the positive end of one polar molecule and
  negative end of another polar molecule.
• Ionic compounds will also dissolve in polar
  compounds.
• Corn oil does not dissolve in water. Is corn oil
  polar or nonpolar?

8
Molecular Geometries
Chemistry, The Central Science, 10th
edition Theodore L. Brown, H. Eugene LeMay, Jr.,
and Bruce E. Bursten
? 2006, Prentice-Hall, Inc.
9
Molecular Shapes

• The shape of a molecule plays an important role
  in its reactivity.
• By noting the number of bonding and nonbonding
  electron pairs we can easily predict the shape
  and polarity of the molecule.

10
What Determines the Shape of a Molecule?

• Simply put, electron pairs, whether they be
  bonding or nonbonding, repel each other.
• By assuming the electron pairs are placed as far
  as possible from each other, we can predict the
  shape of the molecule.

11
Electron Domains

• We can refer to the electron pairs as electron
  domains.
• In a double or triple bond, all electrons shared
  between those two atoms are on the same side of
  the central atom therefore, they count as one
  electron domain.

• This molecule has four electron domains.

12
Valence Shell Electron Pair Repulsion Theory
(VSEPR)

• The best arrangement of a given number of
  electron domains is the one that minimizes the
  repulsions among them.

13
Electron-Domain Geometries

• These are the electron-domain geometries for two
  through six electron domains around a central
  atom.

14
Electron-Domain Geometries

• All one must do is count the number of electron
  domains in the Lewis structure.
• The geometry will be that which corresponds to
  that number of electron domains.

15
Molecular Geometries

• The electron-domain geometry is often not the
  shape of the molecule, however.
• The molecular geometry is that defined by the
  positions of only the atoms in the molecules, not
  the nonbonding pairs.

16
Molecular Geometries

• Within each electron domain, then, there might
  be more than one molecular geometry.

17
Linear Electron Domain

• In this domain, there is only one molecular
  geometry linear.
• NOTE If there are only two atoms in the
  molecule, the molecule will be linear no matter
  what the electron domain is.

18
Trigonal Planar Electron Domain

• There are two molecular geometries
• Trigonal planar, if all the electron domains are
  bonding
• Bent, if one of the domains is a nonbonding pair.
• Note Boron is an exception to the octet rule
  and tends to form compounds in which boron has
  fewer than eight electrons around it (an
  incomplete octet).

19
Nonbonding Pairs and Bond Angle

• Nonbonding pairs are physically larger than
  bonding pairs.
• Therefore, their repulsions are greater this
  tends to decrease bond angles in a molecule.

20
Tetrahedral Electron Domain

• There are three molecular geometries
• Tetrahedral, if all are bonding pairs
• Trigonal pyramidal if one is a nonbonding pair
• Bent if there are two nonbonding pairs

21
Trigonal Bipyramidal Electron Domain

• There are four distinct molecular geometries in
  this domain
• Trigonal bipyramidal, if all are bonding pairs
• Seesaw if one is a nonbonding pair
• T-shaped if two are nonbonding pairs
• Linear if three are nonbonding pairs

Note The central atoms in this domain are able
to exceed the octet rule. This is only observed
in those atoms in period 3 of the periodic table
and beyond. The presence of an unfilled d
sublevel in these atoms allows for this behavior.
22
Octahedral Electron Domain

• There are three molecular geometries
• Octahedral, if all are bonding pairs
• Square pyramidal if one is a nonbonding pair
• Square planar if two are nonbonding pairs

23
Larger Molecules

• In larger molecules, it makes more sense to talk
  about the geometry about a particular atom rather
  than the geometry of the molecule as a whole.

24
Valence Bond Theory

• There are two ways orbitals can overlap to form
  bonds between atoms.

25
Sigma (?) Bonds

• Sigma bonds are characterized by
• end-to-end overlap.

26
Pi (?) Bonds

• Pi bonds are characterized by
• Side-to-side overlap.

27
Single Bonds

• Single bonds are always ? bonds, because ?
  overlap is greater, resulting in a stronger bond
  and more energy lowering.

28
Multiple Bonds

• In a multiple bond one of the bonds is a ? bond
  and the rest are ? bonds.

29
Multiple Bonds

• In a molecule like formaldehyde (shown at left)
  one orbital on carbon overlaps in ? fashion with
  the corresponding orbital on the oxygen.
• The other orbital overlap in ? fashion.

30
Multiple Bonds

• In triple bonds, as in acetylene, one orbital
  forms a ? bond between the carbons, and two
  orbitals overlap in ? fashion to form the two ?
  bonds.
