Immunization

1

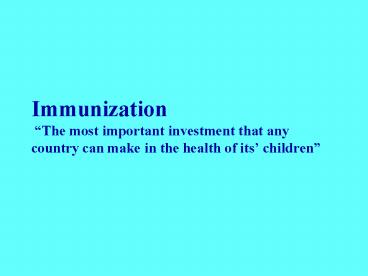

Immunization The most important investment that
any country can make in the health of its
children
2
OBJECTIVES

• 1 Outline the important contribution that
  vaccination can make to World Health.
• 2 Briefly describe the principles and basis of
  immunization.
• 3 Discuss the different types of vaccine, their
  advantages and disadvantages
• 4 Explain common vaccine strategies for children
  and adults including examples of important
  vaccines.

3
Rationale of Immunization

• Objective to produce, without harm to the
  recipient, a degree of resistance sufficient to
  prevent a clinical attack of the natural
  infection and to prevent the spread of infection
  to susceptibles in the community.
• Personal gain and public health benefit
• Degree of resistance may not protect against an
  overwhelming challenge, but exposure may help to
  boost immunity

4
(No Transcript)
5
(No Transcript)
6
(No Transcript)
7
Definitions

• Adjuvant
• Adverse reaction
• Antitoxin
• Immunization
• Active
• Passive

• Immunoglobulin e.g.,
• Human Normal Immunoglobulin HNIG
• Human Specific Immunoglobulin / Hyperimmune
  globulin
• Toxoid
• modified bacterial toxin

8
Definitions

• Vaccine
• a suspension of live attenuated or inactivated
  microorganisms or fractions thereof administered
  to induce immunity and thereby prevent infectious
  disease
• Vaccination
• the term used to refer to the administration of
  any vaccine or toxin

9
Principles of Immunization

• Immunization denotes the process of inducing or
  providing immunity artificially
• Protection from infectious disease
• Usually indicated by the presence of antibody
• Very specific to a single antigen

10
Principles of Immunization

• Antigen
• A live or inactivated substance (e.g., protein,
  polysaccharide) capable of producing an immune
  response
• Antibody
• Protein molecules (immunoglobulin) produced by B
  lymphocytes to help eliminate an antigen

11
Principles of Immunization

• Active
• Protection produced by the person's own immune
  system, usually permanent
• Immunity and immunologic memory produced, similar
  to the natural infection but without the risk of
  disease
• Passive
• Protection transferred from another person or
  animal as antibody
• This will afford temporary protection
• In infancy, transplacental transfer is the most
  important source

12
Sources of Passive Immunity

• Almost all blood or blood products
• Homologous pooled human antibody (immune
  globulin)
• Homologous human hyperimmune globulin
• Heterologous hyperimmune serum (antitoxin)

13
Example Antibody for Prevention of Respiratory
Syncytial Virus infection

• RSV-IGIV
• Human hyperimmune globulin
• Contains other antibodies
• Palivizumab (Synagis)
• Mouse monoclonal
• Contains only RSV antibody

14
Classification of Vaccinesviral or bacterial

• Live attenuated
• single dose e.g., BCG (related org, shared
  antigens)
• two doses if immunity likely to wane over time,
  e.g., rubella, measles
• three doses for a different reason oral polio in
  primary schedule because there are 3 serotypes of
  poliovirus
• Inactivated
• multiple doses a course typically consists of 3
  doses, /- a subsequent booster
• primary response, secondary response

15
Live vaccine

• Attenuated agent (unstable)
• Amplification of response - gradual rise to peak
  response then decline
• Variable but long duration of immunity -the
  immune response produced is similar to that
  produced by the natural infection
• There will be a booster effect with subsequent
  exposure
• There is a possibility of generalised /severe
  infection in an immunocompromised individual
• There may be interference from circulating
  antibody with the take of the vaccine

16
Inactivated Vaccines
Whole

• virus
• bacteria
• protein-based
• subunit
• toxoid
• polysaccharide-based
• pure
• conjugate

17
Inactivated Vaccines

• Cannot replicate
• There will be minimal interference from
  circulating antibody
• In general they are not as effective as live
  vaccines
• Generally require 3-5 doses
• The immune response produced is mostly humoral
• Antibody titer falls over time

18
Examples of live and inactivated vaccines
Live Inactivated

• Viral measles, mumps, rubella, vaccinia,
  varicella, yellow
• fever, oral polio, rotavirus,
• (influenza Flumist, not
  available outside USA at present)
• Bacterial
• BCG (oral typhoid)

• Viral polio, hepatitis A,
• rabies, influenza
• Bacterial (whole cell) pertussis, typhoid,
• (cholera), (plague)

19
Inactivated Vaccines
Fractional vaccines

• Subunit hepatitis B, influenza,
• acellular pertussis,
• (typhoid Vi), (Lyme)
• Toxoid diphtheria, tetanus

20
Polysaccharide VaccinesDerived from bacterial
capsule

• pneumococcal
• meningococcal
• Haemophilus influenzae type b
• (New) Conjugate polysaccharide vaccines
• Haemophilus influenzae type b
• meningococcal
• pneumococcal

21
Pure Polysaccharide Vaccines

• Not consistently immunogenic in children lt2 years
  of age
• No booster response
• Produce antibody with less functional activity
  than that produced by the infection
• Immunogenicity is greatly improved by conjugation

22
Addition of 7-valent pneumococcal vaccine to
routine schedule of immunisations

• Children who attended hopitals in the greater
  Dublin area, 2002-2004
• Incidence of invasive pneumococcal disease
  10.6/100,000 - 2 deaths
• 61.4 lt2 years 76 lt 5 years
• Reduced penicillin susceptibility in 15 - all
  were vaccine serotypes
• Based on serotype data, in paediatric patients
  PCV7 would prevent lt90 of cases of sepsis,
  lt82.5 meningitis, lt59 pneumonia
• A safe and effective vaccine to be added to the
  infant schedule

Fitzsimons JJ, Chong AL, Cafferkey MT, Butler K.
Ir J Med Sci 2008177225-31
23
PCV7 would be cost effective

• Implementing a PCV7 vaccine programme with a
  birth cohort of 61,000, would be expected to
  prevent 7703 cases of pneumococcal infection over
  5 years costs avoided 2.05mi rising to 4.6mi
  allowing for the effect of herd immunity
• Economic evaluation of a universal childhood
  pneumococcal conjugate vaccination strategy in
  Ireland
• Tilson L, Usher C, Butler K, Fitzsimons J, OHare
  F, Cotter S, OFlanagan D, Johnson H, Barry M
• Value Health 2008May 16 Epub ahead of print

24
The need for a vaccine is determined by the
morbidity and mortality from the natural infection

• e.g., Contrast measles, rubella hepatitis B

25
Measles Morbidity Mortality

• Morbidity in 10
• Otitis Media 5
• RTI 4
• Convulsions 0.5
• Other neurological 0.1
• Hospital Admission 1.4
• Very small risk of SSPE
• 1 in 300,000 cases

• Mortality
• Notifications 2,161,542
• Deaths 365
• Mortality Rate per 100,000 notified cases 16.9
• England Wales, 1970 to 1988

26
Rubella Morbidity Mortality

• Morbidity benign illness
• children
• thrombotic thrombocytopenic purpura 1 in 500
• Adults
• acute polyarticular arthropathy women gt men
• chronic arthritis may occasionally develop
• Neurological
• postinfectious encephalopathy and encephalitis 1
  in 4,700 to 1 in 6,000

• Mortality
• due to the neurologic manifestations 20-50 of
  patients with these

Principal morbidity Congenital Rubella Syndrome
27
Hepatitis B Morbidity Mortality

• Morbidity
• Up to 90 of vertically infected infants may
  become chronic carriers
• Between 2-20 of infected adults become chronic
  carriers
• Carriers may develop chronic hepatitis, cirrhosis
  or hepatocellular carcinoma

• Mortality
• approximately 1 of those hospitalised with acute
  HBV infection die
• superinfection with delta agent hepatitis D may
  lead to fulminant liver failure
• HBV infection is a major economic burden worldwide

28
Immunization Protection of

• infants against the important infectious diseases
  of childhood (early)
• adults and children against the infectious
  hazards of travel (timely)
• susceptible or at risk adults and children
• adults against certain infections that may be
  acquired at work

29
HERD IMMUNITY

• When most people in community are immune to a
  particular infection that is spread from person
  to person, the natural transmission of the
  infection is effectively inhibited
• Vaccine uptake rates gt90 (measles 95)
• Not tetanus!

30
Routine immunisation schedule from 1st September
2008
Age Immunisations Comment
birth BCG 1 injection
2 months DTaP/Hib/IPV/HepB PCV 2 injections
4 months DTaP/Hib/IPV/HepB MenC 2 injections
6 months DTaP/Hib/IPV/HepB PCV MenC 3 injections
12 months MMR PCV 2 injections
13 months MenC Hib 2 injections
4 to 5 years DTaP/IPV MMR 2 injections
11 to 14 years Td (Tdap) (BCG) ?girls HPV (0, 1, 6months) 2 injections ?3
31
Recommended changes to routine immunisation
schedule, 2008

• Pneumococcal conjugate vaccine into primary
  schedule (2 1)
• Hepatitis B vaccine into primary schedule (3)
• Hib and MenC boosters in 2nd year of life
• Hib to remain at 3 1
• MenC to be 2 1
• Td booster for 11-14 years change to Tdap
• ?10- 12yrs girls HPV (0, 1, 6 months)

32
Geographical variation

• diphtheria booster for adults
• travellers to an endemic area
• d not D
• IPV versus OPV
• inclusion of Hepatitis B in the routine childhood
  immunization schedule
• Varicella-zoster in routine infant schedule in
  some countries

33
Adult immunizations 1Normal Adults

• Women seronegative for rubella
• rubella
• Previously non-immunised individuals
• tetanus
• Individuals in specific high risk groups
• HBV, HAV, influenza, pneumococcal
• Those travelling abroad
• hepatitis A, typhoid, (polio)

34
Adult Immunizations 2Health Care Workers

• Hepatitis B
• Hepatitis A
• Tuberculosis
• Influenza
• immunise those involved in the long term care of
  the elderly

• Check in some clinical circumstances
• varicella immunity
• rubella antibody
• measles antibody
• polio booster to some
• e.g., laboratory staff performing faecal cultures

35
Immunization

• Interrupted immunization course
• resume as soon as possible it is not necessary
  to repeat the course
• Late primary immunization
• immunise as soon as possible
• DTaP/IPV/Hib, menC and MMR may be given
  simultaneously
• the number of Hib doses depends on the childs age

36
The following reactions to a vaccine are
contraindications to a further dose

• anaphylaxis
• fever gt 40.5oC
• within 48 hours of vaccine administration for
  which no other cause is found
• Any of the following occurring within 72 hours of
  vaccine administration
• prolonged unresponsiveness
• prolonged inconsolable or high-pitched screaming
  for gt 4 hr
• convulsions or encephalophathy

37
Vaccines pregnancy

• Live vaccines should generally not be
  administered in pregnancy because of the
  theoretical possibility of harm to the foetus
• However when there is a significant risk of
  exposure to poliomyelitis (e.g., travel to an
  endemic area) the need for immunization
  outweighs any possible risk to the foetus
• Some inactivated vaccines are/may be administered
  in pregnancy e.g., tetanus toxoid

38
Complications and side-effects

• Virulent infectious material in the vaccine
• allergic reactions
• toxicity ?harmful effects on the foetus
• harmful effects on immunodeficient hosts
• Other effects
• Suggested effects without substantiation
• MMR - link with autism with Crohns Disease

39
Specific examples of immunisation strategies
40
(No Transcript)
41
measles
42
(No Transcript)
43
(No Transcript)
44
rubella
45
(No Transcript)
46
Hepatitis B
47
(No Transcript)
48
(No Transcript)
49
Hepatitis B

• Chronic HBV infection with persistence of HBsAg
  occurs in
• up to 90 of infants infected vertically,
• 30 of children 1 to 5 years old infected after
  birth
• in 5 to 10 of older children, adolescents and
  adults with hepatitis B infection

50
HBV Perinatal Transmission

• Babies of carrier mothers should receive HB
  vaccine /- hepatitis B hyperimmune globulin
  (HBIG)
• Many countries now include routine neonatal HBV
  immunization in the routine schedule

51
(No Transcript)
52
Invasive meningococcal disease
53
Invasive meningococcal disease

• Polysaccharide vaccine in defined populations
• (PS vaccines generally poorly immunogenic in
  infancy)
• Conjugate PS vaccine in some national
  immunisation schedules
• (enhanced immunogenicity in infancy and
  immunologic memory induced)

54
Saudia Arabia pilgrims - Haj

• Very large outbreaks of meningococcal disease in
  pilgrims in 1980s and again in 1990s
• Certification of vaccination is required by the
  authorities since 1988
• Saudi Arabia Ministry of Health issued specific
  requirements in 2000
• Current general recommendation quadrivalent
  ACW135Y

55
Rotavirus vaccines

• Who needs them most?

56
Anticipated developments

• Individuals in specific high risk groups
• varicella zoster vaccine
• children at high risk
• non-immune health care workers
• Q routine schedule or non-immune adolescents
• At risk infants
• specific RSV immunoglobulin
• How do we define who should be protected?

57
(No Transcript)
58

• Human papillomaviruses

Two HPV vaccines are now available these
vaccines have been introduced routinely in some
countries a decision was announced then revoked
in Ireland
59
Cancer of the cervix (mortality/100,000)
lt3.9
lt7.9
lt14.0
lt23.8
lt55.6

• Mortality falling developed world
• Mortality rising in developing world

60
Who should be screened and how often?

• 25 First invitation
• 25-49 Three Yearly
• 49-60 (65) Five Yearly

Dr.Papanicolaou the Pap smear
61
Which Human Papillomaviruses have been included
in the vaccines
6,11,

• Low Risk 6, 11, 40, 42, 43, 44, 54, 61
• Anogenital warts

c. 90 of Genital Warts - US, Europe
16,18,

• High risk 16, 18 45, 31, 33, 52, 58, 35, 59,
  56, 39, 51, 73, 68, 66
• Anogenital neoplasia

c. 70 of Cervical Cancers - US, Europe
62
HPV Vaccine US Recommendations

• Routine vaccination of females 11 or 12 years of
  age
• The vaccination series can be started as young as
  9 years of age at the clinician's discretion
• Vaccination is recommended for females 13-26
  years of age who have not been previously
  vaccinated (Note not Mandatory)
• Ideally vaccine should be administered before
  onset of sexual activity

CDC, June 2006
63
HPV Vaccine and Cervical Cancer Screening

• 30 of cervical cancers are caused by HPV types
  not prevented by the available HPV vaccines
• Vaccinated females could subsequently be infected
  with non-vaccine high-risk HPV types
• Sexually active females could have been infected
  prior to vaccination

Cervical cancer screening recommendations have
NOT changed for females who receive HPV vaccine
CDC, June 2006
64
(No Transcript)
65
Influenza A Viral Structure

• Haemagglutinin (HA) mediates binding of the virus
  to sialic acid receptors on target cells, and
  entry of the viral genome into the target cell,
  acts as an antigen
• Neuraminidase (NA) prevents viral clumping,
  facilitates release of virus from infected cells,
  is a target for antiviral drugs acts as an
  antigen

• 11 genes on 8 pieces of RNA
• 11 proteins haemagglutinin (HA), neuraminidase
  (NA), nucleoprotein (NP), M1, M2,
  NS1,NS2(NEP), PA, PB1, PB1-F2 and PB2.

66
Influenza Viral Structure
There are 15 H and 9 N subtypes known

• HA the human cell and avian cell receptors differ
  biochemically
• It is believed that the HA of avian origin must
  acquire human receptor-binding specificity to
  generate strains capable of human-to-human
  transmission
• Limited passage in humans may be sufficient to
  cause such a change
• Swine nasopharyngeal cells may have receptors for
  both human and avian strain

67
NVRL National Virus Reference Laboratory CUH -
Cork University Hospital UCHG University College
Hospital Galway
68
Pandemic H1N1 vaccines

• All produced by the mock-up approach vaccines
  produced for avian influenza (H5N1), quality
  safety and immunogenicity studies when pandemic
  H1N1 emerged, H1N1 was substituted for H5N1 in
  these vaccines
• 3 now licensed in Europe
• Pandemrix GlaxoSmithKline
• Celvapan Baxter
• Focetria - Novartis
• Different vaccines produced in the USA

69
Pandemic H1N1 2009 vaccines approved in
Ireland

• Pandemrix
• Split virion grown in eggs
• 3.75?g antigen
• Adjuvant (AS03)
• Thiomersal preservative
• 10-dose vial can be used for up to 24 hours
  after opening
• 1 dose sufficient for immunocompetent gt13 years
• 2 doses for the immunocompromised those lt13
  years

• Celvapan
• Whole virus inactivated, grown in vero cells
• 7.5?g antigen
• No adjuvant
• No added thiomersal
• 10-dose vial must be used within 3 hours of
  opening
• 2 doses recommended at present for all recipients

70
Pandemic H1N1 vaccines Concerns 1

• Local reactions
• Systemic reactions
• Thiomersal suggested link with autism and other
  neurodegenerative conditions - not confirmed
• Adjuvant (AS03) has been used in gt22 million
  doses of vaccine worldwide without any safety
  concerns (WHO technical report) not used
  previously in an influenza vaccine

71
Pandemic H1N1 vaccines Concerns 2

• Guillain-Barre Syndrome (GBS)
• The annual incidence of GBS in developed
  countries is c. 1-2 cases per 100,000 population.

• There is evidence of a preceding infection in
  most cases of GBS, most commoly Campylobacter, or
  less commonly, influenza
• In the USA in 1976, use of a swine flu vaccine
  was followed by a statistical association
  suggesting an excess risk of GBS of c.
  9/1,000,000 vaccinees. Studies conducted since
  1976 have not found an excess risk of GBS
  associated with influenza vaccines
• Influenza vaccine contraindicated if history of
  GBS within 6 weeks of previous influenza
  vaccination
• Consider if GBS within past 12 months

72
Rabies

• Highest case fatality ratio
• Fatal encephalomyelitis
• WHO 40,000-70,000 RIP annually
• Transmission lick, scratch, bite, aerosol
• Incubation 9d-2yrs
• Pre exposure Vaccine HDCV (0,7,21or28)
• Post exposure HDCV (0,3,7,14,30)HRIG
• (wound toilet, tetanus and
  antibiotics)

73
Some Future Vaccines

• HIV
• hepatitis C
• cytomegalovirus
• herpes simplex
• EBV
• RSV
• new tuberculosis vaccine

• malaria
• killed VZ vaccine
• Group B strep
• Additional N. meningitidis Group B vaccines
• E. coli 0157
• new cholera vaccine
• Candida albicans
• Aspergillus species

74
Thank you
