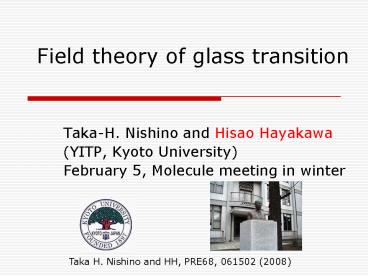

Field theory of glass transition

1
Field theory of glass transition

• Taka-H. Nishino and Hisao Hayakawa
• (YITP, Kyoto University)
• February 5, Molecule meeting in winter

Taka H. Nishino and HH, PRE68, 061502 (2008)
2
Contents

• Introduction What is mode-coupling theory?
• Earlier field theoretic approaches
• Our field theoretic analysis
• Action with TRS
• The derivation of MCT
• Numerical analysis
• Discussion and summary

3
I. Introduction Glassy materials

• traffic jam (congestion) (b) sandcastle
• (c) colloidal glass

4
Relationship between this talk and complex
eigenvalue problems

• The dynamics of glassy materials are in principle
  described by the Liouville equation.
• The conventional theory predicts the ideal glass
  transition but actual processes do not have.
• To escape the glass state we need to have
  imaginary part of eigenvalues.

5
What is Mode-coupling theory?

• MCT can be derived by a reliable basic equation
  (Chongs talk).
• MCT captures many aspects liquid side, but its
  description for glass transitions has some
  defects
• Existence of non-ergodic transition.
• Existence of divergence of viscosity.
• Actual observation may not have such an anomaly.

6
MCT equation and its prediction
Equation for density correlation function
Memory kernel
Vertex function
7
Quick derivation of MCT

• Start from Liouville equation
• Derive Zwanzig-Mori equation
• Use the decoupling equation for the memory kernel

8
Success and failure of MCT
Non-ergodic part of f(k,t)
Ergodic transition a complete freezing in the
low temperature region.
9
Purpose of this work

• To develop a systematic perturbation which can go
  beyond 1st order.
• If this can be done, we may give the theoretical
  basis of EMCT.
• The 1st order perturbation should recover MCT.
• To clarify the validity and the limitation of
  fluctuating hydrodynamics.

10
II. Earlier field theoretic approaches

• Factorization approximation is a totally
  uncontrolled.
• It is extremely hard to improve the theory within
  the projection operator methodgtChongs talk.
• We need a systematic field theoretic treatment on
  this problem.

11
The earlier field theoretic formulation of glass
transition (i)

• Das-Mazenko (1986) renormalized perturbation
  method (RPM) for fluctuating hydrodynamics of the
  density and the momentum.
• Cut-off mechanism (absence of ergodic transition)
• Shimitz, Dufty and De (SDD) (1993) support the
  conclusion of Das-Mazenko based on a simple
  argument.
• Their method does not preserve Galilean
  invariance.
• Kawasaki (1994) indicated equivalency between
  the fluctuating hydrodynamics and Dean-Kawasaki
  equation. gtNo role of momentum.
• Miyazaki and Reichman (2005) simple field
  theoretic perturbations do not preserve FDR in
  order by order.

12
Earlier field theoretic analysis (ii)

• Andreanov, Biroli, and Lefevre (ABL) (2006)
  indicated the importance of the time-reversal
  symmetry (TRS) in the action.
• FDR directly follows from TRS.
• They introduced some auxially fields.
• They developed the perturbation of fluctuating
  hydrodynamics, but the result is far from MCT.
• Kim and Kawasaki (2007,2008) starts from
  Dean-Kawasaki equation and obtain an equation
  similar to MCT.
• The role of momentum is underestimated.

13
III. Our field theoretic analysis

• We start from fluctuating hydrodynamics.

g momentum
14
MSR action
Using an integral representation of the delta
function, we obtain
where
15
Introduction of auxiliary fields

• To satisfy TSR we introduce new variables. The
  action is

These choices ensure the separation between the
linear part and the nonlinear part.
16
Time reversal symmetry
The action is invariant under
We also note
17
Schwinger-Dyson equation

• We calculate the Schwinger-Dyson equation
• where the propagator is defined by
• The structure factor is represented by

18
Self-energies, vertices and

• The self-energy satisfies
• in the first-order approximation, where the
  vertex function is
• Note that free-propagator satisfies

Gaussian part
19
First-order perturbation in the long time limit

• We assume that the propagators including the
  momentum decay faster than the density
  correlation.
• Then we can obtain a closure of the density
  correlation.
• The equation is reduced to the steady MCT in the
  long time limit.

20
MCT from the field theory in the long time limit
static structure factor
21
IV. Can we ignore the momentum correlation?
(Numerical check)

• Time evolution is not clear.
• The momentum correlation decays much faster than
  the density correlation.
• A numerical calculation of fluctuating
  hydrodynamics Lust etal, PRE(1993)
• However, from the strong non-linearity and memory
  effect, the momentum correlation might cause the
  ergodic-restoring.

We need to verify its effect by numerical
calculation.
22
Time evolution equation of the density correlation
(derived from fluctuating hydrodynamics by field
theory)
Memory function
2 Time scale

• Memory function Mi (1st loop)
• Model1 We ignore all correlations which include
  momentum (same as MCT).
• Model 2 We include all terms except for the
  assumption that the transverse mode can be
  separated from other modes.

We calculate these types.
23
Outline of numerical method

• Mono-atomic hard sphere model
• We employ the algorithm by Fuchs et al. (J.
  Phys. Condens. Matter 1991)
• Each time step length is twice after some steps.
• Static structure factor gt Verlet-Weis.
• Momentum correlation
• We assume that the longitudinal mode can be
  represented by the density correlation.
• We also assume that the transverse mode is
  irrelevant.

24
Results of numerical calculation

• There is no momentum contribution.
• There exists the ideal glass transition.

25
V. Discussion (1) Comparison with other works

• We followed ABL, but ABL derived several
  unexpected? results.
• Choice of the auxiliary fields is crucial.
• We also use the similar argument by SDD.
• The violation of Galilean invariance by SDD is
  crucial.
• We have obtained the essentially same result as
  that by Kim and Kawasaki
• This is because we ignored the contribution from
  momentum correlations. gtWe have checked that the
  momentum correlations are irrelevant.
• Ours is essentially reformulation of Kawasaki
  (1994)

26
Discussion (2)

• Das-Mazenko suggested the existence of cut-off
  mechanism but our conclusion within the
  first-order perturbation is the absence of the
  cutoff.
• Their calculation does not satisfy FDR in each
  order.
• They introduced Vg/?as another collective
  variable.
• Their calculation captures some aspects of
  non-perturbative calculation, but we cannot
  understand the details of their paper.

27
Discussion (3)
From the precise evaluation at the first order,
we obtain the formal result
This is the cutoff mechanism that Das-Mazenko
introduced.
28
Discussion (4)

• M_2 is not zero when the mass conservation
  exists.
• Indeed Das-Mazenko cannot evaluate underline
  nonlinear term

This can be rewritten as in our notation.
But, our method exactly satisfies the relation.
29
Discussion (5) Perspective

• The second-order perturbation
• The naïve calculation leads to divergence of
  diagrams.gttough work
• We still miss something to recover ergodicity at
  the low temperature.
• Is ergodic restoring process similar to Landau
  damping?gt A simple argument only predicts an
  exponential decay of the autocorrelation
  function.
• How can we derive EMCT?

30
Summary

• We have developed a FDR-preserving field
  theoretical calculation for the glass-transition.
• The equation for the density correlation in the
  first-loop order is reduced to MCT in the
  long-time limit.
• We get a tool beyond MCT in the next step, but .
• Reference (PRE68, 061502 (2008) )

31

• Thank you for your attention.

32
Appendix

• Free energy consists of two part FFKFU.
• The model is analyzed by MSR method

33
Coarse-grained free energy
Entropy term
Direct correlation function
34
MSR action
Using an integral representation of the delta
function, we obtain
where
35
Supplement
In the previous slide we have used
These new fields do not include any linear terms.
36
First-order perturbation in the long time limit

• We assume that the propagators including the
  momentum decay faster than the density
  correlation.
• Then we can obtain a closure of the density
  correlation.
• The time evolution equation is the second order as

37
The right-hand side
In the first-loop order we can estimate the
right-hand side of the previous equation as
