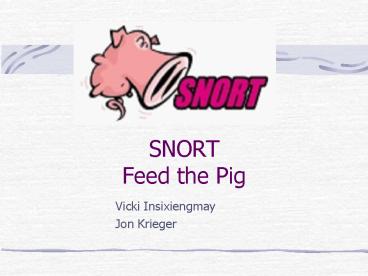

SNORT Feed the Pig

1
SNORTFeed the Pig

• Vicki Insixiengmay
• Jon Krieger

2
What is SNORT?

• A so-called Intrusion Detection System (IDS)
• Analyzes IP-Network traffic online and records
  packets
• Reduces the risk of intrusion

3
What is SNORT?

• Five major components
• Packet capturing mechanism
• Snort relies on an external packet capturing
  library (libpcap) to sniff packets
• Packets are passed into the packet decoder.
• Translates specific protocol elements into an
  internal data structure.
• After the decode is completed, traffic is handled
  by the preprocessors. Any number of pluggable
  preprocessors either examine or manipulate
  packets before handing them to the next
  component the detection engine.

4
What is SNORT?

• The detection engine performs simple tests on a
  single aspect of each packet to detect
  intrusions.
• The last component is the output plugins
• Generates alerts to present suspicious activity

5
Snort Component Dataflow
6
What does Snort do?

• Snort uses a flexible rules language to describe
  traffic that it should collect or pass, including
  a detection engine that utilizes a modular plugin
  architecture.
• Snort has a real- time alerting capability.
  Alerts mechanisms for syslog, user specified
  files, a UNIX socket, or WinPopup messages to
  Windows clients using Samba's smbclient.

7
Packet Decoder

• First internal component of Snort that a sniffed
  packet encounters.
• Purpose
• To strip off the various headers. It works by
  decoding up the TCP/IP stack, and placing the
  packet in a data structure. Packets are then
  routed to the preprocessors.

8
Preprocessors

• Perform two fundamental functions
• Manipulate packets so the detection engine can
  properly analyze them OR
• Examine traffic for suspicious use that cannot be
  discovered by signature detection alone.
• After traffic is run through the preprocessors,
  it is sent on to the detection engine.

9
Detection Engine

• Responsible for the actual signature detection.
  Snort rules are loaded into the detection engine
  and are categorized in a tree-like data
  structure, which minimizes the number of tests
  the detection engine has to perform to discover
  malicious activity.
• Snort writes intrusion data to any number of
  output plugins.

10
Output Plugins

• The means Snort has to get data from the
  detection engine to user. Snort can be configured
  with multiple output plugins to better facilitate
  intrusion data management. Output plugins can
  range from simple comma-delimited output to
  complex relational database output.

11
Primary Uses

• Snort has three primary uses
• Sniffer Mode
• Reads packets off of the network and displays
  them in continuous stream on the screen
• ./snort -v
• Packet Logger Mode
• Records/logs packets to disk.
• ./snort dev l ./log

12
Primary Uses

• Network Intrusion Detection System (NIDS) mode
• Analyzes network traffic for matches against
  user-defined rule set and performs actions based
  on what is shown
• ./snort dev l ./log h 134.198.161.101/23 c
  snort.conf

13
Rules

• Rule Header
• Action, Protocol, IP Addresses and Ports
• Rule Option
• Alert Messages and Items to Look for
• alert tcp any any -gt 192.168.1.0/24 111
  (content"00 01 86 a5" msg"mountd access")

14
References

• http//www.informit.com/articles/article.asp?p101
  148
• http//www.snort.org
