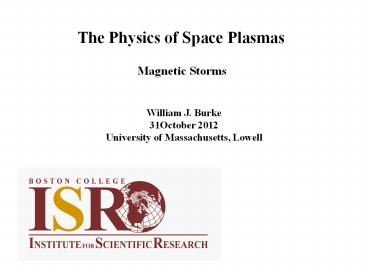

The Physics of Space Plasmas
Magnetic Storms

• William J. Burke31October 2012 University of
  Massachusetts, Lowell

2
Magnetic Storms
Lecture 7

• Historical background
• - Dessler-Parker-Sckopke - Burton-Russell-McPh
  erron relationships
• Electric fields in the inner magnetosphere
  penetration, shielding and over-shielding.
• - Single particle approach the Volland-Stern
  model
• - Fluid/multi-fluid approach The Rice
  Convection model
• Two crises (1) too much shielding (June 1991
  storm), and (2) electric field saturation
  (Bastille Day Storm)
• - Tsyganenko Magnetic inflation and
  contributors to Dst
• Siscoe-Hill and revised Volland-Stern models
• Love and Gannon Dst movies
• Transmission line analogy

3
Magnetic Storms

• Magnetic Storms a brief history
• Alexander von Humboldt coined the term
  magnetic storm after watching aurorae and
  magnetic deflection over Berlin in Dec.21, 1806.
• Richard Carrington witnesses white light
  flare August 28, 1859 followed by magnetic
  storm on the next day aurorae over Havana.
• Kristin Birkeland After 1902-1903 campaign
  distinguished between polar elementary storms
  (substorms) and equatorial perturbations.
• Sydney Chapman phases of magnetic storms
• Alex Dessler Gene Parker (1959) ERC ? ?H
  at the Earths surface.
• Masahisa Sugiura Dst stations and hourly
  index to calibrate storms
• Burton et al. (1975) Predict Dst from solar
  wind/IMF

4
Magnetic Storms
5
Magnetic Storms
6
Magnetic Storms
7
Magnetic Storms
The Volland-Stern single-particle model At
the stagnation point LS the potential is
Since the last closed equipotential touches
LS gt calculate locus of this potential

• LA(f) gives shape of zero-energy Alfvén
  boundary (ZEAB)
• Still dont know what g means
• or how to relate EM to the
• interplanetary medium.

8
Magnetic Storms
9
Magnetic Storms
Rice Convection Model (Harel et al., JGR 1981)
Vasyliunas (1969, 1970)
10
Magnetic Storms
Main Phase Electric fields and particles measured
by CRRES
11
Magnetic Storms
12
Magnetic Storms
Electric field and particle boundaries sampled by
DMSP F8 and CRRES
13
Magnetic Storms
Magnetosphere simulation at 2200 UT on 6 April
2000
Tsyganenko, N. A., H. J. Singer, and J. C.
Kasper, Storm-time distortion of the inner
magnetosphere How severe can it get? J.
Geophys. Res., 108 (A5), 1209, 2003.
14
Magnetic Storms
Magnetosphere simulation at 0800 UT on 31 March
2001
15
Magnetic Storms
16
Magnetic Storms
Model validation with F13 F15
17
Magnetic Storms
18
Magnetic Storms


Love, J. J., and J. L. Gannon (2010), Movie-maps
of low-latitude magnetic storm disturbance, Space
Weather, 8, S06001, doi10.1029/2009SW000518.
19
Magnetic Storms
November 2003 storm
20
Magnetic Storms
21
Magnetic Storms
22
Magnetic Storms
23
Magnetic Storms

• Electric field Scaling
• Kelley et al. (2003), Penetration of the solar
  wind electric field into the
  magnetosphere/ionosphere system, GRL., 30(4),
  1158. compared electric measured with the
  Jicamarca ISR fields with the Y component of IEF
  (VBZ).
• Found the electric field in the equatorial
  ionosphere is one 15th of the electric
  field in the solar wind
• It seemed useful to compare eVS with IEFY

24
Magnetic Storms
25
Magnetic Storms
Huang, C. Y. and W. J. Burke (2004) Transient
sheets of field aligned currents observed by
DMSP during the main phase of a magnetic
superstorm, JGR, 109,A06303.
26
Magnetic Storms
27
