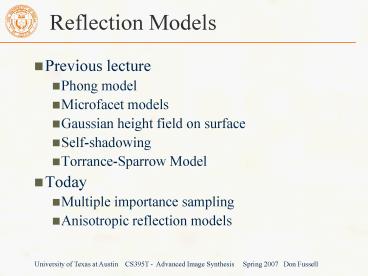

Title: Reflection Models


1
Reflection Models
  • Previous lecture
  • Phong model
  • Microfacet models
  • Gaussian height field on surface
  • Self-shadowing
  • Torrance-Sparrow Model
  • Today
  • Multiple importance sampling
  • Anisotropic reflection models

2
Multiple Importance Sampling
3
Multiple Importance Sampling
Reflection of a circular light source by a rough
surface
Radius
Shininess
Sampling the light source
Sampling the BRDF
4
Multiple Importance Sampling
  • Two sampling techniques
  • Form weighted combination of samples
  • The balance heuristic

5
Multiple Importance Sampling
Source Veach and Guibas
6
Anisotropic Reflection Model
7
Anisotropic Reflection
8
Anisotropic Reflection
9
Quarterhorse
10
Reflection from a Cylinder
11
Reflection from a Cylinder
12
Reflection from a Cylinder
13
Reflection from a Cylinder
14
Reflection from a Cylinder
15
Shape of Anisotropic Highlights
Fibers tangent to the plane defined by the
halfway vector reflect light
From Lu, Koenderink, Kappers
16
Shape of Anisotropic Highlights
From Lu, Koenderink, Kappers
17
Kajiya-Kay Model
  • Diffuse
  • Specular

18
Herbert
19
Fiber Model
20
Fiber Model
21
Fiber Model
22
Caustics
23
Hair Appearance
24
Hair Appearance
25
(No Transcript)
26
(No Transcript)
27
(No Transcript)
