Davide Forcellini, Univ. of San Marino

1

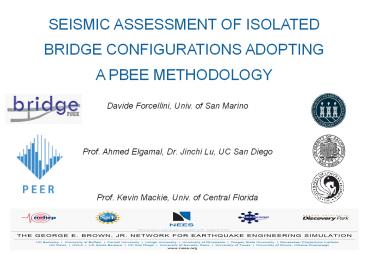

SEISMIC ASSESSMENT OF ISOLATED BRIDGE
CONFIGURATIONS ADOPTING A PBEE METHODOLOGY
Davide Forcellini, Univ. of San Marino Prof.
Ahmed Elgamal, Dr. Jinchi Lu, UC San
Diego Prof. Kevin Mackie, Univ. of Central
Florida
2
BRIDGE PBEE
Dr. Jinchi Lu, Prof. Kevin R. Mackie, Prof. Ahmed
Elgamal http//peer.berkeley.edu/bridgepbee/
3
CASE STUDY
4
CONFIGURATIONS
Assumptions 1. Isolators represented by ELASTIC
SPRING ELEMENTS 2. FULL 3D MODEL WITH
LONGITUDINAL SHAKING ONLY
2 HPs 1. ELASTIC SPRING ELEMENTS 2.
LONGITUDINAL BEHAVIOUR ONLY
5
SOIL DEFORMABILITY
2 HPs 1. ELASTIC SPRING ELEMENTS 2.
LONGITUDINAL BEHAVIOUR ONLY
6
METHODOLOGY

• Specification of Ground Motion Input
• Bridge-Ground Finite Element Model
• Performance-Based Earthquake Engineering
  Quantities

7
STEP 1 INPUT GROUND MOTION
PEER NGA database http//peer.berkeley.edu/nga/
5 bins of 20 motions Mw 6.5-7.2 R 15-30 km
Mw 6.5-7.2 R 30-60 km Mw 5.8-6.5 R 15-30
km Mw 5.8-6.5 R 30-60 km Mw 5.8-7.2 R
0-15 km
8
STEP 2 F.E. MODEL
DECK FORCE-BASED ELEMENTS
ABUTMENT ELASTIC ELEMENTS
FIBER SECTIONS
SOIL 9-NODE BRICK ELEMENTS
9
STEP 3 PERFORMANCE GROUPS (PGs)
TOTAL REPAIR COST RATIO () TOTAL REPAIR TIME
(CWD)
10
PILOT INVESTIGATION

• BASE ISOLATION TECHNIQUE ASSESSMENT
• SOIL DEFORMABILITY RESPONSE

11
PBEE RESULTS(MODEL COMPARISON)
2 HPs 1. ELASTIC SPRING ELEMENTS 2.
LONGITUDINAL BEHAVIOUR ONLY
12
MODEL 1 SIMPLE ROLLER ISOLATOR
Max Long. Drift Ratio (Column) - PG1
Max Long. Relative Deck End Abutment
Displacement PG3
13
influence of SOIL STRENGHT (JEN MOTION)
14
MODEL 1 influence of SOIL STRENGHT
Deformation for JEN motion at t10.15 sec SCALE
200
STIFF SOIL
SOFT SOIL
15
MODEL 1 SIMPLE ROLLER ISOLATOR
Total Repair Cost Ratio ()
Total Repair Time (Crew Working Days, CWD)
16
MODEL 2 ABUTMENT ISOLATION
Max Long. Drift Ratio (Column) - PG1
Max Long. Relative Deck End Abutment
Displacement PG3
17
MODEL 2 ABUTMENT ISOLATION
Total Repair Cost Ratio ()
Total Repair Time (Crew Working Days, CWD)
18
MODEL 3 COLUMN ISOLATION
Max Long. Drift Ratio (Column) - PG1
Max Long. Relative Deck End Abutment
Displacement PG3
19
MODEL 3 COLUMN ISOLATION
Total Repair Cost Ratio ()
Total Repair Time (Crew Working Days, CWD)
20
MODEL 4 FULL ISOLATION
Max Long. Drift Ratio (Column) - PG1
Max Long. Relative Deck End Abutment
Displacement PG3
21
MODEL 4 FULL ISOLATION
Total Repair Cost Ratio ()
Total Repair Time (Crew Working Days, CWD)
22
PBEE RESULTS(SOIL COMPARISON)
2 HPs 1. ELASTIC SPRING ELEMENTS 2.
LONGITUDINAL BEHAVIOUR ONLY
23
STIFF CLAY
Max Long. Drift Ratio (Column) - PG1
Max Long. Relative Deck End Abutment
Displacement PG3
24
STIFF CLAY
Total Repair Cost Ratio ()
Total Repair Time (Crew Working Days, CWD)
25
STIFF CLAY
Deformation for JEN motion at t10.15 sec SCALE
200
MODEL 2 Abutment isolation
MODEL 4 Full isolation
26
MEDIUM CLAY
Max Long. Drift Ratio (Column) - PG1
Max Long. Relative Deck End Abutment
Displacement PG3
27
MEDIUM CLAY
Total Repair Cost Ratio ()
Total Repair Time (Crew Working Days, CWD)
28
SOFT CLAY
Max Long. Drift Ratio (Column) - PG1
Max Long. Relative Deck End Abutment
Displacement PG3
29
SOFT CLAY
Total Repair Cost Ratio ()
Total Repair Time (Crew Working Days, CWD)
30
CONCLUSIONS

• GROUND ISOLATION IS A KEY PARAMETER
• THAT MAY SIGNIFICANTLY AFFECT SSI RESPONSE
• BENEFIT OF THE ISOLATION TECHNIQUE
• SAVE THE COLUMN, POSSIBLY AT THE ABUTMENTS
  EXPENSE
• ROLE OF DEEP FOUNDATIONS UNDER THE ABUTMENT
• PREVENTING SETTLEMENTS (REDUCING REPAIR COSTS)
• TRANSVERSAL EFFECTS

31
FURTHER APPLICATIONS

• TRANSVERSAL EFFECTS ASSESSMENT
• IMPLEMENTATION OF NON LINEAR MODELS FOR
  ISOLATORS

32
THANK YOU FOR YOUR ATTENTION!
