Title: Maxillo-Mandibular Relationships


1

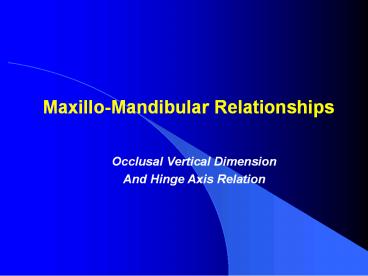

Maxillo-Mandibular Relationships
  • Occlusal Vertical Dimension
  • And Hinge Axis Relation

2
Occlusal Vertical Dimension
  • Amount of separation between mandible maxilla
    when denture teeth contact

3
Hinge Axis Location
  • Use earbow to record relationship of maxilla to
    transverse horizontal axis
  • Locate anterior reference point

4
Centric Position
  • Relationship of maxilla mandible
  • Anterior/posterior medio-lateral)
  • Maximum intercuspation of denture teeth

5
Programming the ArticulatorProtrusive
Relationship
  • Simulate relationship of maxilla to mandible in
    excursions
  • Denture teeth set in harmonious relationship for
    function

6
Record Bases (Baseplates) and Occlusion Rims
  • Used to relate casts on an articulator
  • Record bases simulate the finished denture base

7
Record Bases and Occlusion Rims
  • Wax occlusion rims simulate the position of the
    teeth

8
Occlusion Rim Dimensions
  • Occlusion rims slightly bulkier
  • Provide additional stability during record making

9
Record Base Retention
  • Required for record making phonetic tests
  • Inaccurate if loose
  • Use denture adhesive if slightly loose
  • Pronounced looseness - REMAKE

10
Record Base Retention
  • Causes of Poor Retention
  • Poor adaptation of resin to cast
  • Over- or under-extension
  • Excessive block-out

11
Occlusal Vertical Dimension
  • Video

12
Arbitrary Adjustment of Occlusion Rims
  • Adjust separately using average dimensions
  • Maxillary - 23 mm
  • Mandibular - 18 mm
  • Starting Point
  • Fairly rapid adjustment
  • 15 minutes per arch

13
Use a Hot Scapel Blade
14
Use Hot Wax Former or Metal Spatula
15
Maxillary Occlusion Rim Adjustment
  • Maxillary rim slightly facial to compensate for
    ridge resorption

16
Maxillary Occlusion Rim Adjustment
  • Anterior height 1-2 mm below the lip at rest/when
    the patient slightly smiles

17
Wax rim/tooth display can be adjusted with sex,
age, and lip length (Vig JPD 1978).
Lip Length
Incisal Display
10-20mm 3-4mm
20-25mm 2mm
26-30mm 1mm
gt30mm 0
Sex Age Female Male Youn
g 2 1 Middle 1 0 Old 0 -1
18
Position of Maxillary Incisal Edge
  • Edge of rim touches wet line of lower lip when
    F or V sounds
  • Count 50-60

19
Lip Support
  • Lips should be unstrained
  • Naso-labial angle 90
  • Philtrum depressed
  • Vermilion border showing

20
Occlusion Rim Angulation
  • Occlusal plane parallel to the ala-tragus line

21
Occlusion Rim Occlusal Plane
  • Mediolaterally, parallels the pupils
  • Fox plane can be used

22
Fox Plane
  • Helps orient occlusal plane

23
Centered Occlusion Rim
  • Centered over ridge to maximize stability

24
Posterior Occlusion Rim Height
  • Posteriorly, the occlusion rim intersects 1/2 -
    2/3 up the retromolar pad

25
Mandibular Rim Height
  • Anterior height even with the corners of mouth
    when lip is relaxed

26
Facial Occlusion Rim Relations
  • 1-2 mm horizontal overlap in anterior posterior
    in centric position

27
Proper Lip Support
  • Unstrained lips
  • Vermilion border showing

28
Occlusal Vertical Dimension (OVD)
  • Distance between maxilla mandible when teeth or
    wax rims contact in centric position

29
Physiologic Rest Position (PRP)
  • At rest, lips barely touching
  • Occlusion rims should not touch

Intraorally no contact
30
Interocclusal Distance (ID)
  • Space between wax rims at physiologic rest
    position
  • Usually 2-4 mm

31
Establishing Occlusal Vertical Dimension
  • PRP ID OVD

32
Establishing Occlusal Vertical Dimension
  • 1. Measure difference between PRP OVD
  • 2. Feel to ensure movement of mandible
  • 3. Phonetics tests Closest Speaking Space
  • Patient sitting bolt upright

33
Establishing Occlusal Vertical Dimension
  • Check with three techniques to ensure acceptable
    OVD
  • No one technique 100 correct

34
Patient Sits Bolt Upright Soft tissue position
affected by posture
35
Measurements OVD PRP
  • Use external points for ease of measurement
  • Small dots under columnella mid-symphisis
  • Use Boley Gauge, not ruler

36
Measuring Occlusal Vertical Dimension
  • Measure the distance between dots
  • At PRP
  • At OVD
  • Difference is ID
  • Measurements change each day (position of dots)

37
Measuring Physiologic Rest Postion
  • Open and close until lips barely touch -
    Physiologic Rest Position (PRP)
  • Measure distance between dots

38
Measuring Occlusal Vertical Dimension
  • Open and close until rims touch
  • Measure distance between dots (OVD)
  • Measurement will be different each appointment

39
Establishing OVD Feel for Interocclusal Distance
  • Close until lips barely touch - PRP
  • Place finger on chin
  • Look away
  • Patient closes until rims touch (OVD)
  • Feel for movement of the mandible

40
Establishing OVDPhonetics Test
  • Closest Speaking Space
  • Confirms OVD
  • Sibilant sounds ("s", "z", sh", ch")
  • Rims should be at least 1 mm apart
  • Dont worry about sounds yet

41
Excessive OVDWax Rims Too High
  • Insufficient interocclusal distance
  • Remove wax from one or both of the rims
  • Use large wax formers
  • 5 7 wax spatulas
  • Red-handled knife
  • Bunsen burner and torch

42
Wax Rim Adjustment at OVD
  • Flat even contact along entire occlusal surface
  • EXTREMELY CRITICAL
  • If uneven contact, patient may be forced into
    eccentric position

43
Adjusting Wax Rim Height
  • Scribe lines parallel to opposing occlusal rim
  • Use as a guides during reduction

44
Eliminating Record Base or Wax Rim Interferences
  • Patient in Centric Position
  • Scribe three widely separated lines between
    maxillary mandibular rims

45
Establishing OVD
  • Remove, superimpose lines
  • Eliminate contacts between record bases, record
    base/occlusion rims/casts
  • Only contact should be rim to rim

46
Adjusting Occlusion Rims
  • Continue to adjust the rims until
  • interocclusal distance is 2-4 mm
  • even contact along rims in centric position.

47
Excessive Occlusal Vertical Dimension
  • Sore muscles
  • Soft tissue sore spots
  • Rapid bone resorption
  • Dentures click during speech

48
Inadequate Occlusal Vertical Dimension
  • Collapsed Appearance - chin too close to the nose
    or protruding jaw
  • Fatigue when chewing
  • Sore muscles or joints

49
Hinge Axis Location
  • Face-bow or ear-bow used
  • Record relationship of maxilla to transverse
    horizontal hinge axis of mandible

50
Hinge Axis
  • Transferred to the articulator
  • Important to prevent occlusal errors,
    particularly when cusped teeth are used in
    dentures.

51
Facebow (Earbow) TransferMount Maxillary Cast
  • 2 Video Clips

52
Attach cast with mounting plaster in two steps
