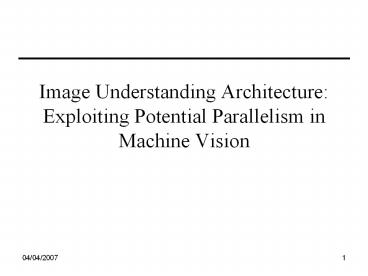

Image Understanding Architecture Exploiting
Potential Parallelism in Machine Vision
2
Overview

• Heterogeneous parallel processor
• Three distinct layers
• Meet the real-time computational requirements of
  computer vision systems
• Exploit the various forms of parallelism within a
  computer vision algorithm suite
• Data parallelism
• Control parallelism
• Collaborative effort
• University of Massachusetts, Amhurst (UMASS)
• Hughes Research Laboratory
• Circa 1980s
• Part of the DARPA image understanding research
  initiative

3
Background

• What is computer vision?
• Process images (or streams of images) with the
  intent of
• Object recognition
• Vehicle guidance
• Manufacturing
• etc.
• Create a system that extracts information (not
  just data) from a picture

4
An Image(as we see it)
5
Mechanization of Processing
6
An Image(as the computer sees it)
238 237 234 227 223 216
229 227 224 220 225 221
205 212 221 220 225 220
177 192 213 207 212 217
164 180 211 208 209 215
190 194 220 212 210 219
177 167 153 141 145 126
144 153 160 172 173 158
116 138 138 140 152 151
65 96 131 140 148 145
71 98 147 127 120 131
99 105 144 116 117 123
156 145 137 146 163 151
150 173 171 177 174 171
104 132 133 142 164 165
86 116 164 162 155 152
95 121 150 137 123 136
123 128 141 129 126 129
7
What gets processed?

• Gradients (edges)
• Color
• Transformations
• Rotation
• Translation
• Stretching
• Texture
• Shading
• Shape
• Context

All of these are based on searching for patterns
in the image colors
8
How should a computer process visual scenes?

• As it turns out, mimicking a biological system in
  circuits and software is extremely difficult
• Cameras are not as sophisticated as the eye
• Processors/software are not as sophisticated as
  the brain

9
How should a computer process visual scenes?

• Preprocessing
• Image conditioning (number crunching)
• Low Level Vision
• Feature extraction (number crunching)
• Mid Level Vision
• Feature description (symbolic processing)
• High Level Vision
• Object recognition (advanced data structures)

10
Three distinct levels

• Data intensive
• Preprocessing
• Low Level Vision
• Semi-data intensive, semi-control intensive
• Mid Level Vision
• Control intensive
• High Level Vision

11
How do we process visual scenes?

• Preprocessing
• Image conditioning
• Low Level Vision
• Feature extraction
• Mid Level Vision
• Feature description
• High Level Vision
• Object recognition

12
Basic Philosophy

• Create a computer comprised of three
  architectures, each suited to one of the levels
  of a computer vision application
• Heterogeneous architecture
• Multiple types of processing elements
• Multiple interconnect topologies
• Multiple programming languages

13
The Architecture
14
The Architecture

• Content Addressable Array Parallel Processor
  (CAAPP)
• SIMD
• Configurable into separate groups
• Intermediate Communication Associative Processor
  (ICAP)
• MIMD
• SPMD (Single Program Multiple Data)
• All PEs have the same program but each has its
  own program counter (Asynchronous SIMD)
• Symbolic Processing Array (SPA)
• MIMD

15
CAAPP

• Bit-serial processors
• ALU
• 320 bits of cache
• 32KBits of main memory
• Instructions come from above
• Array Control Unit (ACU)
• Communication
• Configurable mesh coterie network
• A coterie is a group of PEs that work
  somewhat independently (still only 1
  instruction stream)

16
ICAP

• Digital Signal Processor (DSP)
• Specialty architecture for performing numerical
  transforms
• 320 bits of cache
• 256KBytes of main memory (128K program, 128K
  data)
• Communication
• Cross-bar switch

17
SPA

• Not fully specified
• Commercially available multi-processor
• Networked workstations

18
CAAPP to ICAP Communication

• One ICAP PE is responsible for (communicates
  with) 64 CAAPP PEs (8 x 8 mesh)
• Communication is via a dual-port shared memory

19
ICAP to SPA Communication

• One SPA PE is responsible for (communicates with)
  64 ICAP PEs (8 x 8 mesh)
• Communication is via a dual-port shared memory

20
Full System Specification

• 64 SPA PEs
• MIMD
• RISC processing architecture
• 4K ICAP PEs (64 x 64)
• MIMD/SPMD
• Digital Signal Processor (DSP)
• 256K CAAPP PEs (512 x 512)
• SIMD
• 1-bit processing architecture

21
1st Generation

• Proof of concept
• 4096 CAAPP processors (64 x 64)
• 64 ICAP processors
• 1 SPA processor

22
2nd Generation

• 1/16th of a full scale system
• 16K CAAPP processors
• 64 ICAP processors
• Commercial chips TI TMS320C40 32-bit processor
• Communication is token-ring over 2 x 2 meshes
  plus inter-processor DMA channels
• 4 SPA processors
• Networked workstations

23
2nd Generation
24
Programming

• Required writing separate code for each level
• In the beginning there were 3 different
  programming languages involved
• Forth, C, Assembly
• Plan was to move to C/C/Lisp with parallel
  extensions (class libraries)
• Ada was planned
• Goal was to develop a single language compiler
  for the entire system

25
Interesting Bits

• This group actually started from the problem
  specification and set out to build an
  architecture to support it
• Contrary to other parallel processor developments
  of the time
• Programming proved very difficult
• Require intimate knowledge of architecture
  (especially the coterie network) and algorithms
• A simulator of the full system existed for
  program development, research

26
End Notes

• Emphasis was on
• Proof of concept
• Mapping algorithms to the architecture
• Fabricating chips
• Cancelled 1995
• Various chips/board fabricated and tested
• Various software components developed and tested
