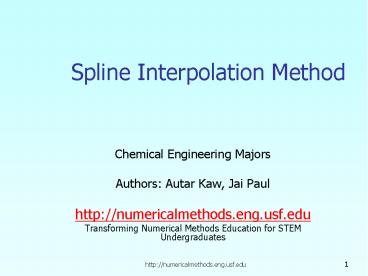

Spline Interpolation Method

1
Spline Interpolation Method

• Chemical Engineering Majors
• Authors Autar Kaw, Jai Paul
• http//numericalmethods.eng.usf.edu
• Transforming Numerical Methods Education for STEM
  Undergraduates

2
Spline Method of Interpolation
http//numericalmethods.eng.usf.edu
3
What is Interpolation ?

Given (x0,y0), (x1,y1), (xn,yn), find the
value of y at a value of x that is not given.
4
Interpolants

• Polynomials are the most common choice of
  interpolants because they are easy to
• Evaluate
• Differentiate, and
• Integrate.

5
Why Splines ?
6
Why Splines ?
Figure Higher order polynomial interpolation is
a bad idea
7
Linear Interpolation
8
Linear Interpolation (contd)
9
Example
To find how much heat is required to bring a
kettle of water to its boiling point, you are
asked to calculate the specific heat of water at
61C. The specific heat of water is given as a
function of time in Table 1. Use linear spline
interpolation to determine the value of the
specific heat at T 61C.
Table 1 Specific heat of water as a function of
temperature.
Temperature, Specific heat,
22 42 52 82 100 4181 4179 4186 4199 4217
Figure 2 Specific heat of water vs.
temperature.
10
Linear Interpolation




11
Quadratic Interpolation
12
Quadratic Interpolation (contd)
13
Quadratic Splines (contd)
14
Quadratic Splines (contd)
15
Quadratic Splines (contd)
16
Example
To find how much heat is required to bring a
kettle of water to its boiling point, you are
asked to calculate the specific heat of water at
61C. The specific heat of water is given as a
function of time in Table 1. Use quadratic spline
interpolation to determine the value of the
specific heat at T 61C.
Table 1 Specific heat of water as a function of
temperature.
Temperature, Specific heat,
22 42 52 82 100 4181 4179 4186 4199 4217
Figure 2 Specific heat of water vs.
temperature.
17
Solution




18
Solution (contd)
19
Solution (contd)
20
Solution (contd)
21
Solution (contd)
22
Solution (contd)
23
Better Estimate
24
Better Estimate
25
Better Estimate
26
Additional Resources

• For all resources on this topic such as digital
  audiovisual lectures, primers, textbook chapters,
  multiple-choice tests, worksheets in MATLAB,
  MATHEMATICA, MathCad and MAPLE, blogs, related
  physical problems, please visit
• http//numericalmethods.eng.usf.edu/topics/spline
  _method.html

27

• THE END
• http//numericalmethods.eng.usf.edu
