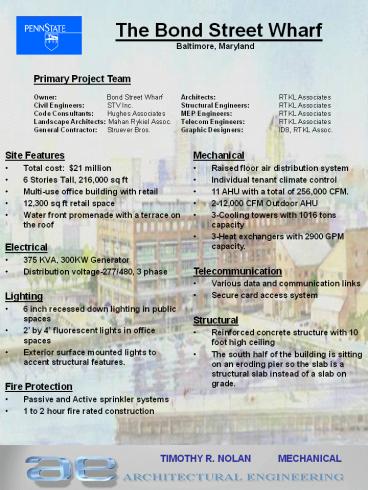

The Bond Street Wharf Baltimore, Maryland

1
The Bond Street Wharf
Baltimore, Maryland
Primary Project TeamOwner Bond
Street Wharf Architects RTKL Associates
Civil Engineers STV Inc. Structural
Engineers RTKL Associates Code Consultants
Hughes Associates MEP Engineers RTKL
Associates Landscape Architects Mahan Rykiel
Assoc. Telecom Engineers RTKL Associates
General Contractor Struever Bros. Graphic
Designers ID8, RTKL Assoc.

• Site Features
• Total cost 21 million
• 6 Stories Tall, 216,000 sq ft
• Multi-use office building with retail
• 12,300 sq ft retail space
• Water front promenade with a terrace on the roof
• Electrical
• 375 KVA, 300KW Generator
• Distribution voltage-277/480, 3 phase
• Lighting
• 6 inch recessed down lighting in public spaces
• 2 by 4 fluorescent lights in office spaces
• Exterior surface mounted lights to accent
  structural features.
• Fire Protection
• Passive and Active sprinkler systems
• 1 to 2 hour fire rated construction

• Mechanical
• Raised floor air distribution system
• Individual tenant climate control
• 11 AHU with a total of 256,000 CFM.
• 2-12,000 CFM Outdoor AHU
• 3-Cooling towers with 1016 tons capacity
• 3-Heat exchangers with 2900 GPM capacity.
• Telecommunication
• Various data and communication links
• Secure card access system
• Structural
• Reinforced concrete structure with 10 foot high
  ceiling
• The south half of the building is sitting on an
  eroding pier so the slab is a structural slab
  instead of a slab on grade.

TIMOTHY R. NOLAN
MECHANICAL
