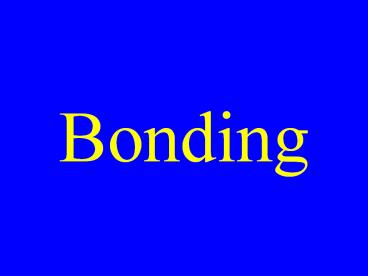

Bonding

1
Bonding
2
Types of Bonds

• Ionic
• Covalent
• Metallic

3
Metallic Bonds

• Electrons are shared by many atoms
• Electrons free to move
• Two or more metals

4
Metallic Compounds

• Generally high MP
• Hard lustrous
• Less brittle
• Conductors

5
Metallic Bonds

• No debate about metallic bonds
• Easy to identify
• Will not be discussed

6
Ionic Bonds

• Electrons are transferred from one atom to
  another creating () (-) ions
• Metal nonmetal

7
Ionic Compounds

• Held together by electrostatic charge
• Very high MP
• Brittle

8
Covalent Bonds

• Electrons are shared by two atoms
• Two nonmetals
• Weaker than ionic

9
Covalent Compounds

• Low MP
• Two nonmetals
• Flexible
• Some exceptions

10
Network Covalent or Macromolecules

• VHMP
• Extremely hard

11
Molecule

• Any compound that can exist as an entity by itself

12
Distinguishing Bonds

• Distinguishing ionic covalent bonds can be
  difficult, but generally determined by
  differenceelectronegativity

13
Bonds Types

• Ionic
• Polar covalent
• Non polar covalent

14
Bond Types

• Ionic DEN gt 2.0
• Covalent DEN lt 2.0
• Polar Covalent 0.5ltDENlt2.0
• Non polar covalent DENlt 0.5
• Nothing is absolute

15
Coordinate Covalent Bonds

• A covalent bond in which the two electrons are
  donated by one atom

16
Coordinate Covalent Bond
H3N BF3 H3N-BF3 H3N BF3
17
Dipole

• Polar bonds
• Polar molecules

18
Dipole
H F d d-
19
Ionic Bonding
-

20
Covalent Bonding
Occurs when electron orbitals overlap
21
Orbitals
On the board Max 2 e- per orbital
22
Hybridization

• When s, p, and/or d orbitals (electron clouds)
  mix to make a new type of multi-lobed orbital

23
Hybrid Orbitals

• sp dsp3
• sp2 d2sp3
• sp3

24
Electron Cloud Repulsion

• In molecules each electron cloud repels other
  clouds enough to spread as far apart as possible

25
VSEPR

• Valence Shell Electron Pair Repulsion
• Electron pairs repel each other to spread out as
  much as possible

26
Bonding OrbitalsType Hybrid VSEPR

• 2 lobes sp AX2
• 3 lobes sp2 AX3
• 4 lobes sp3 AX4
• 5 lobes dsp3 AX5
• 6 lobes d2sp3 AX6

27
VSEPR Orbitals
28
(No Transcript)
29
Bonding Orbital Shape

• 2 lobes Linear 180o
• 3 lobes Trigonal planar 120o
• 4 lobes Tetrahedral 109.5o
• 5 lobes Hexahedral 120180o
• 6 lobes Octahedral 90180o

30
Draw the Bonding Electron Dot Diagrams for Each
Element
31
Bonding Electron Dot Diagrams

• Electron dot diagrams that go through 4 singles
  before any electrons are paired up

32
1A 1 single 2A 2 singles3A 3 singles4A 4
singles 5A 1 pair 3 singles6A 2 pair 2
singles7A 3 pair 1 single8A 4 pair
33
Drill Equate each of the following

• sp3 AX2 2 lobes
• sp AX3 4 lobes
• dsp3 AX4 6 lobes
• sp2 AX5 3 lobes
• d2sp3 AX6 5 lobes

34
Lewis Dot Diagrams

• Representation of valence electrons and bonds in
  a molecule or polyatomic ion

35
Drawing LDDs
Draw the bonding electron dot diagram for each
element in the molecule with the element with the
most unpaired e- near the center
36
Drawing LDDs

• If there is more than one carbon, connect the
  carbons by connecting single dots between one
  carbon another

37
Drawing LDDs

• Connect a single dot on one atom to a single dot
  on another (never two on the same atom)(never
  connect one dot to more than one other dot)

38
Drawing LDDs

• Repeat connecting the dots until all singled dots
  are connected making sure to obey the octet rule
  if possible

39
Drawing LDDs

• Recognize polyatomic ions
• H2CO3 CO3-2 is a polyatomic ion thus, the three
  Os must connect to the C

40
Drawing LDDs

• Redraw the molecule neatly making sure to include
  all dots

41
Draw LDDs for

• BeCl2 H2O
• BF3 C2H6
• CH4 C3H6
• NH3 CH2O

42
Drawing LDDs

• Draw EDDs
• Connect Cs if multiple
• Connect single dots
• Recognize Polyatomic Ions
• Redraw neatly

43
Draw LDDs for

• H2C2O4
• C4H6

44
Draw the LDD for
C4H9NO2 C4H8N2O2
45
Coordinate Covalent Bond

• A covalent bond in which both electrons are
  donated by one atom

46
Draw LDDs for
SO4-2 SO2
47
Resonance Structures

• Equally valid Lewis Dot Diagrams for molecules or
  polyatomic ions that have the same shape.

48
O O N O
O O N O
-1
-1
49
Draw LDDs
HNO3 C4H5NO
50
Draw LDDs for

• PH3 PO3-3
• KCN C4H8O

51
Expanded Octets

• Sometimes atoms can be surrounded by more than 8
  electrons
• Columns 5A-8A

52
If more atoms are bound to the central atom than
its unpaired electrons, then split some paired
electrons
53
Example 5 things bound to P
P P
54
Hint
When drawing expanded LDDs for polyatomic ion,
adjust the charge of the central atom
55
Draw LDDs for

• PH5
• SCl5-1

56
Draw LDDs for

• PO4-3 P2O7-4
• K2SO4 C5H8O

57
Draw LDDs for
BeH2 AlCl3 SO2 CF4 NH3 H2O
58
Hybridizations

• sp 2 lobes
• sp2 3 lobes
• sp3 4 lobes

59
Bond Angles

• sp 180o
• sp2 120o
• sp3 109.5o

60
Sigma Bonds(s)

• End to end orbital overlap
• All single bonds are sigma bonds
• All multiple bonds contain one sigma bond

61
(No Transcript)
62
Pi Bonds (p)

• Side by side orbital overlap
• Multiple bonds contain p bonds

63
(No Transcript)
64
Multiple Bonds

• Double 1 s 1 p
• Triple 1 s 2 p

65
(No Transcript)
66
(No Transcript)
67
Intermolecular Forces

• Weak temporary attractions between atoms from one
  molecule to another or another part of a larger
  molecule

68
Intermolecular Forces

• Sometimes called
• Van der Waals Forces

69
(No Transcript)
70
Intermolecular Forces

• Hydrogen-bond
• Dipole-dipole
• Dipole-induced dipole
• London dispersion forces

71
Hydrogen Bond

• Strongest of the intermolecular forces
• Occurs when H is bound to one highly EN element
  connects to another

72
(No Transcript)
73
Dipole-Dipole

• When two polar molecules connect

74
Dipole-Induced Dipole

• When a polar molecule gets near a non-polar one,
  it induces the non-polar one to become polar
  thus, they connect

75
London Dispersion

• Instantaneous attraction for fractions of seconds
  in which non-polar molecules connect
• Very weak force

76
(No Transcript)
77
Draw Lewis Dot Diagram for
ICl5 Determine bond ?s, hybridization, VSEPR,
shape
78
Identify as ionic, covalent, or metallic bonds
Na-Cl Fe-Cr S-Cl H-Cl Mg-S C-C N-O Fe-Fe
79
Draw LDDs for

• HONO H3PO4
• CO2 C3H4O2

80
Draw LDDs Predict All for
CF4 NH3 BF3 CO2 SeCl4 XeF4
81
Draw LLDs Predict All For
H3PO4 ICl5 IF3 CO SeCl4 C4H6O2
82
Draw LDDs predict VSEPR, Hybridization, bond
?s, shape of
XeF4 SCl4 XeO4
83
List describe the four types of intermolecular
forces
84
Draw Lewis Dot Diagrams of
C4H5NO2
