Chapter 8 - Processes

1

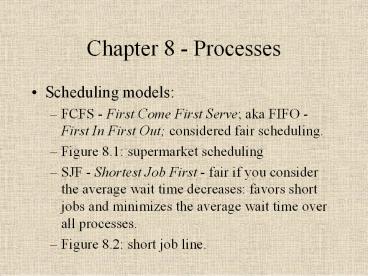

Chapter 8 - Processes

• Scheduling models
• FCFS - First Come First Serve aka FIFO - First
  In First Out considered fair scheduling.
• Figure 8.1 supermarket scheduling
• SJF - Shortest Job First - fair if you consider
  the average wait time decreases favors short
  jobs and minimizes the average wait time over all
  processes.
• Figure 8.2 short job line.

2

• Scheduling
• Highest-Response-Ratio-Next discriminates less
  against long jobs (copy room analogy)
• HRRN
• response ratio (wait time job time) / job
  time
• Pick job with highest response ratio to go next.
• The longer you wait, the better chance you get to
  go next.
• Priority scheduling Do the task with the highest
  priority first (or next). Difficult part is
  determining the priority values.
• Deadline scheduling Run the one that has to
  finish the soonest.

3

• Scheduling
• Round Robin - Take turns with the resource
  10-minute video game analogy (Figure 8.3).
• Round Robin lends itself well to preempted
  resources.
• Round Robin scheduling of processes in an
  operating system is preferred, since preemption
  of the CPU is relatively cheap.
• Preemptive Scheduling Methods
• All follow the classic process flow diagram
  (Figure 8.4) with a timer enforcing preemption.
• The Dispatcher() selects a new candidate from the
  ready queue we are interested in the selection
  method.

4

• Preemptive Round-Robin Scheduling
• Pick first process in ready queue.
• Set the timer to the time quantum or time slice
  value and let the process run.
• When timer expires, put this process at the end
  of the list and pick the next process in the
  ready queue, assigning it a time quantum, etc.
• Must select a reasonable size for the time slice.
• One model
• Include context switch overhead in time slice
• Suppose context switch time was 200 microsecs
• Can measure the time slice in units of context
  switch times 10 milliseconds 50 context
  switches 10,000 microsecs

5

• Preemptive Round-Robin Scheduling
• One model (continued)
• If time slice 1 context switch time, overhead
  for context switching is 100 percent.
• If time slice 100 context switch times,
  overhead for context switch is 1 percent.
• In general, this is 1/N percent overhead Figure
  8.5 shows the curve.
• End result bad to have a very small time slice
  bad to have a very long time slice (if
  interactive response is important).
• Could pick a target interactive response of, say,
  1/4 of a second and set the time slice to 250
  milliseconds/NumberOfProcesses.

6

• Preemptive Round-Robin Scheduling
• Under large ready queue sizes, round robin
  degrades interactive response time, since the
  wait time is a function of the size of the queue.
• Can adjust the time quantum based on the size of
  the ready queue (adaptive RR).
• Multi-level queues
• To alleviate this, the process scheduling
  algorithm can create a multi-tiered queuing
  system.
• 2 queue example any jobs (processes) in the top
  queue get scheduled before any in the bottom
  queue. A process that uses up its entire time
  slice is moved into the bottom queue (Figure 8.6).

7

• Multi-level queues
• Can extend to 3 queues that have variable
  parameters determining the job flow between the
  queues (Figure 8.7).
• Dispatcher will select a job in Queue 1, else
  Queue 2 else finally Queue 3.
• Let q1, q2 and q3 represent the time quantum per
  queue.
• Let n1 number of times a process can go through
  Queue 1 before being demoted to Queue 2. Let n2
  do the same between Queue 2 and 3.
• If n1 and q1 are infinite, FCFS.
• If n1 is infinite and q1 is finite, Round Robin.
• If n1 q1 are finite, have two-queue system
  (etc.)

8

• Multi-level queues
• The parameterization of the multilevel queues is
  an excellent example of the separation between
  policy and mechanism.
• The mechanism (the use of a three-queued system
  with parameters to control each queues behavior)
  is flexible enough to support a broad range of
  policies.
• A good operating system will provide enough
  flexibility in such things as dispatcher
  parameters to permit a particular site the
  ability to support different policies.

9

• Scheduling Problems
• The table on page 288 gives four jobs and their
  CPU time, arrival time and priority.
• Figure 8.8 shows the job scheduling for four
  algorithms (FCFS, SJF, Priority, RR w/ quantum2
  and RR with continuous zero-time context
  switches)
• Note SJF gives best average job turnaround.
• FCFS is horrible, but subject to convoy effect
  (large processes up front create large waits).
• The first RR I respectfully disagree with -- its
  RR with SJF selection (note how Job 2 runs first,
  Job 4 second, etc.)!
• The RRs, though, arent the best or worst, but
  give fair response time.

10

• Scheduling Problems
• Non-SJF RR is more realistic, since all the other
  algorithms rely on knowledge about how much CPU
  the process is going to need. This is usually
  not known!
• Can predict the next CPU burst based on past
  behavior, with a running average.
• Scheduling in Real Operating Systems
• Almost all use priority scheme.
• Preemptive.
• Equal priority jobs are scheduled Round Robin.
• Jobs migrate depending on how greedy they are,
  except for real-time processes.

11

• Scheduling in Real Operating Systems
• UNIX SVR4
• 160 Priority levels
• 0-59 timesharing/interactive
• 60-99 system processes
• 100-159 processes running in kernel mode
• Highest priority runs first ties are Round
  Robined.
• Timesharing priorities goes down if it chews up
  entire time quantum can go back up if it blocks
  on an event or waits in the ready queue for a
  long time.
• Time quanta range from 100 milliseconds (priority
  0) to 10 milliseconds (priority 159?)

12

• Scheduling in Real Operating Systems
• Solaris
• Similar to SVR4
• Adds 10 more priority levels (160-169 for
  interrupt handlers).
• Shorter time quanta from 4 to 20 milliseconds.
• Priority inheritance - a process with a lock will
  inherit the priority of a process blocked on the
  lock. Prevents priority inversion -- the
  starvation of a chain of processes that have
  different priorities.
• OS/2 version 2.0
• 128 priority levels in 4 classes (time critical,
  server, regular and idle classes).
• Time quanta 32 to 248 milliseconds.
• Interactive, freshly-unblocked waiting
  priorities increase

13

• Scheduling in Real Operating Systems
• Windows NT 3.51
• Priority thread scheduler with 32 levels in two
  classes (real-time time-sharing threads).
• Priorities can increase due to I/O (disk,
  keyboard, mouse, etc.) and decrease due to CPU
  usage.
• Mach
• 128 priority levels
• Hands-off scheduling a receiver blocked on a
  message will get scheduled immediately,
  regardless of the scheduling queues.
• Linux
• Three scheduler algorithms RR FIFO (used in
  real time applications) and OTHER based on POSIX
  work.
• See man sched_setscheduler for more information.

14

• Deadlock
• Situation where two or more processes are each
  waiting for a resource that another process in
  the group holds.
• Figure 8.9 illustrates deadlock this is an
  example of a resource allocation graph
• Arrows FROM process TO resource indicate a
  resource request.
• Arrows TO process FROM resource indicate an
  allocated resource.
• In this case, a cycle exists with no other
  resource instances, thus deadlock exists!
• Similar deadlock exists with 2-process
  Send()/Receive() cycle 4-process cycle.

15

• Deadlock
• Conditions necessary for deadlock to occur
• 1. Resources are not preemptable.
• 2. Resources cannot be shared.
• 3. A process can hold one resource request
  another.
• 4. Circular wait is possible (a cycle exists in
  the request/allocated graph)
• Dealing with deadlocks (3 techniques)
• Prevention place restrictions on resource
  requests so that deadlock cannot occur.
• Avoidance Pretend to allocate the resource, run
  an avoidance algorithm that detects cycles, dont
  permit the allocation if deadlock possible.
• Recovery Let deadlock happen recover from it.

16

• Deadlock Prevention
• Involves breaking one of the four necessary
  conditions
• 1. Allow preemption. Not always possible (how to
  preempt a printer, tape drive, or other
  non-shareable resource?)
• 2. Avoid mutual exclusion Create virtual
  instances, where each processes has the illusion
  of mutex (again, not always possible).
• 3. Avoid Hold Wait One technique is to force
  processes to acquire all their resources at one
  time, preventing any future waiting. This is
  inefficient and a process may not always know
  what its future needs are.

17

• Deadlock Prevention
• 4. Avoid circular wait One technique is to
  prioritize resource usage by assigning a unique
  positive integer to a resource a process can
  only request resources in numerically increasing
  order. Good solution, but can still lead to
  inefficient usage of resources.
• Deadlock Avoidance
• Before a resource allocation is granted an
  algorithm is executed that pretends to perform
  the allocation and then detects cycles. A
  classic example is the Bankers Algorithm (used
  by banks to make sure they have enough money to
  cover a loan, for instance).
• Unfortunately, execution of deadlock avoidance
  algorithms is computationally expensive (O(n2)).

18

• Deadlock Avoidance
• Another problem is that algorithms like the
  Bankers Algorithm only work if a process knows
  the maximum number of each type of resource
  before beginning execution.
• Deadlock Recovery
• 2 steps detect the deadlock first, then figure
  out how to untangle the resource allocations to
  arrive at an undeadlocked state.
• Deadlock detection algorithms are similar to
  deadlock avoidance algorithms, which means they
  are also computationally expensive, but at least
  they dont have to be invoked at each resource
  request.

19

• Deadlock Recovery
• Deadlock detection recovery is optimistic
  assumes no deadlock will occur. VMS uses a timer
  of 10 seconds after a resource request is
  started. If when the timer goes off the request
  is still not granted then the deadlock
  detection/recovery algorithm is invoked.
• Recovery from the deadlock can involve a number
  of techniques
• Rollback - return a process back to an earlier
  point in execution before the deadlock occurs
  perhaps a future allocation will avoid the
  deadlock. This is an expensive proposition!
• Process termination - kill one or more processes
  until the deadlock is broken.

20

• Six approaches to the deadlock problem (from
  extreme to liberal)
• Never grant resource requests!
• Serialize process executions (one process at a
  time only)!
• One-shot allocation - a process must request all
  its resources at once.
• Hierarchical allocation - a process must request
  resources in a known order.
• Advance claim - a process must indicate its
  maximum requests at one time (needed for deadlock
  avoidance algorithm, such as the Bankers
  algorithm).
• Always allocate hope detect/recover works!

21

• Interesting that a number of operating systems
  choose to not bother with deadlock
  prevention/avoidance/recovery at all! This may
  explain machine hangs that occur now then the
  cost of any deadlock algorithm far outweighs the
  frequency of actual deadlocks.
• Two-phase locking
• Common database method for record access that
  avoids deadlock.
• 1st phase locking phase process will attempt
  to lock a record or set of records for update
  can only hold these set of locks (thus, no
  Hold/Wait).

22

• Two-phase locking
• 2nd phase changing phase database records are
  actually updated at this time since no other
  locks are permitted to be acquired, no deadlock
  is possible. All locks are released when this
  phase is complete.
• Starvation
• Case where a process may never get to proceed due
  to an inefficient allocation algorithm or unfair
  deadlock algorithm (aging can solve starvation).
• Random scheduling or even FCFS (DAT CDROM
  example) can cause process resource starvation.
• Solutions to the deadlock problem can make
  starvation more likely and solutions to the
  starvation problem can make deadlock more likely!

23

• Message-passing variations
• Some useful lessons come out of tweaking the
  basic message passing SOS system calls.
• First variation rather than have anonymous
  message queues that any process can send/receive,
  have messages go directly to a process via the
  processes PID. Note this is less flexible -
  Figure 8.10 (a).
• Second variation Message passing with
  non-blocking receives. What if you want to be
  able to receive from multiple queues? The
  original ReceiveMessage() call only allowed you
  to look at one queue at a time it would block
  the caller if a message wasnt available. If we
  make the system call non-blocking, then the
  process can poll.

24

• Message-passing variations
• Call this new variation ReceiveMessageNoWait()
  and have a return value indicate there is no
  message on the queue. Problem now becomes one of
  much busy waiting as the receiver polls multiple
  queues in a loop (Figure 8.11 (b)).
• Can create children to handle each queue you want
  to receive on using traditional blocking (Figure
  8.11 (a)).
• Can create a new system call that permits a
  process to block waiting for a SendMessage() on
  multiple queues (Figure 8.11 ltcgt). In most
  UNIXes, this is done via the select() system call
  (see man -s 3c select on xi).

25

• Message-passing variations
• The next variation works on the sender. Make the
  SendMessage() system call block waiting for a
  receiver (no need for queues)!
• Can extend the client-server model of
  communication to Send Receive
• Client sends a message to the server
  (SendMessage()) and blocks.
• Server receives the messages (ReceiveMessage()).
• Server sends a reply to the client (SendReply()),
  which unblocks the client.
• Figure 8.12 illustrates this.
• Receiver is blocked until the SendMessage()
  sender is blocked until the SendReply().

26

• Message passing with blocking sends
• To re-iterate, heres the steps (from page 302)
• 1. Sender calls SendMessage() and blocks.
• 2. Receiver calls ReceiveMessage().
• 3. Message is transferred directly from the
  senders buffer to the receivers buffer (no
  intermediate message queue is used).
• 4. Receiver handles the message.
• 5. Receiver calls SendReply(). Message reply is
  copied from the receivers buffer directly into
  the senders buffer.
• 6. Sender is unblocked.

27

• Remote Procedure Calls
• The SendMessage/ReceiveMessage/SendReply
  mechanism is similar to a procedure call made
  between two processes. The next logical
  variation is to extend this mechanism to RPC
  (Figure 8.13)
• Client makes an RPC call.
• Client-side stub turns it into a message to a
  server.
• Server-side stub calls the actual procedure on
  the server.
• The real procedure performs the work.
• The server-side stub sends the result back in a
  message to the client.
• The client-side stub receives the result message.
• The client-side stub returns to the RPC caller.

28

• Remote Procedure Calls
• Advantages to RPC easily understood by
  programmers, supports typed data types for better
  error checking.
• Implementation issues with RPC
• How are the calling and returning arguments sent?
  Cant pass pointers must pass the entire
  object! Suns RPC mechanism uses XDR (see man
  xdr) to translate machine differences in data
  type encodings between heterogeneous machines.
• How do you connect a client with a particular
  server? Must have some sort of RPC registration
  system Suns RPC uses a flat file (/etc/rpc on
  xi) as well as a background daemon process
  (rpcbind on xi) and a public method for
  displaying RPC mappings (try rpcinfo on xi).

29

• Remote Procedure Calls
• More implementation issues with RPC
• Another popular RPC system is used within the
  Distributed Computing Environment (DCE).
• How to handle errors? What if messages get lost
  between client and server?
• RPC libraries - common set of routines that dont
  require reinventing the wheel for RPC
  programmers.
• RPC is the backbone of a number of network
  services. Suns RPC is used, for instance, to
  support the Network File System (NFS), which is
  how your home directories are shared between
  machines.
• DCE also uses RPC heavily.

30

• Synchronization
• A process waits for notification of an event that
  will occur in another process.
• The IPC patterns in Chapter 7 were examples of
  synchronization patterns.
• We will concentrate on just the mutual exclusion
  (mutex) style of IPC, since it presents unique
  problems.
• Page 305 In signaling, one process waits for
  another process to do something (signal an event)
  and in mutual exclusion, one process waits for
  another process to not be doing something (not be
  in its critical section).

31

• Synchronization
• Signaling is the most basic form of process
  cooperation and mutex is the most basic form of
  process competition.
• Figure 8.14 nice table of different styles of
  synchronization found in the book.
• Race conditions can exist in O/S code as well as
  user code. A common technique for enforcing
  serialization in O/S code is via disabling
  interrupts or using spin locks. These are too
  extreme for user-level programs, so we use
  semaphores and monitors to create critical
  sections and prevent race conditions.

32

• Semaphores
• Semaphore Solves both the signaling and mutex
  problems.
• SOS We will use an integer value to name a
  semaphore. The values are global (e.g., SID 4
  is the same semaphore for all process).
• New semaphore SOS calls
• int AttachSemaphore(int sema_gid) - Attach this
  process to the global semaphore specified by
  sema_gid. Return a local identifier to be used
  in later semaphore calls. The first call using
  sema_gid will create the semaphore and set its
  state to busy.
• int Wait(int sema_id) - If the semaphore
  specified by local identifier sema_id is not busy
  then set it to busy and return. If the semaphore
  is busy, block the calling process on the
  semaphores wait queue.

33

• Semaphores
• New semaphore SOS calls
• int Signal(int sema_id) - If the wait queue of
  the specified ID is empty, set the state of the
  semaphore to not busy. If the wait queue is not
  empty, remove some process from the queue and
  unblock that process.
• int DetachSemaphore(int sema_id) - indicate to
  the operating system that this process no longer
  is using sema_id.
• These are binary semaphores, meaning they are
  either busy or not busy. Pseudo-code for their
  implementation is on page 310. To work, Wait()
  and Signal() must be atomic (allowed to execute
  completely before the process is switched out).

34

• Semaphores
• Analogy bathroom key at a gas station! Only one
  key, thus only one person allowed at a time in
  bathroom. Many may wait for the key )
• Using semaphores instead of Message Queues to
  solve IPC patterns
• Two process mutex with semaphores (page 311).
• Two process rendezvous with semaphores (page
  312).
• 1 Buffer Producer/Consumer with semaphores (page
  312-313).

35

• Counting Semaphores
• The semaphore is a counter rather than a binary
  flag.
• Permits more complex process synchronization,
  like allowing more than one process at a time
  into the critical section.
• Page 313/314 show pseudo code for Wait()/Signal()
  using counting semaphores.
• Page 314/315 show Producer/Consumer with N
  buffers.
• Notice how the synchronization and data transfer
  is decoupled using semaphores, unlike using
  message queues. Semaphores are easier to
  implement, however. Threads commonly use
  semaphores.

36

• Using semaphores is logically equivalent to
  sending/receiving empty messages, without the
  overhead of managing message queues.
• Message are more appropriate for IPC between
  processes that do not share memory.
• Semaphores are more appropriate for IPC between
  processes (or more likely threads) that do share
  memory.
• Implementing Semaphores
• Pages 316 through 319 provide changes to support
  counting semaphores in SOS. Easily applicable to
  JavaSOS!

37

• Using semaphores in SOS
• Semaphores are used to create critical sections
  around SOS kernel code that uses shared data,
  such as
• Accessing the process table in SelectProcessToRun(
  ).
• Accessing the disk request queue in DiskIO(),
  ScheduleDisk() and the disk interrupt handler.
• Monitors
• Monitors are an example of synchronization added
  to a programming language, rather than having to
  be explicitly programmed via system calls.
• Monitors fit naturally into languages that
  support modular/abstract data types.
• This type of monitor is not something you connect
  to the video adapter of a computer!

38

• Monitors
• A monitor is a programming language module with
• variables - usually private variables.
• condition variables - used for signaling inside
  the monitor.
• Procedures - public procedures callable from
  outside the monitor.
• The monitor ensures that only one procedure at a
  time within the monitor module can be called at a
  time. It, by definition, provides mutual
  exclusion.
• Besides mutex, monitors provide signaling through
  their condition variables.
• Condition variables have two operations allowed
  on them -- wait and signal.

39

• Monitors
• Note that the semantics of wait and signal are
  different than for semaphores Wait() and
  Signal().
• A condition variable wait will cause a process to
  block automatically.
• A condition variable signal will unblock all the
  processes that are waiting on the condition
  variable.
• CVs do not count or keep a busy/non-busy flag as
  semaphores do if signal is called on a CV 10
  times and then a process waits on the CV it will
  still block. A wait waits for the next signal
  call.
• Unlike semaphores, a process that calls a CV wait
  gives up the lock on the monitor.

40

• Monitors
• The behavior of CV wait and signal becomes
  clearer after going through the signaling monitor
  code (pages 324-325) as well as the monitor
  solution to the Producer/Consumer problem (pages
  325-326).
• One could even implement semaphores as a monitor,
  assuming no O/S-level support for semaphores was
  available yet you had a language that supported
  monitors (page 327-328).
• Note that CVs are not used soley in monitors.
• Section 8.19.2 (Synchronization primitives in
  Ada95) is not covered.
• Neither is section 8.20 (message-passing design
  issues).

41

• IPC in Mach
• Interesting IPC structure that has influenced OS
  design.
• Mach task traditional process (at least one
  thread plus memory objects, etc.).
• Mach port message queue variation
• Only one task can receive messages on a port, but
  any task can send a message to a port.
• Children can inherit ports.
• Messages are sent down ports. Messages can be
  either
• Data
• Out-of-line data - pass part of the senders
  address space to the receiver.
• Ports - can pass port addresses back and forth.

42

• IPC in Mach
• Mach is object-oriented.
• A Mach port represents an object.
• You perform operations on an object by sending
  messages to the port that represents the object.
• IPC and Synchronization Examples
• UNIX signals are used to indicate many possible
  events between processes see man -s 5 signal
  on xi for a complete list of events.
• Users can install their own signal handlers via
  the signal() system call.

43

• IPC and Synchronization Examples
• SVR4 UNIX implements UNIX signals, semaphores,
  semaphore arrays, message queues, shared memory.
• Windows NT
• alerts asynchronous procedure calls provides a
  signaling mechanism.
• LPC (Local Procedure Call) mechanism used for
  message passing.
• Standard RPC, named pipes are available for
  network communication.
• Spin locks are used for multiprocessor
  synchronization.
• Range of sync. primitives (threads can wait on
  I/O completion or on another thread exit binary
  semaphores general semaphores general events).

44

• IPC and Synchronization Examples
• OS/2 Shared memory, binary semaphores, general
  semaphores, message queues, signals pipes.
• Solaris binary semaphores (mutexes), general
  semaphores, special reader/writer lock,
  nonblocking locks, condition variables that can
  be used with mutexes to wait for arbitrary
  conditions.
