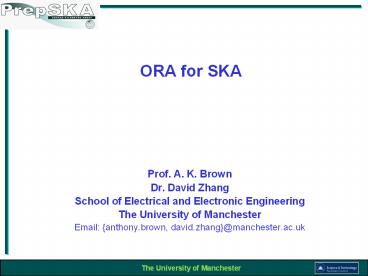

ORA for SKA

1
ORA for SKA

• Prof. A. K. Brown
• Dr. David Zhang
• School of Electrical and Electronic Engineering
• The University of Manchester
• Email anthony.brown, david.zhang_at_manchester.ac.
  uk

2
Outline

• A brief review of ORA aperture array antenna
  design at the end of SKADS
• AA-mid Antenna design for PrepSKA
• Discussions and near future plans

3
Aperture Array Antennas
FLOTT (a)(d) BECA (b)(e) ORA (c)(f)
4
(No Transcript)
5
Three candidate designs for SKADS (1616 finite
arrays)
BECA
ORA
FLOTT
(Photo Courtesy SELEX Galileo)
6
Active reflection coefficient
7
Cross polarisation in the intercardinal plane at
1 GHz, based on the finite array measurement
D-plane 45o Cut
8
Scanned element pattern for the centre element of
the finite array
E-plane, 0o Cut
H-plane 90o Cut
9

• Change of Frequency Range
• LNA integration and feeding methods for ORA
• The ORA finite array analysis
• Measurement-noise temperature of integrated
  structure
• Manufacturability

10
The infinite ORA array with 125mm element
separation
11
The infinite ORA array with 112 mm element
separation
12
108mm separation
13
The feeding methods for ORA
14
The optimisations of the feeding lines for a
lower loss
2
3
1
LNA close to the radiators
For LNA wiring
Coaxial cable for single-ended feeding
LNA above the groundplane
LNAs below the groundplane, but using coaxial
cables for single-ended feedings
Shorter coaxial cables for single-ended feedings
LNAs above the groundplane
15
Single-ended and differential feeding methods
The single-ended stripline
Differential coaxial cable feeding
16
ORA performance with 50ohms stripline feed, 112mm
17
ORA performance with differential coaxial cable
feeds, 112mm element spacing
18
Single-ended Stripline feed for the 55 subarray
of the 1010 finite array tile
The active reflection coefficient
19
Differential feeding method, passive reflection
coefficient measured
Element 13
Element 1
20
Integration with EMBRACE front-end electronics
for further investigation
21
ORA tile for EMBRACE electronics integration

• The element separation of 125 mm
• 70 ohms single-ended port for each element
• The coverage area of the tile 1.125 m2

22

• Efficiency measurements
• Complete LNA integration and measure combined
  noise temperature
• Manufacturability design
• EMBRACE compatible tile
• Final choice of LNA type and optimise ORA for mid
  frequency array
• Build and test
• Pre-production manufacturing techniques

23
Noise measurement of the active ORA finite array
Sub-array becomes active with power splitters
A hot/cold measurement facility is under
construction in JBO, the measured results out of
this for the finite ORA arrays will be confirmed
at THACO in ASTRON
24
Further investigation of ORA tile with the
EMBRACE electronics ?
25
The manufacturing cost investigation
Chemical etching A traditional
photo-lithographic technique on PTFE/woven glass
laminate
Ink-jet printing A catalyst is ink-jet
printed onto the plastic film, and then copper is
electro-formed onto the catalyst, a further
electroplating process is required
Screen printing and other technics?
26

• Efficiency measurements
• Complete LNA integration and measure combined
  noise temperature
• Manufacturability design
• EMBRACE compatible tile
• Final choice of LNA type and optimise ORA for mid
  frequency array
• Build and test
• Pre-production manufacturing techniques
